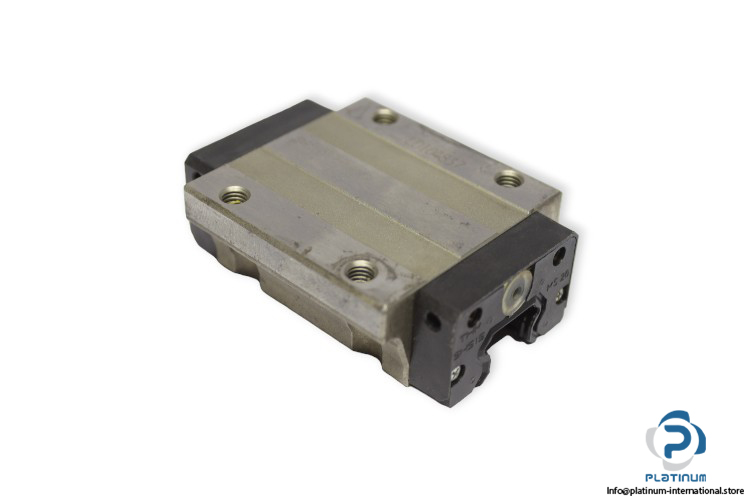

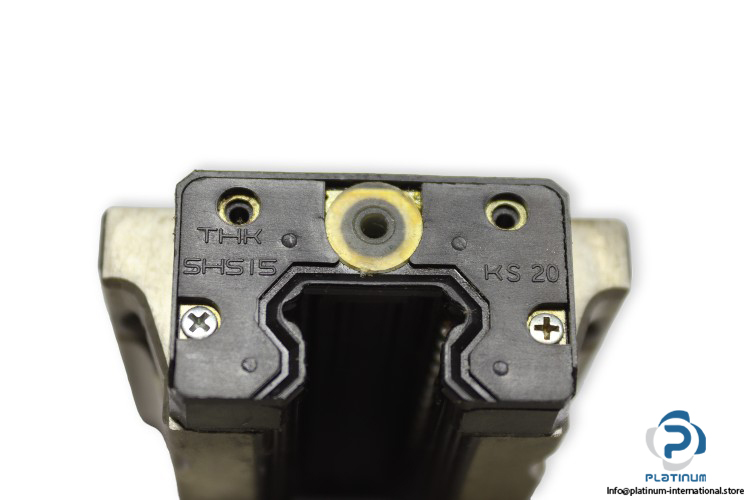

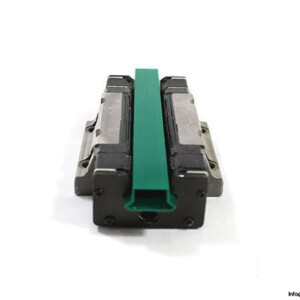

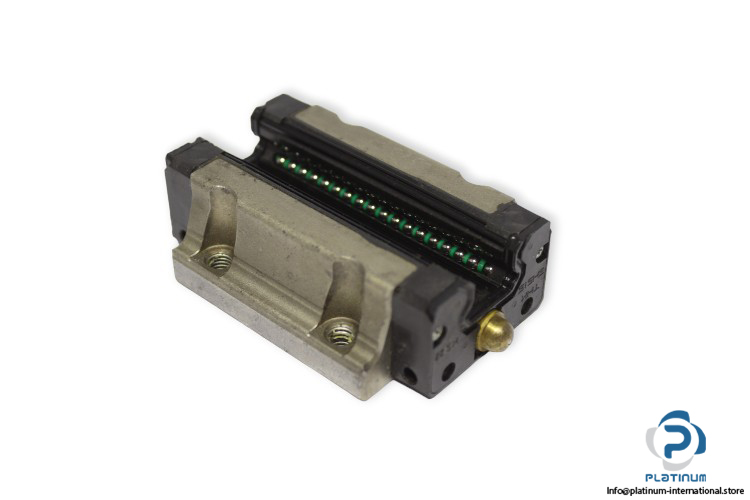

THK SHS 15C Linear Guide Rail Block

Manufacturer: THK
Type: Linear Guide Rail Block
Model: SHS 15C

Block Type: C
The flange of the LM block has tapped holes.Can be mounted from the top or the bottom.Used in places where the table cannot have,through holes for mounting bolts

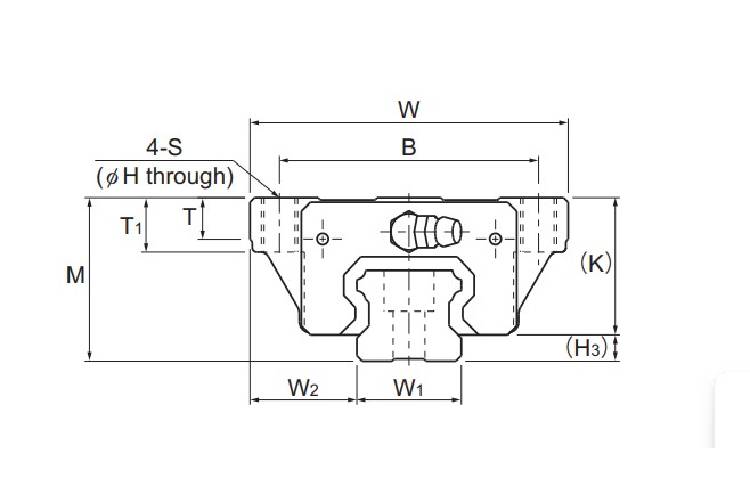

Outer dimensions:
Total Height M: 24 mm
Block Width W: 47 mm
Block Length L: 64.4 mm
LBC block dimensions:
Height K: 21 mm
B: 38 mm
C: 30 mm
L1: 48 mm
W1: 15 mm
Basic Load Rating:
Dynamic C: 14.2 kN
Static C0: 24.2 kN

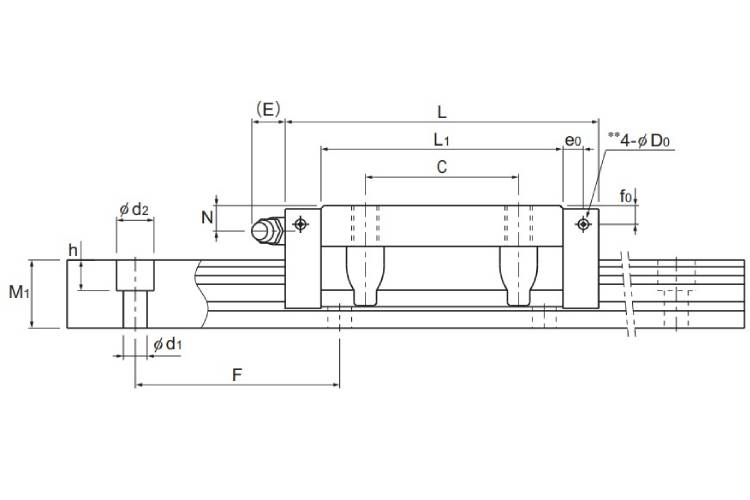

Mounting Dimensions:
Grease Nipple: PB1021B
