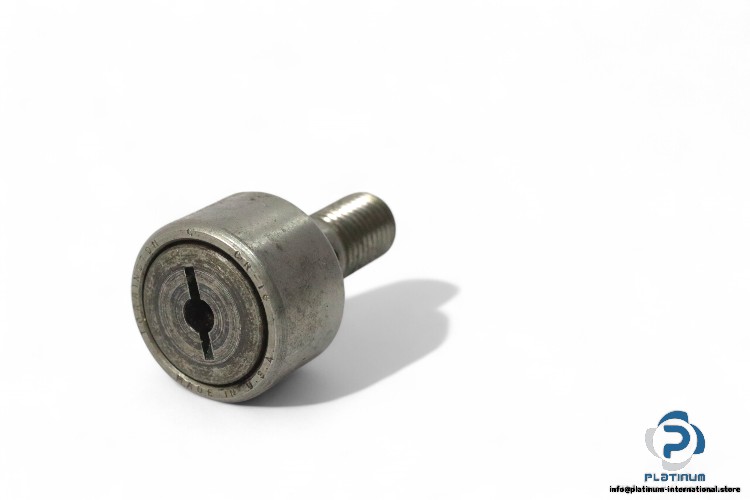

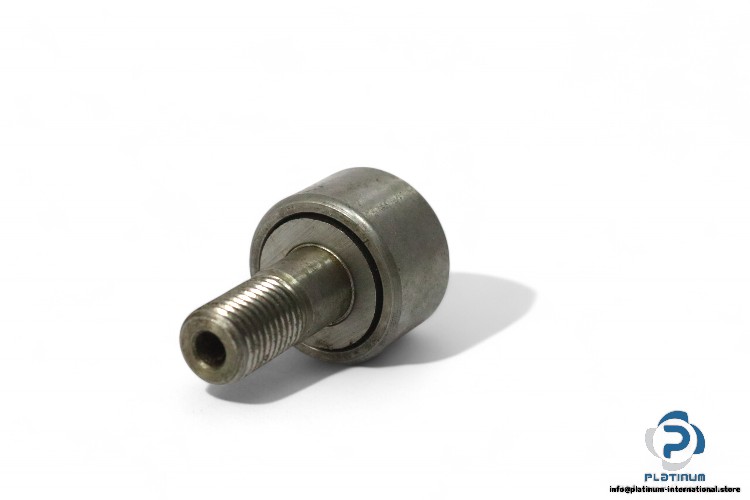

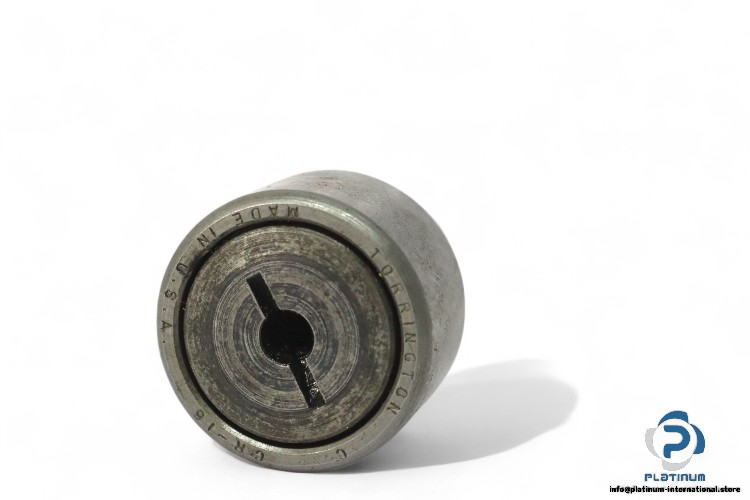

Torrington CR-16 Stud Type Track Roller

Name: TORRINGTON CR-16 STUD TYPE TRACK ROLLER
SKU: 1057455
Availability: LimitedAvailability

torrington-CR-16-stud-type-track-roller-(used)

torrington-CR-16-stud-type-track-roller-(used)-1

torrington-CR-16-stud-type-track-roller-(used)-2

torrington-CR-16-stud-type-track-roller-(used)-3

Usado

Em estoque3 unidadesPronto para envio

Fabricante: Torrington Tipo: ROLAMENTO DE TRILHO TIPO STUD (CR) Modelo: CR-16

Fabricante

TORRINGTON

SKU

1057455

Categoria

Cam Followers

Condição

Usado

16 bearings Cam Followers inch Stud Torrington track Type

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

Manufacturer: Torrington
Type: STUD TYPE TRACK ROLLER (CR)
Model: CR-16

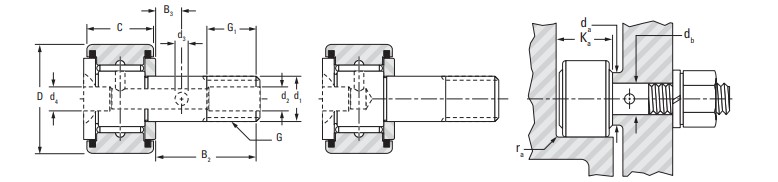

Dimensions
Outside diameter D: 25.40 mm , 1 inch
bore diameter for Stud d1: 11 .11 mm , 0.4375 inch
d3: 2.39 mm , 0.094
C: 15.88 mm , 0.625 inch
B2: 25.40 mm , 1 inch
B3: 6.35 mm , 0.250 inch
Basic load ratings As bearing:
Dynamic C: 13.3 kN , 2980 lbf
Static C₀: 22.3 kN , 5010 lbf
C w Dynamic (Track roller): 8.94 kN , 2010 lbf
Fr Dynamic: 6.05 kN , 13.60 lbf
Fr Static: 14.5 kN , 3260 lbf
Speed rating Grease: 3000 1/min
Rolling elements: Needle rollers
Design: Regular stud-type, full complement needle rollers, inch series
