WEG 184TD Electric Motor
Usado
Em estoque1 unidadePronto para envio
motor elétrico O motor elétrico WEG 184TD fornece 3,7 kW de potência, operando a 3485 RPM a 60 Hz e 2850 RPM a 50 Hz com proteção IP55, ideal para aplicações industriais.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
WEG ELECTRIC MOTOR
The WEG Electric Motor (Model: 184TD) is designed for high performance and reliability in industrial applications. With a rated power of 3.7 kW, this motor operates efficiently at both 60 Hz and 50 Hz, offering a high power factor and consistent performance across varying voltages and speeds. Its robust construction with IP55 protection ensures durability in harsh environments.
Manufacturer: WEG
Type: Electric Motor
Model: 184TD

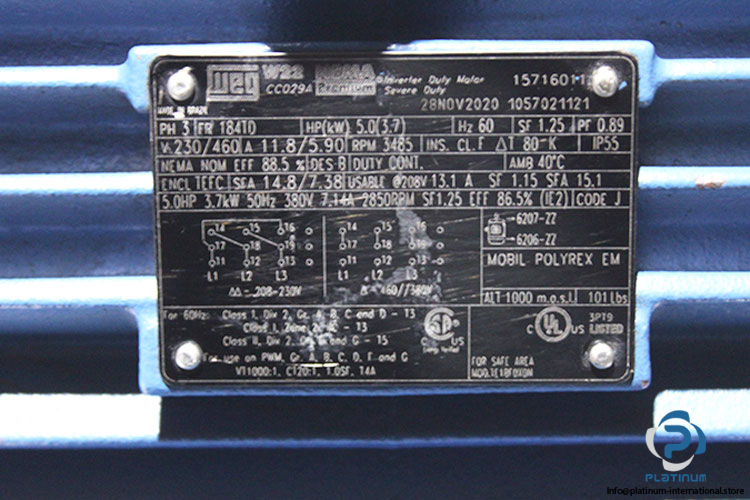

Technical Specifications
At 60 Hz:
- Rated Voltage: 230 / 460 V
- Rated Speed: 3485 RPM
- Rated Power: 3.7 kW
- Power Factor: 0.89
- Rated Current: 11.8 / 5.90 A
At 50 Hz:
- Rated Voltage: 380 V
- Rated Speed: 2850 RPM
- Rated Power: 3.7 kW
- Rated Current: 7.14 A
- Power Factor: 0.89
- Insulation Class: F
- Protection: IP55
- Ambient Temperature: 40 °C
