Sick CLV440-6010 Fixed Mount Barcode Scanner
Новинка
В наличии1 единицаГотово к отправке
Промышленный стационарный сканер штрих-кода SICK с динамическим управлением фокусом, видимой красной лазерной технологией и увеличенной дистанцией считывания до 510 мм для автоматизации и логистики.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

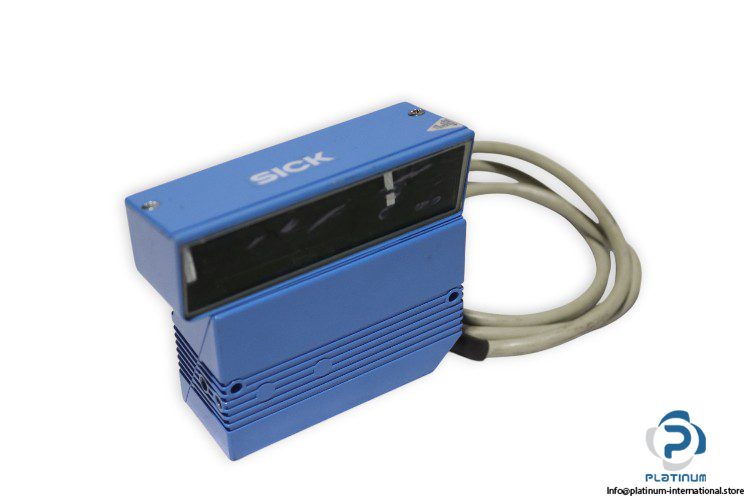

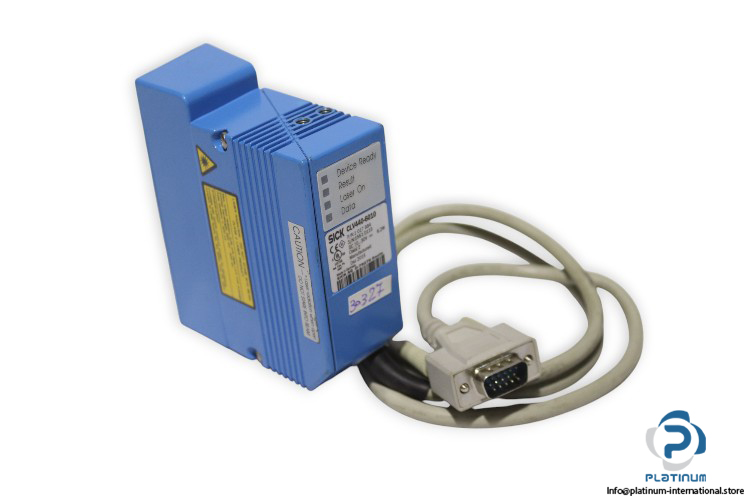

SICK CLV440-6010 Fixed Mount Barcode Scanner
The SICK CLV440-6010 is a fixed mount barcode scanner designed for reliable code detection in industrial automation and logistics systems. This high-performance line scanner uses visible red laser technology with dynamic focus control, enabling accurate barcode reading across multiple distances and operating conditions.
Manufacturer: SICK
Type: Fixed Mount Barcode Scanner
Model: CLV440-6010
Part No.: 1017984
Serial No.: 15510115
| Class | 2 |
| Version | Standard Density |
| Connection Type | Standard |
| Reading Field | Line Scanner |
| Optical Focus | Dynamic Focus Control |
| No. Of Distance Configurations | 8 |
| Focus Adjustment Time | 50 ms |
| Focus Trigger Source | Switching Input œSensor 2 / Serial Interface / Timer |
| Light Source | Visible Red Light (650 nm) |
| Laser Class | 2 (DIN EN 60825-1) |
| Aperture Angle | 50° |
| Reading Distance | 40 mm ... 510 mm |
| Scanning Frequency | 300 Hz ... 800 Hz |
| Code Resolution | 0.2 mm ... 1 mm |
| Oscillating Mirror Functions | Fixed (Adjustable Position), Oscillating (Variable Or Fixed Amplitude), One Shot |
| Oscillation Frequency | 0.5 Hz ... 4 Hz |
| Angle Of Deflection | “20° ... 20° (Adjustable Via Software) |

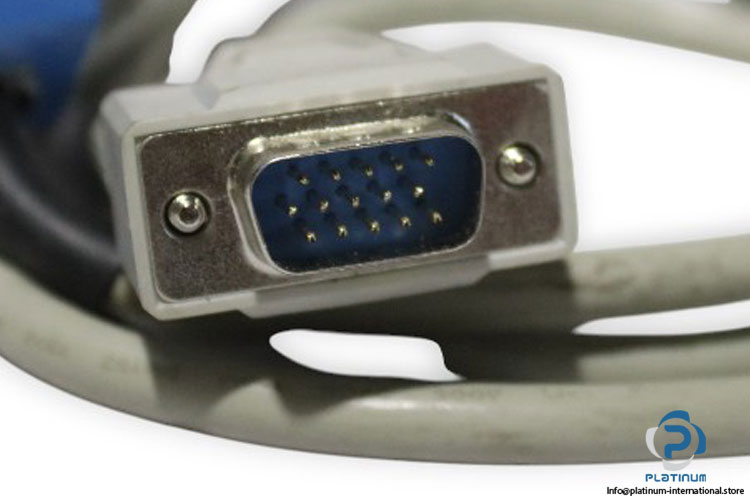

| Connection Type | 1 x 15-pin D-Sub HD Male Connector (0.9 m) |
| Supply Voltage | 10 V DC ... 30 V DC |
| Power Consumption | 6.2 W |
| Housing Material | Die-Cast Zinc, Does Not Contain Paint Wetting Impairment Substances |
| Housing Color | Light Blue (RAL 5012) |
| Enclosure Rating | IP65 (EN 60529 (1991-10)) A1 (2002-02) |
| Protection Class | III (EN 61140 (2002-03)) |
| Connecting Cable | Included |
| Dimensions (L x W x H) | 99.8 mm x 92.2 mm x 35.7 mm |
| Print Ratio | 2:1 ... 3:1 |
| No. Of Codes Per Scan | 1 ... 20 (Standard Decoder) / 1 ... 6 (SMART Decoder) |
| No. Of Codes Per Reading Interval | 1 ... 50 (Auto-Discriminating) |
| No. Of Characters Per Reading Interval | 500 |
| No. Of Multiple Readings | 1 ... 99 |
| Digital Inputs | 2 (œSensor 1, œSensor 2) |
| Digital Outputs | 2 (œResult 1, œResult 2) |
| Reading Pulse | Reflector Polling, Switching Input œSensor 1, Non-Powered, Serial Interface |

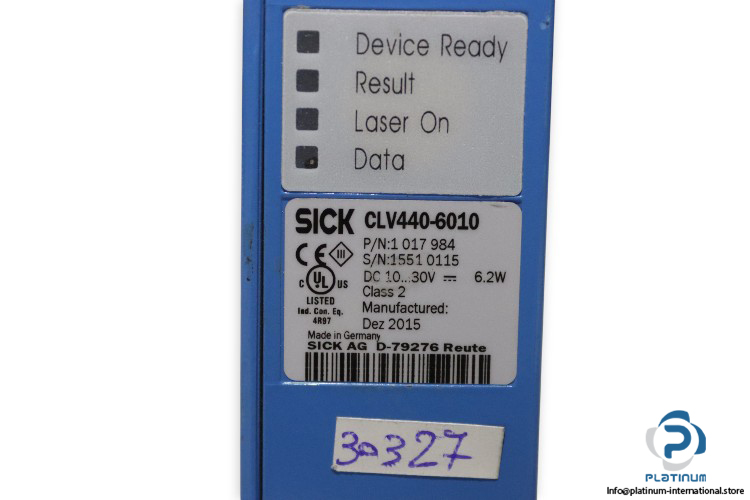

| Optical Indicators | 4 LEDs (Function Indicator) |
| Acoustic Indicators | Beeper/Buzzer (Can Be Switched Off, Can Be Allocated As A Result Indication Function) |
| Electromagnetic Compatibility (EMC) | EN 61000-6-2 (2001-10) / EN 61000-6-4 (2001-10) |
| Vibration Resistance | IEC 60068-2-27 (1993) |
| Shock Resistance | IEC 60068-2-6 (1995) |
| Ambient Operating Temperature | 0 °C ... +40 °C |
