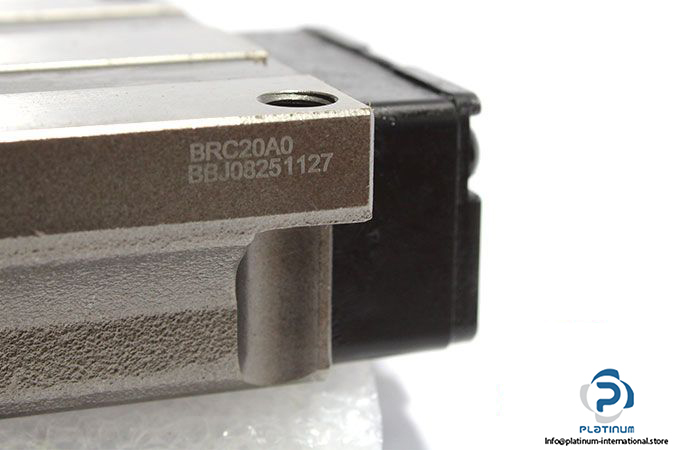

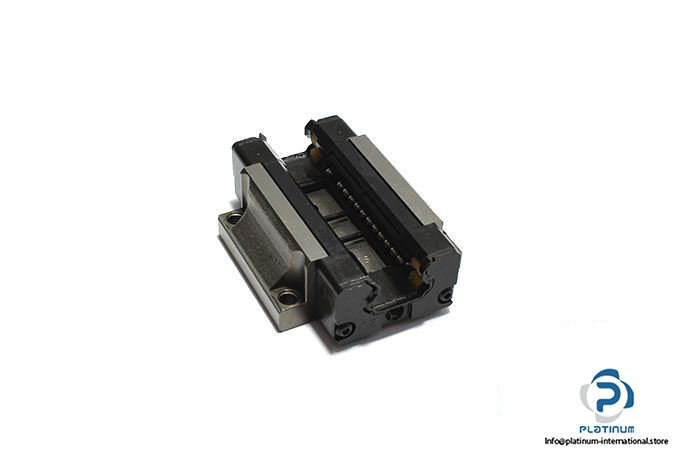

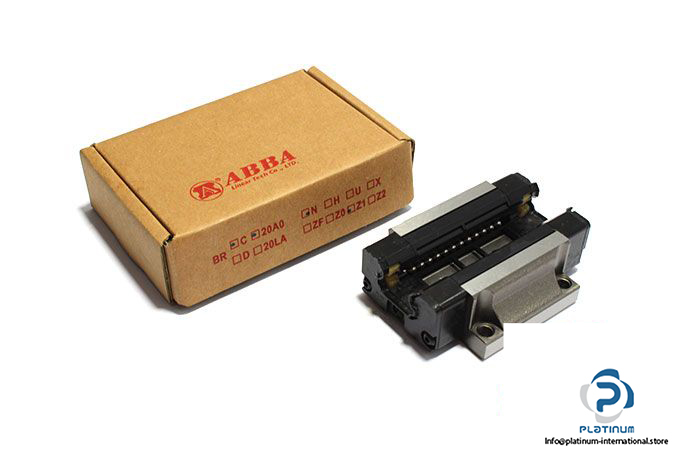

Abba BRC20A0 Linear Guideway Block
Manufacturer: ABBA
Type: Linear Guideway Block BRC
Model: BRC 20 A0
Size: 20 mm
Block Type: Flanged block, Standard length, Standard height
Preload class: Z1, Light preload
Accuracy class: N
End Cap Type: End cap with Self-lubricant part
Basic Load Ratings:
Dynamic C: 1400 kgf
Static C0: 2400 kgf

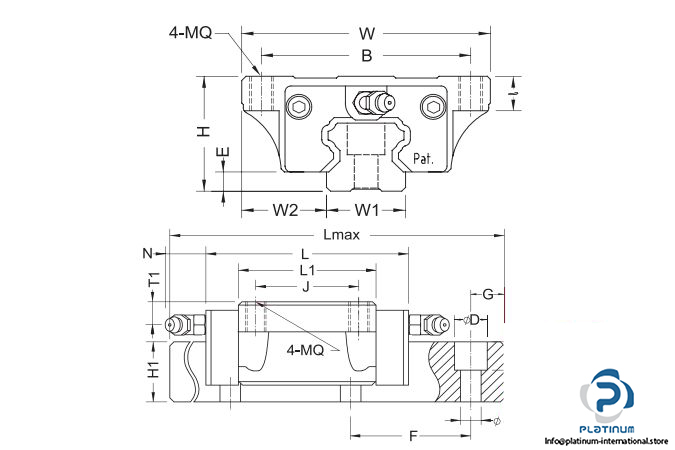

Dimensions
Total Height H: 30 mm
Block Width W: 63 mm
Block Length L: 77.8 mm
Weight: 0.42 kg
