Aeco SC30M-CE25 PNP No+Nc K Capacitive Sensor
Yeni
Stokta1 birimSevkiyata hazır
Ayarlanabilir 0“25 mm algılama menziline sahip AECO kapasitif sensör, PNP NO+NC çıkış ve endüstriyel otomasyon uygulamaları için dayanıklı nikel kaplı pirinç muhafaza.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

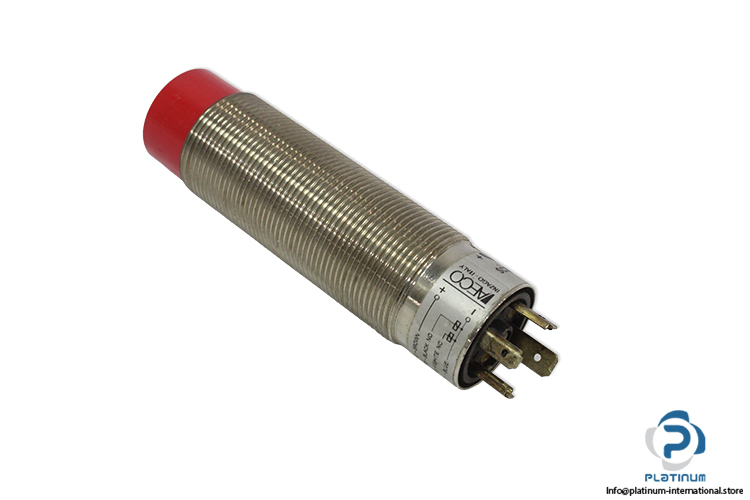

AECO SC30M-CE25 Capacitive Sensor
The AECO SC30M-CE25 capacitive sensor is designed for reliable non-contact detection of solid and liquid materials in industrial automation applications. With an adjustable sensing range and dual PNP output (NO + NC), it offers flexible integration and stable performance in demanding environments.
Manufacturer: AECO
Type: Capacitive Sensor

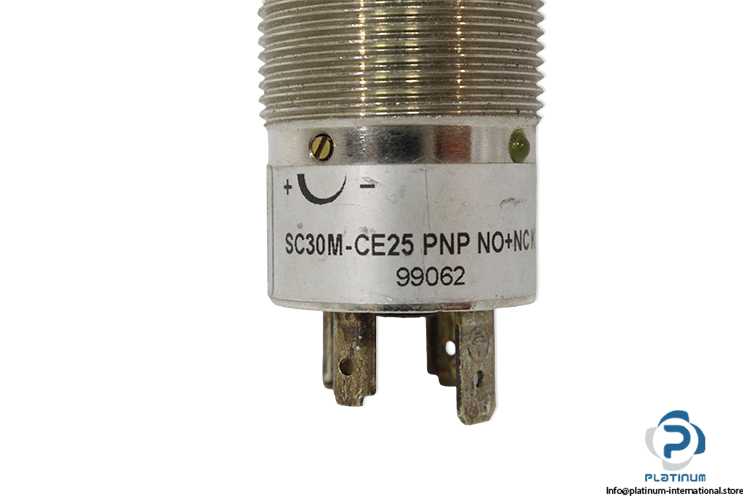

Model: SC30M-CE25 PNP NO+NC K
Part No.: 99062
| Series | SC30M |
| Sensing Range | 0 / 25 mm (Adjustable) |

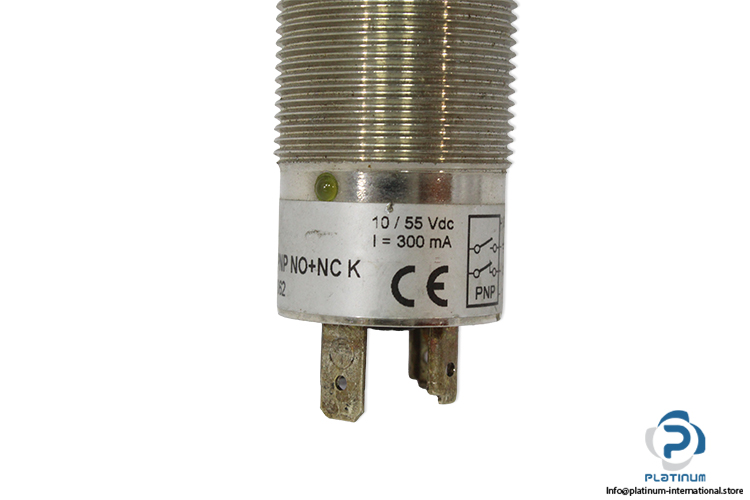

| Rated Supply Voltage (Us) | 10 / 55 V DC |

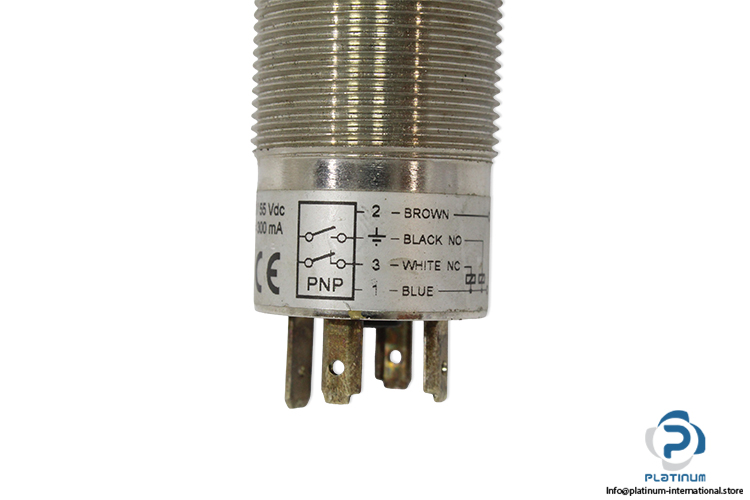

| Switching Output | PNP Normally Open (NO) + Normally Closed (NC) |
| Switching Output Current | 300 mA |
| Electrical Connection | K Plug |
| Housing Material | Nickeled Brass |
| Sensor Length / Diameter | 105 / 30 mm |
| Protection Class | IP65 |
| Ambient Temperature | -20 / 70 °C |
