AMI Elektronik BDG 6360-2-10-30-W126-0400-65// Incremental Encoder

Name: AMI ELEKTRONIK BDG 6360-2-10-30-W126-0400-65// INCREMENTAL ENCODER
SKU: 552117
Price: 150.00 USD
Availability: LimitedAvailability


ami-elektronik-bdg-6360-2-10-30-w126-0400-65-incremental-encoder-3_675x450

ami-elektronik-bdg-6360-2-10-30-w126-0400-65-incremental-encoder-4_675x450



Kullanılmış

Talep üzerine mevcut

150,00$

Hassas endüstriyel enkoder AMI ELEKTRONIK BDG 6360-2-10-30-W126-0400-65// enkoder 400 darbe sunar, IP64 korumasına sahiptir ve 10.000 rpm'ye kadar çalışır, hassas hareket sistemleri için idealdir.

Üretici

AMI ELEKTRONIK

SKU

552117

Kategori

Rotary Encoders

Koşul

Kullanılmış

10“30V 10000 400 6360 AMI Automation BDG Elektronik Encoder for High-Speed Industrial IP64 Motion Precision Pulse Rotary rpm shaft

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

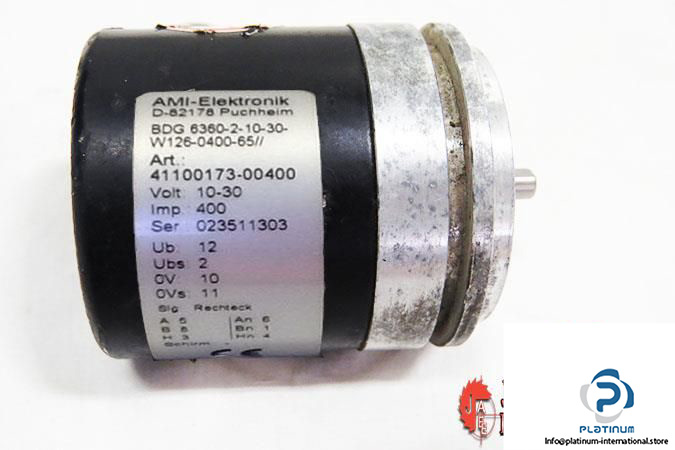

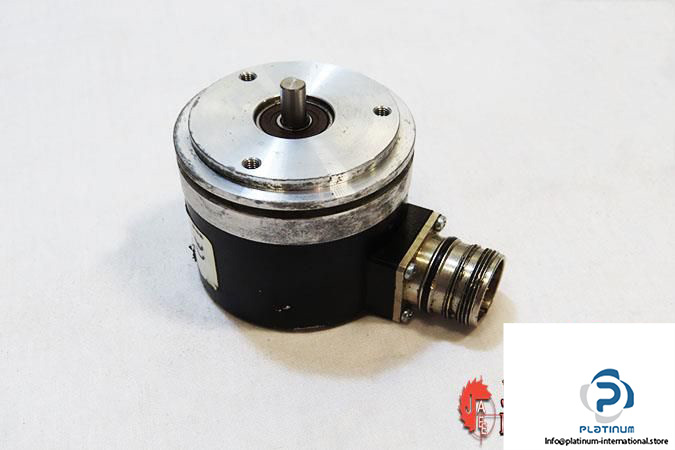

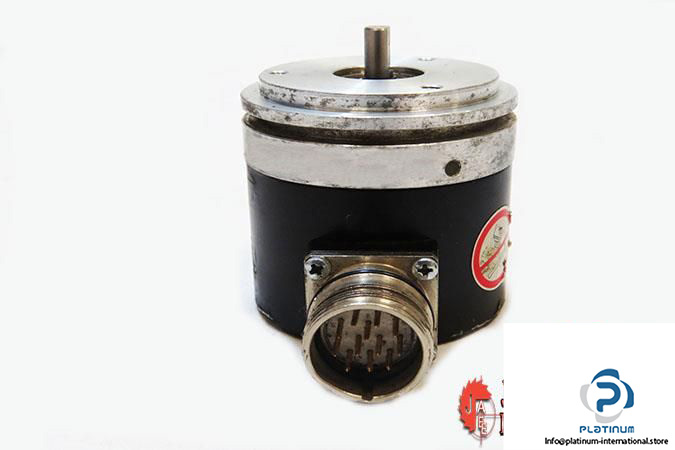

AMI ELEKTRONIK BDG 6360-2-10-30-W126-0400-65// ENCODER

The AMI ELEKTRONIK BDG 6360 encoder is engineered for precision and high-speed rotary motion detection in industrial automation systems. With a compact 58 mm housing and reliable impulse output, this encoder ensures accurate feedback and optimal performance in demanding environments.

Manufacturer: AMI ELEKTRONIK

Type: Encoder

Model: BDG 6360-2-10-30-W126-0400-65//

Article Number: 41100173-00400

Serial Number: 023511303

Operating Voltage	10 “ 30 V
Impulse	400
Scale	58 mm
Shaft Diameter	6 / 10 mm
Pulse Rate Range	up to 10000 ppr
Shaft Load	Axial 10 N, Radial 20 N
Max. Rotating Speed	10,000 rpm
Working Temperature	0°C to +80°C
Ingress Protection	IP 64 on shaft
Current Consumption (No Load)	Max. 100 mA
Scan Frequency	300 kHz
Current Output	20 mA
