Asahi Ucfk 202 Three-Bolt Flange Housing Unit
Üç-boltlu Flanş Gövde Ünitesi Asahi UCFK202 Üç-boltlu Flanş Gövde Ünitesi, hassasiyet ve dayanıklılık gerektiren endüstriyel sistemler için tasarlanmıştır. FK 202 gövdesi ve UC 202 rulmanı ile tutarlı performans ve stabilite sağlar.
Asahi UCFK202 Three-Bolt Flange Housing Unit
The Asahi UCFK202 Three-Bolt Flange Housing Unit is a reliable and precision-engineered solution designed for industrial applications. Built with the FK 202 housing and UC 202 bearing, this unit ensures stability and consistent performance in demanding environments.
Engineered for precision and durability, the Asahi UCFK202 Three-Bolt Flange Housing Unit is ideal for industrial systems requiring reliable performance and alignment.

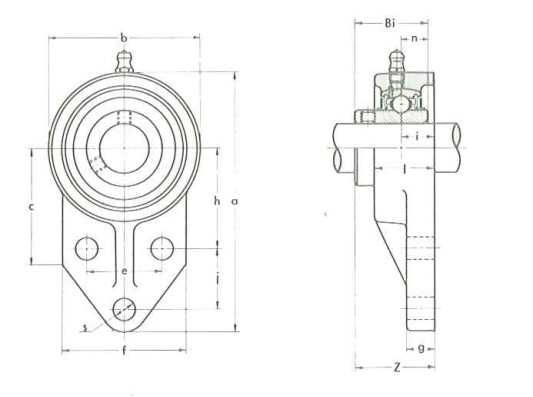

| Bearing No. | UC 202 |
| Housing No. | FK 202 |
| Bore Diameter | 15 mm |
| Overall Length | 62 mm |
| Overall Height | 110 mm |
| Width of Inner Ring | 31 mm |
| h | 42 mm |
| e | 32 mm |
| i | 27 mm |
| c | 52 mm |
| Overall Unit Width | 33.3 mm |
| Locking Device | Set Screw |
| Item Per Set | 2 |
