Beckhoff KL 2184 Digital Output Terminal

Name: BECKHOFF KL 2184 DIGITAL OUTPUT TERMINAL
SKU: 1083011
Availability: LimitedAvailability

Beckhoff-kl-2184-digital-output-terminal(new)

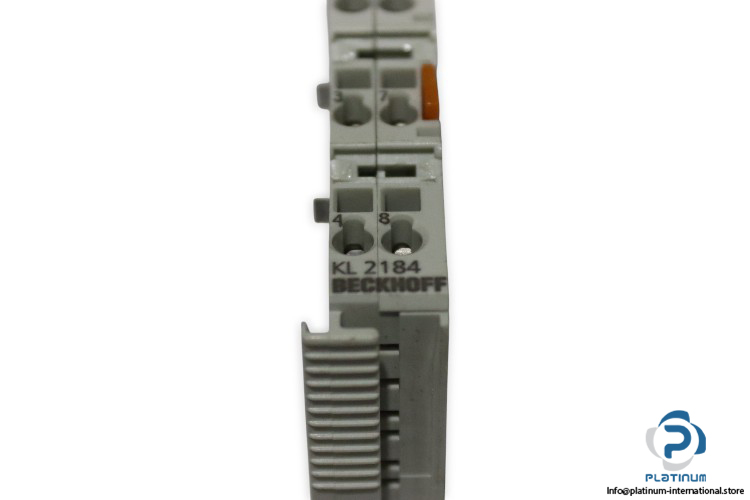

Beckhoff-kl-2184-digital-output-terminal(new)-1

Beckhoff-kl-2184-digital-output-terminal(new)-2

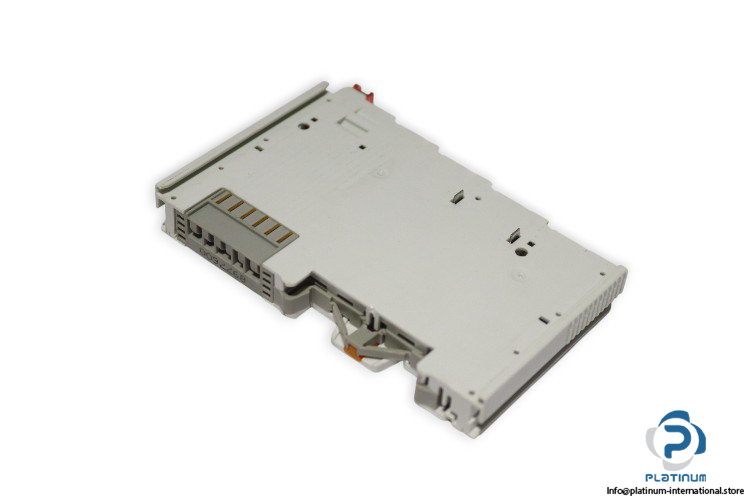

Beckhoff-kl-2184-digital-output-terminal(new)-3

Yeni

Stokta2 ünitelerSevkiyata hazır

Digital Output Terminal

Beckhoff KL2184 from the KL2 series with 4 outputs, 24 VDC supply, short-circuit protection, and compact design for industrial automation systems.

Üretici

BECKHOFF

SKU

1083011

Kategori

PLC Modules

Koşul

Yeni

24 Automation Beckhoff Circuit Digital Industrial KL2 KL2184 Module Output Protection Series Short terminal VDC

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

Beckhoff KL2184 Digital Output Terminal

The Beckhoff KL2184 is a high-quality digital output terminal from the KL2 series, designed for reliable and efficient control in automation systems. With 4 outputs, short-circuit protection, and robust electrical isolation, it ensures stable operation in demanding industrial environments.

Manufacturer: Beckhoff

Type: Digital Output Terminal

Model: KL2184

Serial No.: 34000000

Series: KL2

Connection Technology	2-/3-wire
Number of Outputs	4
Nominal Voltage	24 VDC (-15 %/+20 %)
Load Type	Ohmic, Inductive, Lamp Load
Output Current	Max. 0.5 A (short-circuit proof) per channel
Short-Circuit Current	< 7 A
Breaking Energy (Ind.)	Max. 100 mJ/channel
Electrical Isolation	500 V (K-bus/field potential)
Current Consumption Power Contacts	Typ. 30 mA + load
Current Consumption K-bus	Typ. 9 mA
Bit Width in Process Image	4 outputs
Dimensions (W x H x D)	15 mm x 100 mm x 70 mm (width aligned 12 mm)
Mounting	On 35 mm mounting rail, conforms to EN 60715
Permissible Ambient Temperature	0 °C / +55 °C
