Beckhoff KS2424 Digital Output Terminal

Name: BECKHOFF KS2424 DIGITAL OUTPUT TERMINAL
SKU: 1083022
Availability: LimitedAvailability

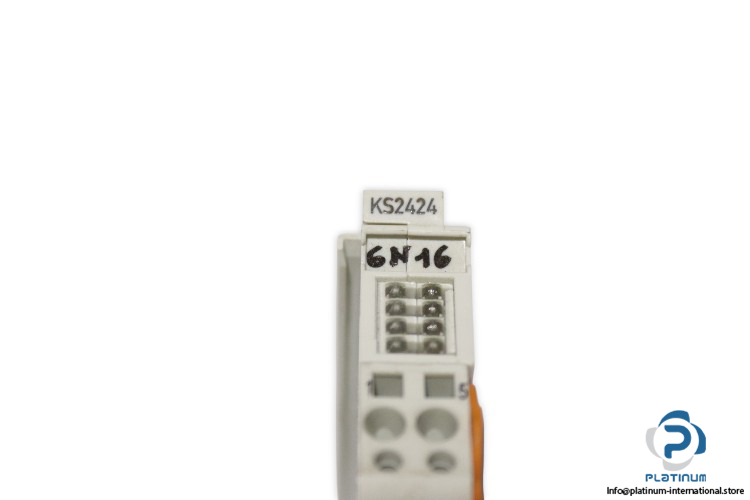

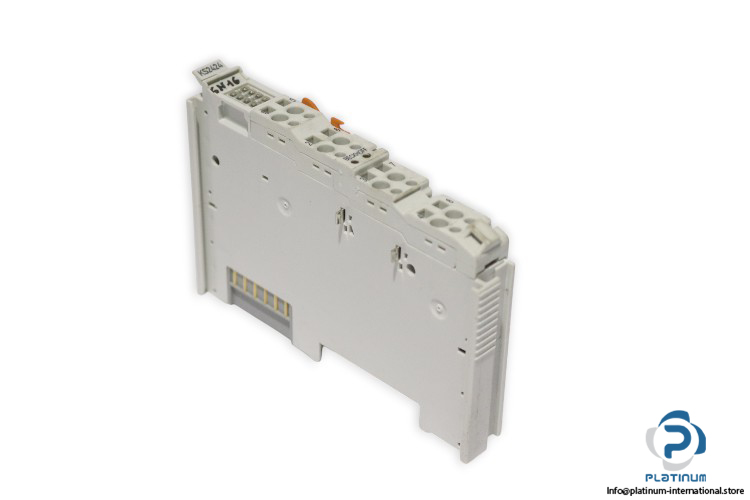

Beckhoff-ks2424-digital-output-terminal(used)

Beckhoff-ks2424-digital-output-terminal(used)-1

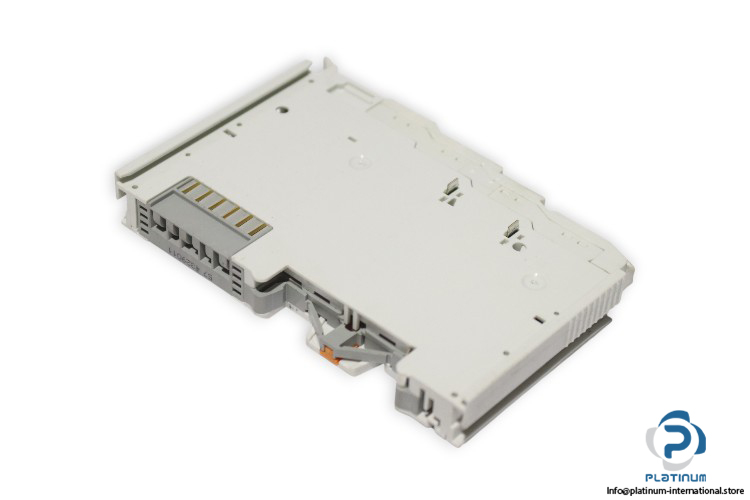

Beckhoff-ks2424-digital-output-terminal(used)-2

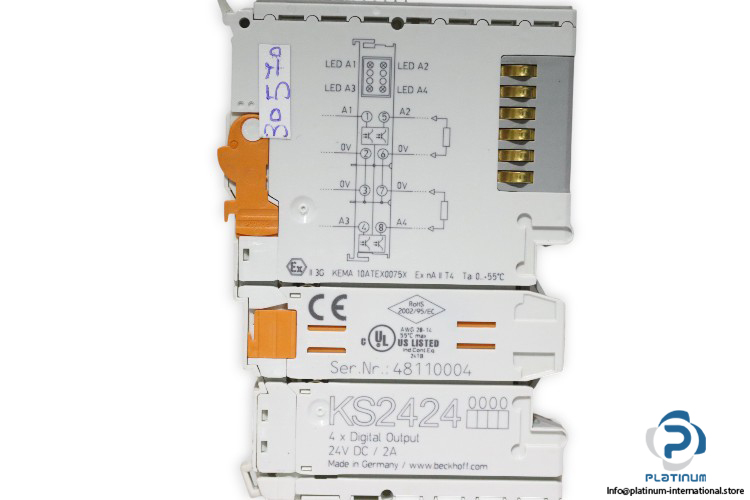

Beckhoff-ks2424-digital-output-terminal(used)-3

Kullanılmış

Stokta2 ünitelerSevkiyata hazır

Digital Output Terminal

Beckhoff KS 2424 4-channel digital output terminal with 24 VDC rated voltage, short-circuit protection, electrical isolation, and explosion-proof design for industrial automation.

Üretici

BECKHOFF

SKU

1083022

Kategori

PLC Modules

Koşul

Kullanılmış

2424 4-Channel Automation Beckhoff Digital Explosion Industrial KS KS2xxx Output Proof Series terminal

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

Beckhoff KS 2424 4-Channel Digital Output Terminal

The Beckhoff KS 2424 is a robust 4-channel digital output terminal from the KS2xxx series, designed for reliable performance in demanding industrial environments. With explosion-proof design, wide temperature tolerance, and short-circuit protection, it ensures durability and efficiency in automation systems.

Manufacturer: Beckhoff

Type: 4-Channel Digital Output Terminal

Model: KS 2424

MRN: 48110004

Series: KS2xxx

Connection Technology	2-wire
Number of Outputs	4
Rated Voltage	24 VDC (-15% / +20%)
Load Type	Ohmic, Inductive, Lamp Load
Output Current (per channel)	max. 2.0 A (short-circuit proof)
Short Circuit Current	70 A
Breaking Energy	1.7 J/channel
Electrical Isolation	Yes, 500 V (K-Bus/field potential)
Current Consumption K-Bus	typ. 9 mA
Current Consumption Power Contacts	typ. 30 mA + load
Bit Width in Process	4 output bits
Dimensions (W x H x D)	15 mm x 100 mm x 70 mm (connected width: 12 mm)
Permissible Ambient Temperature Range	-25°C ... +60°C
Explosion Proof	Yes
