B&R 8I86T401100.00-000 BASE DEVICE
Yeni
Stokta1 birimSevkiyata hazır
Frequency Inverter Base Device
B&R ACOPOS frequency inverter base device for three-phase supply, supporting up to 11 kW motor power with flexible I/O, POWERLINK interface, and reliable industrial performance.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

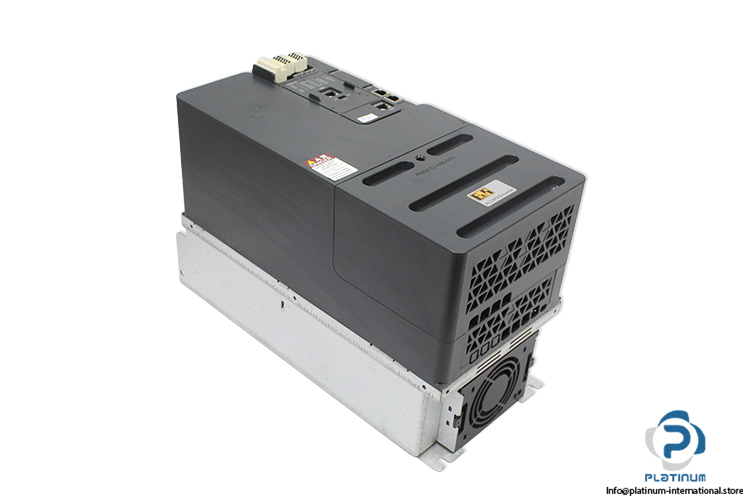

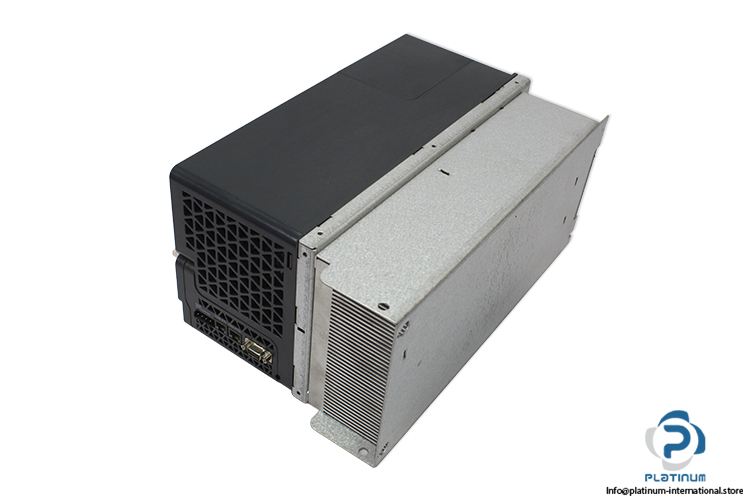

B&R 8I86T401100.00-000 Frequency Inverter Base Device
The B&R 8I86T401100.00000 frequency inverter base device from the ACOPOS inverter range is designed for precise motor control in industrial automation systems. It delivers reliable performance, flexible I/O configuration, and advanced communication via POWERLINK for demanding motion and drive applications.
Manufacturer: B&R
Type: Frequency Inverter Base Device

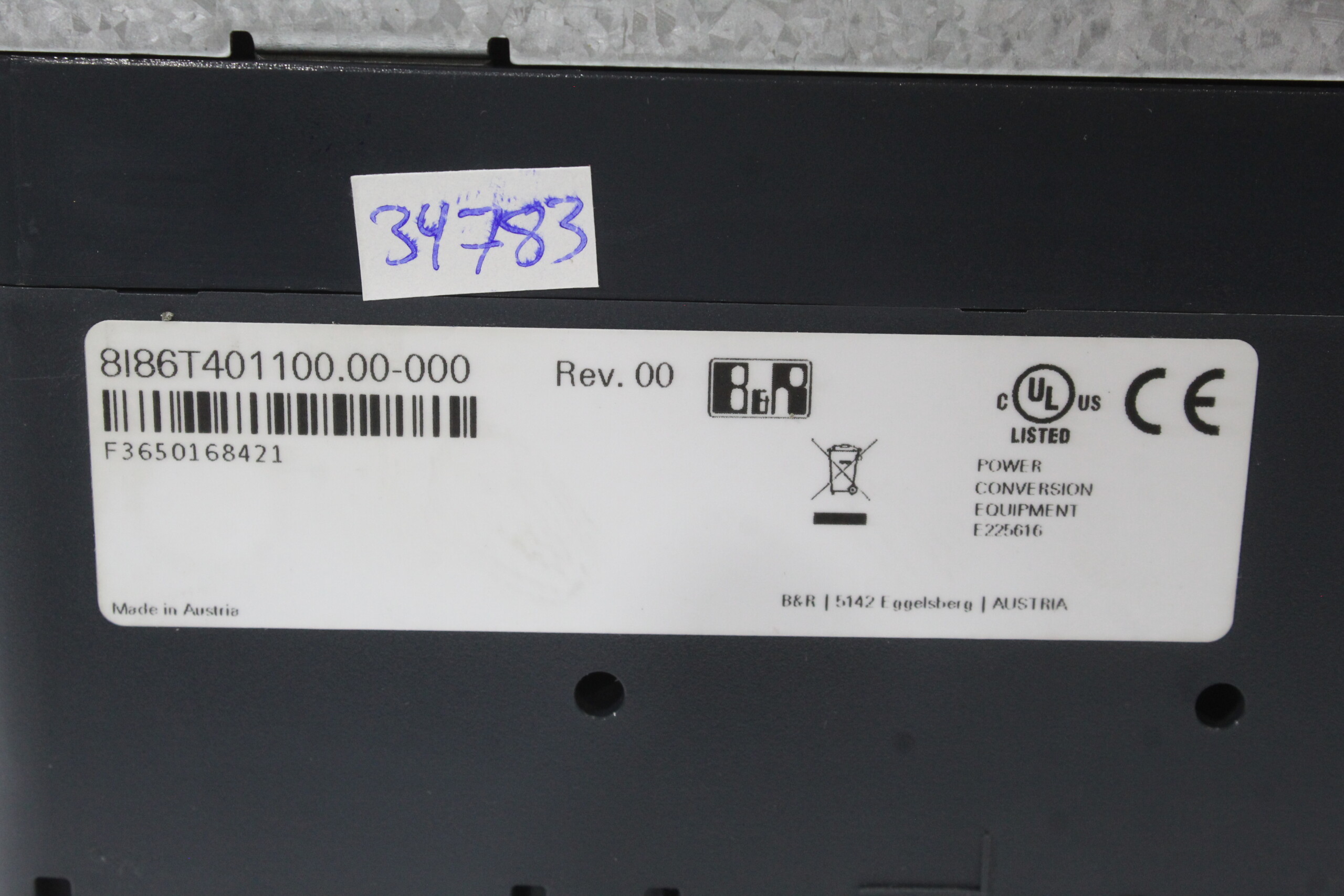

Model: 8I86T401100.00-000
Range: ACOPOS inverter
| Supply Voltage | 3-Phase 380 / 480 V AC |
| Rated Input Current | 34.7 / 27.7 A |
| Frequency | 50 / 60 Hz |
| Input Power | 23 kVA |
| Power Dissipation | 313 / 50 W |
| Rated Output Voltage | 24 V DC |
| Rated Output Current | 24 A |
| Motor Power | 11 kW / 15 HP |
| Digital Inputs (DI) | 5 (24 V DC, Max. 30 V DC) |
| Safe Inputs | 2 (24 V DC, Max. 30 V DC) |
| Digital Outputs (DO) | 2 (24 V DC) |
| Analog Inputs (AI) | 2 (0 to 10 V DC) |
| Analog Outputs (AO) | 1 (0 to 10 V DC or 0 to 20 mA, Resolution 10-Bit) |
| Relay Outputs | 2 (30 V DC / 250 V AC) |
| Relay Configuration | Relay 1: 1 Changeover (CO), Relay 2: 1 Normally Open (NO) |
| Interface Type | POWERLINK |
| Protection Class | IP20 |
| Ambient Temperature | -15 / 50 °C |
| Dimensions | 385 x 180 x 249 mm |
