Crouzet 83118 Microswitch
Yeni
Stokta1 birimSevkiyata hazır
Mikroanahtar CROUZET 83118 SPDT değiştirici çıkışlı mikroanahtar, tıklama tipi kontak işletimi ve makaralı kol aktüatörlü, endüstriyel kontrol uygulamaları için 250 V AC ve 5 A değerinde.
Kullanılmış
Stokta
Bu ürün ayrıca ikinci el olarak da mevcuttur
Kullanılmış Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

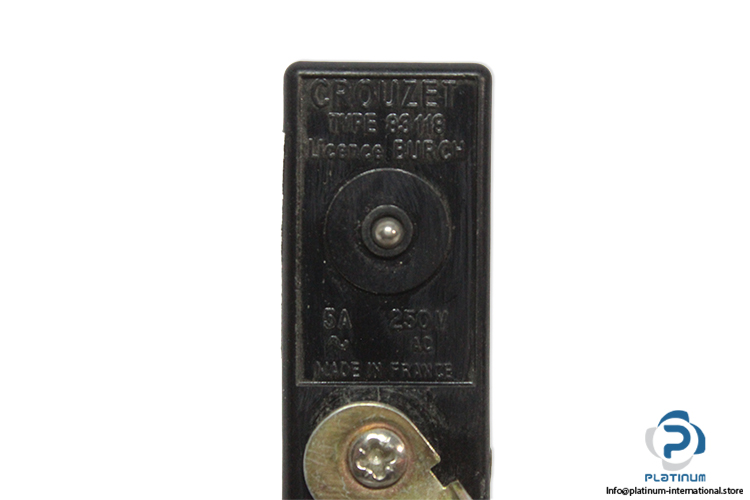

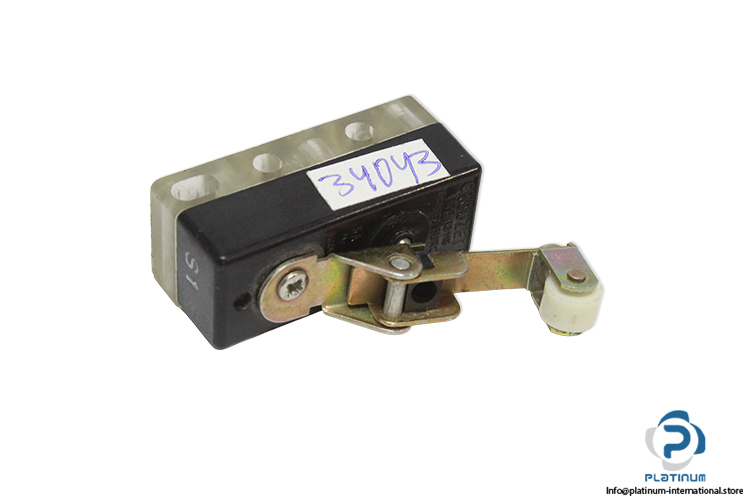

CROUZET 83118 Microswitch
The CROUZET 83118 is a high-precision microswitch designed for reliable position detection and control in industrial applications. Featuring snap action contact operation and a roller lever actuator, it ensures accurate switching performance and long service life under demanding conditions.
Manufacturer: CROUZET
Type: Microswitch
Model: 83118
| Output Configuration | Changeover “ SPDT |
| Contact Operation | Snap Action |
| Actuator Type | Roller Lever |
| Switching Voltage Max. | 250 V AC |
| Contact Current Max. | 5 A |
| Connection | Cable Entry |
| Dimensions | 17.5 x 29.4 x 43 mm |
| Maximum Operating Force | 2.7 N |
| Minimum Release Force | 0.75 N |
| Operating Position | 16 ± 0.3 mm |
| Minimum Overtravel | 0.2 mm |
| Maximum Total Travel Force | 4 N |
| Maximum Permitted Overtravel Force | 30 N |
| Maximum Rest Position | 16.7 mm |
| Differential Travel | 0.03 to 0.09 mm |
| Ambient Operating Temperature | -40 to +125 °C |
