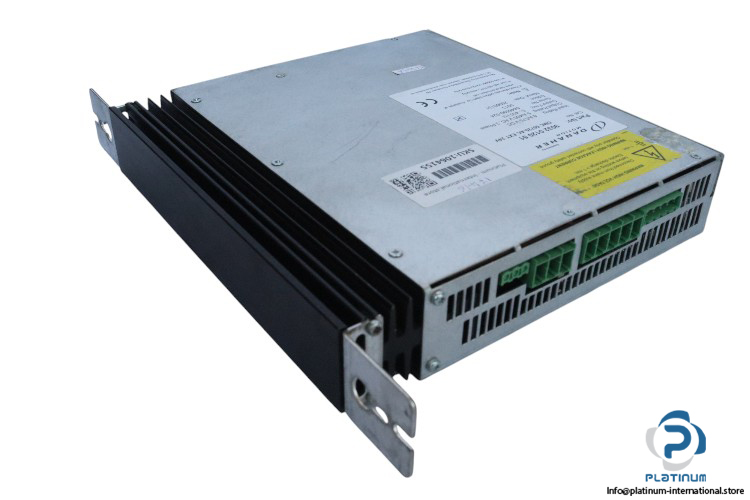

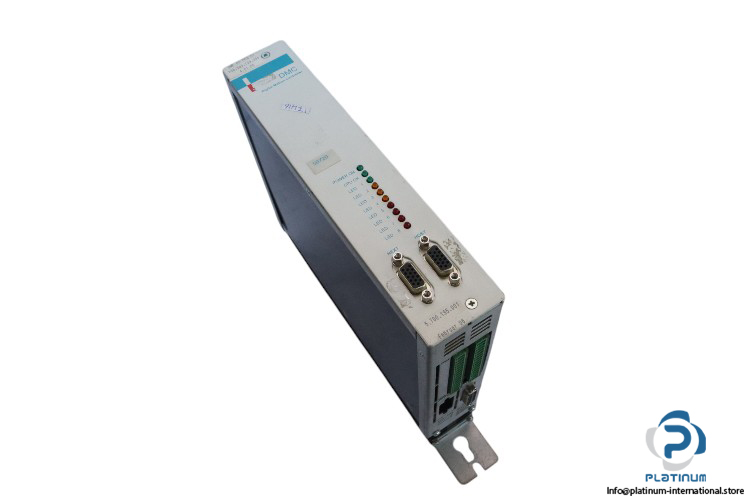

Danaher Motion 9032 0120 51 Digital Motion Controller

Danaher Motion Digital Motion Controller/DMC DMC 50720-AC EXT 24V

Danaher Motion Digital Motion Controller DMC 50720-AC EXT 24V is a high-performance controller designed to deliver precise motion control in industrial applications. With its robust features, this controller ensures efficient operation in a wide range of conditions. Below are the key technical specifications:

• Manufacturer: Danaher Motion
• Type: Digital Motion Controller/DMC
• Model: DMC 50720-AC EXT 24V

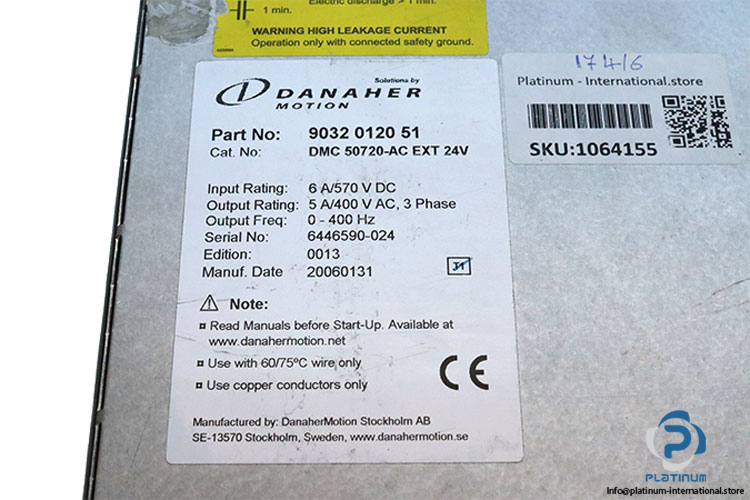

• Part No.1: 9032012051

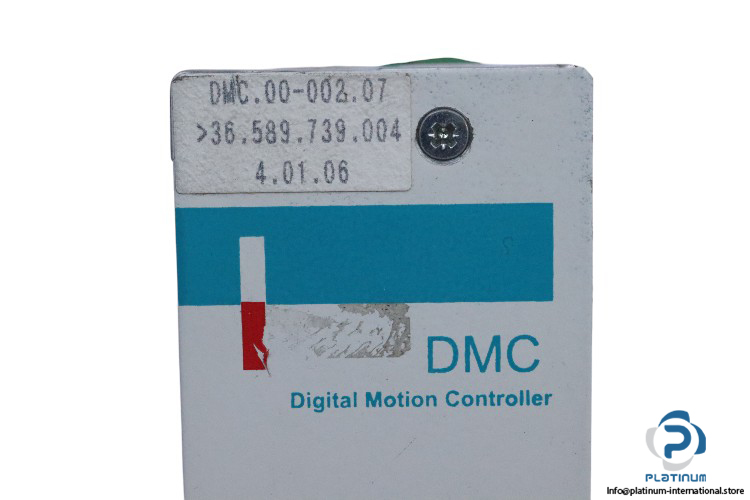

• Part No.2: DMC.00-002.07

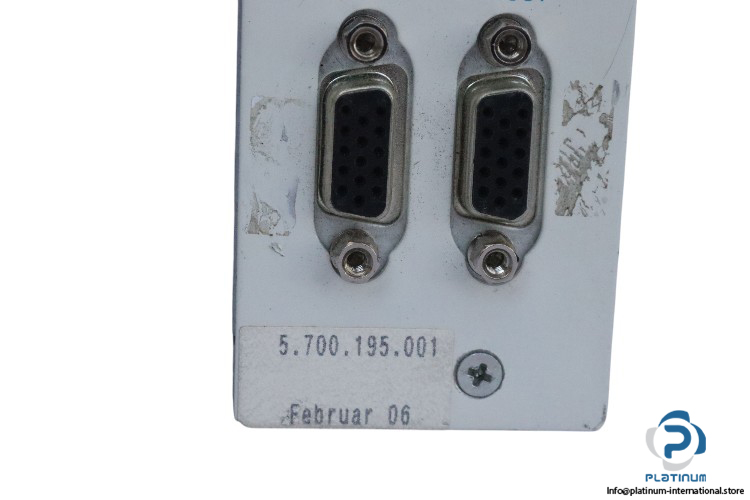

• Part No.3: 5.700.195.001
• Part No.4: 36.589.739.004

Technical Data:

• Input Voltage: 570 V DC
• Input Current: 6 A
• Output Voltage: 3 phase / 400 V AC
• Output Current: 5 A
• DC Bus Voltage: 570 V DC
• Shunt Regulation On: 670 to 700 V DC
• Shut Down DC Bus Voltage: 700 to 725 V DC
• Continuous Current (A DC): 7 A at 40°C
• Continuous Current (Arms): 4.5 A at 40°C
• Peak Current: 20 A
• Power Loss: 90 W
• Continuous Output Power: 3 kW at 40°C
• Min Motor Inductance: 8 mH
• Speed Range: 1 to 9000 RPM
• Output Frequency: 0 to 400 Hz
• Ambient Temperature: 0 to 60°C
• Protection Degree: IP 20
• Dimensions: 234 x 46 x 227 mm
