Dold EO 7864.82 Pulse Control Timer
Kullanılmış
Stokta1 birimSevkiyata hazır
Pulse Control Timer
The DOLD EO 7864.82 pulse control timer is designed for automated cyclic control. It features dual output contacts, wide-range voltage input, and an adjustable timing range from 0.25 to 640 minutes.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

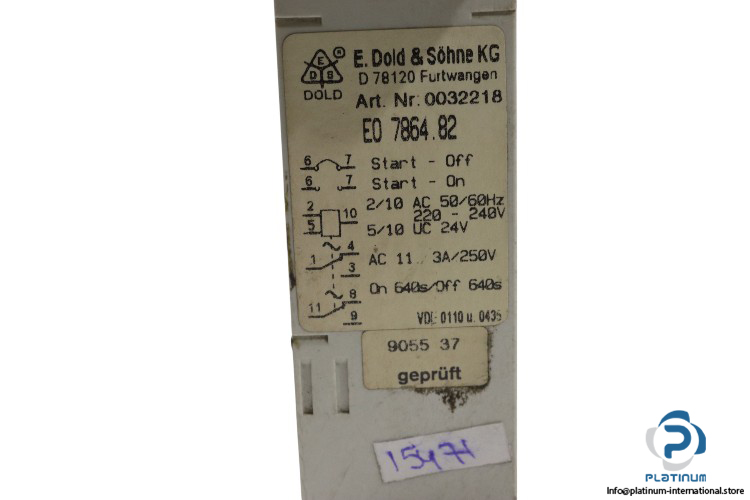

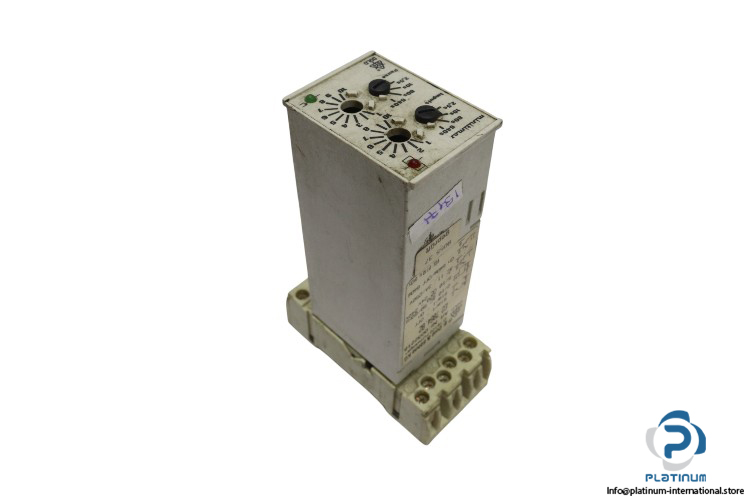

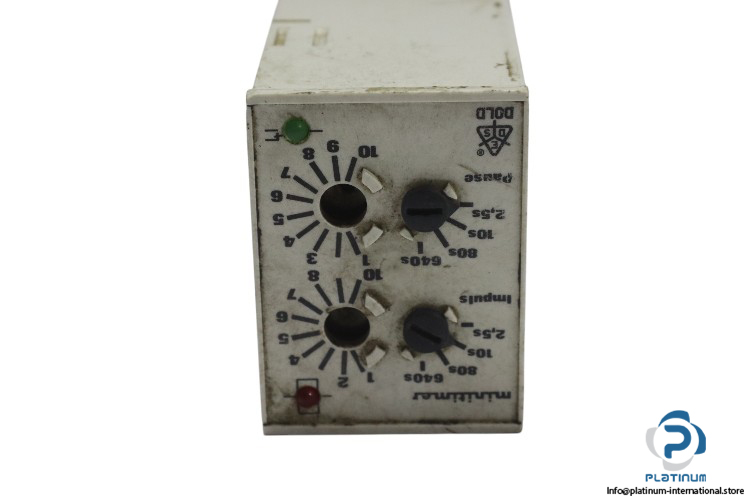

DOLD EO 7864.82 Pulse Control Timer
The DOLD EO 7864.82 is a precision-engineered pulse control timer designed for controlling cyclic operations in industrial automation. With a compact front size and versatile voltage input, it is ideal for timing functions in a wide range of control systems.
Manufacturer: DOLD
Type: Pulse Control Timer
Model: EO 7864.82
Part No.: 0032218
Technical Data:
- Front Size: 35 x 48 mm
- Output: 2 changeover contacts
- Nominal Voltage UN: AC/DC 24 V + AC 220 … 240 V
- Frequency: 50 / 60 Hz
- Time Setting for Impulse and Space: 0.25 … 640 m
- Dimensions: 35 x 48 x 109 mm
