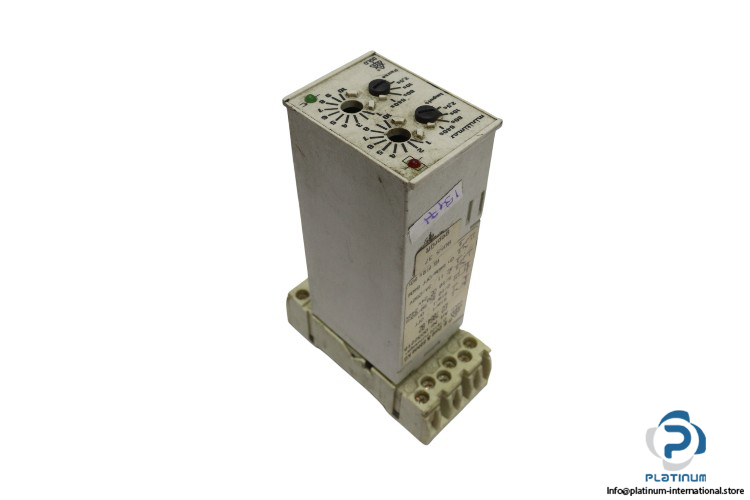

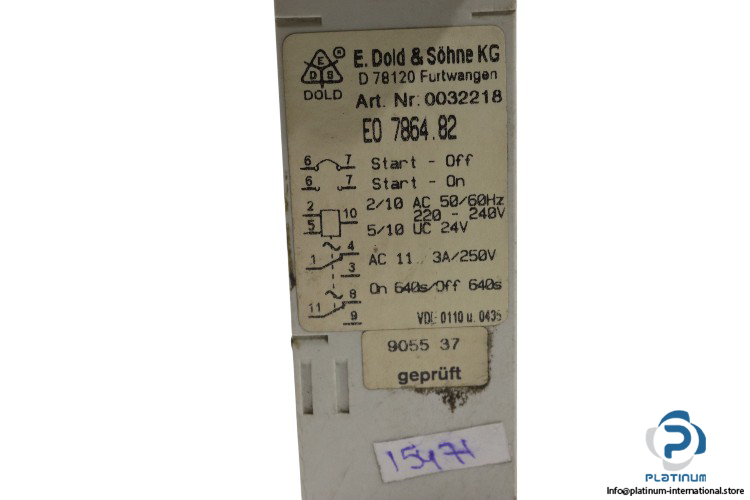

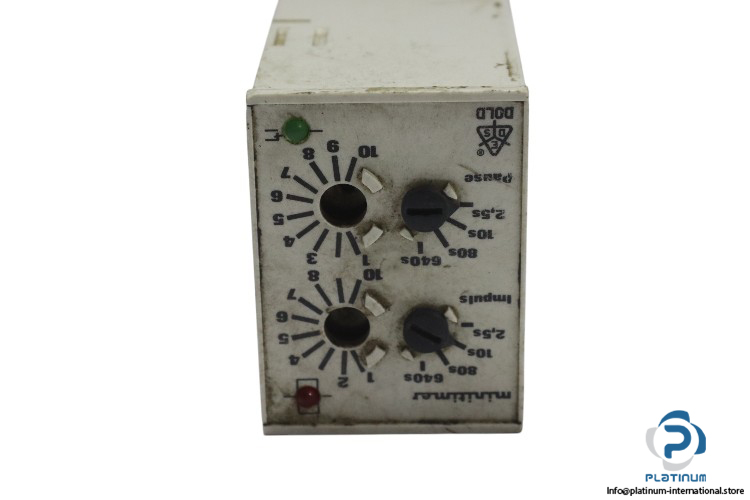

Dold EO 7864.82 Pulse Control Timer

DOLD EO 7864.82 Pulse Control Timer

The DOLD EO 7864.82 is a precision-engineered pulse control timer designed for controlling cyclic operations in industrial automation. With a compact front size and versatile voltage input, it is ideal for timing functions in a wide range of control systems.

Manufacturer: DOLD

Type: Pulse Control Timer

Model: EO 7864.82

Part No.: 0032218

Technical Data:

• Front Size: 35 x 48 mm
• Output: 2 changeover contacts
• Nominal Voltage UN: AC/DC 24 V + AC 220 … 240 V
• Frequency: 50 / 60 Hz
• Time Setting for Impulse and Space: 0.25 … 640 m
• Dimensions: 35 x 48 x 109 mm
