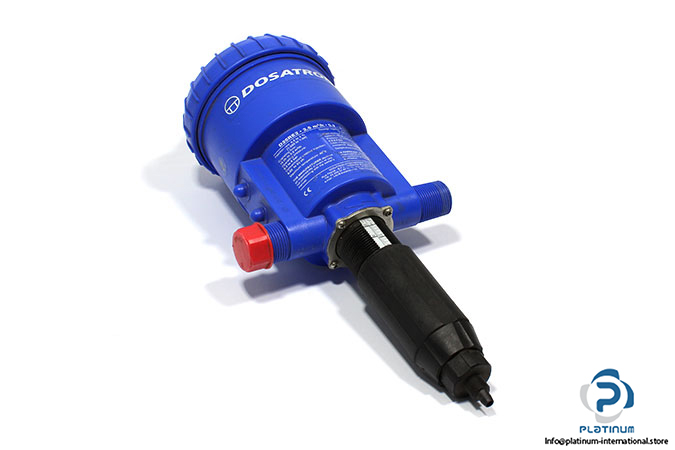

Dosatron D25RE2 Generic Dosing Pump

DOSATRON D25RE2 GENERIC DOSING PUMP

The DOSATRON D25RE2 is a highly accurate, non-electric dosing pump designed for injecting concentrated additives directly into a water line. It operates using water flow as the driving force, ensuring reliability and precision across a wide range of industrial and agricultural applications.

Manufacturer: DOSATRON
Type: Generic Dosing Pump
Model: D25RE2

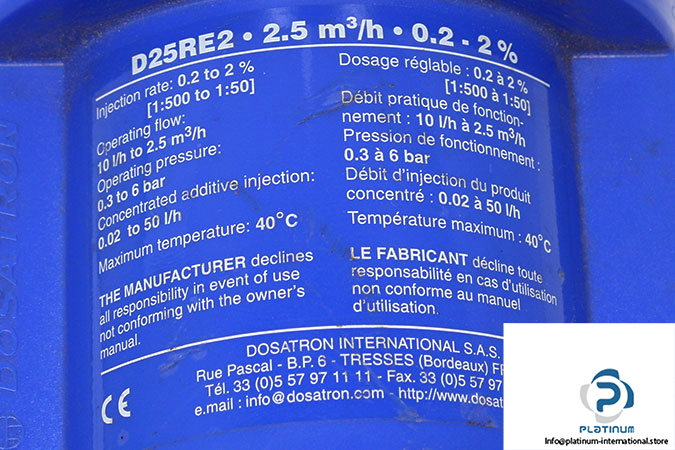

Technical Specifications

• Injection Range: 0.2 “ 2 percent [1:500 “ 1:50]
• Water Flow Range: 10 l/h “ 2.5 m³/h
• Operating Water Pressure: 0.3 “ 6 bar
• Concentrated Additive Injection: 0.3 l/h “ 200 l/h
• Stroke Volume: 0.45 l
• Connections: NPT-BSP 3/4 inch M 20x27mm
• Max. Temperature: 40 °C
