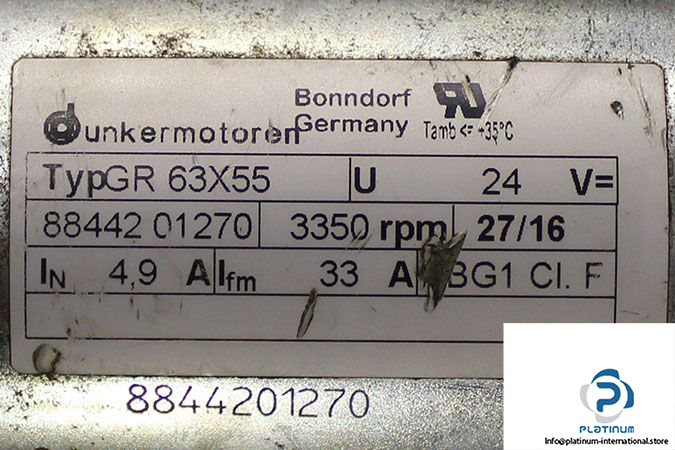

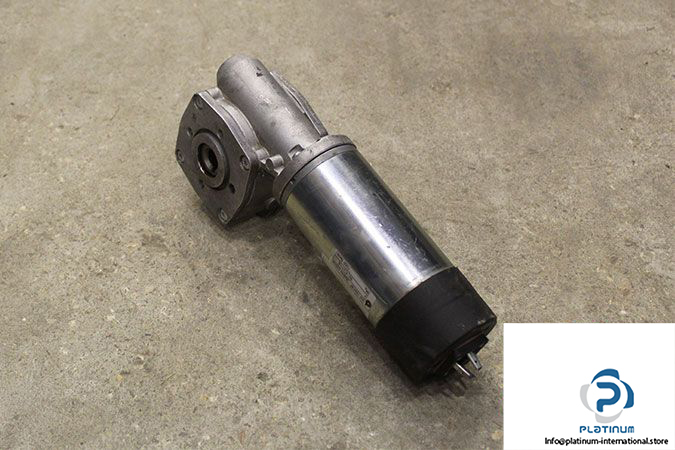

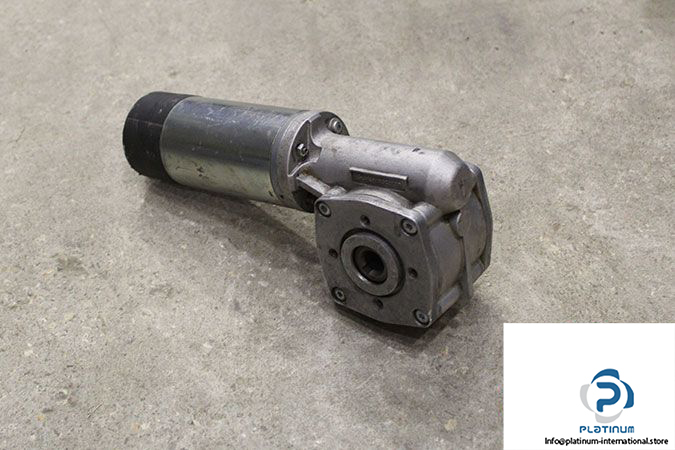

Dunkermotoren GR63X55 DC Motor

Manufacturer: Dunkermotoren

Type: DC Motor

Model: GR63 X 55

Series: GR 63 x 55

Nominal Voltage: 24 V

Nominal Speed: 3350 min^-1

Nominal Torque: 27 Ncm

Nominal Current: 4.9 A

Demagnetization Current: 33 A

No Load Speed: 3650 min-1

No Load Current: 0.4 A

Starting Torque: 211 Ncm

Moment of Inertia: 750 gcm²

Efficiency: 80 %

Thermal Class: F

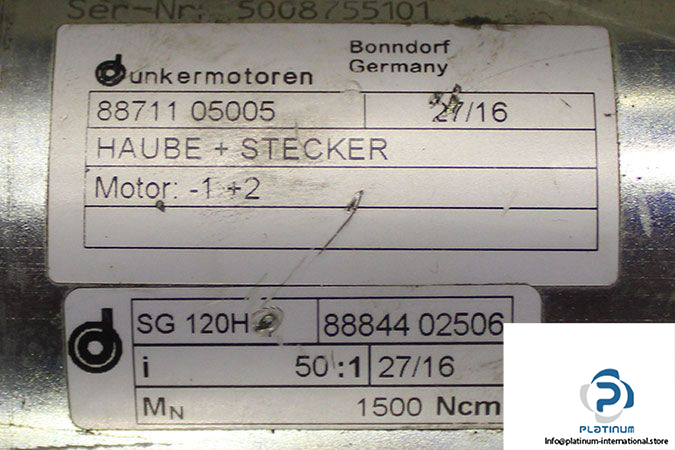

Dunkermotoren SG 120H Angular Gearboxes

Reduction Ratio: 50

Starting Torque: 1500 Ncm

Continuous Torque: 15 Nm

Max. Acceleration Torque: 30 Nm

Emergency Torque: 45 Nm

Axial Load: 300 N

Radial Load: 500 N

Hollow Diameter: 13 mm

Operating Mode: S8

Efficiency: 35 %

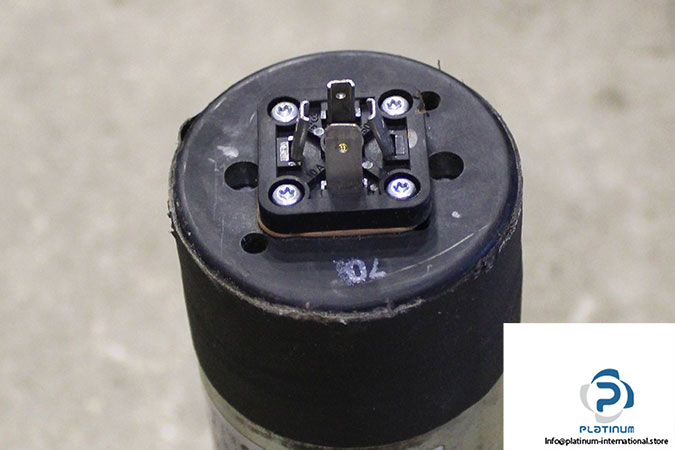

With Plug + Hood

Gross Weight: 3.42 kg
