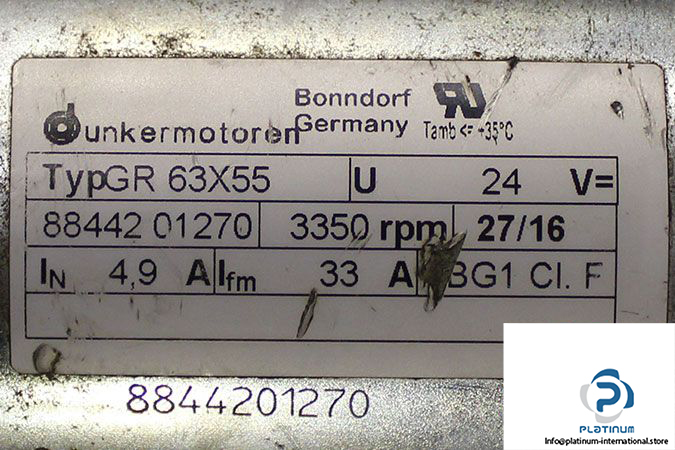

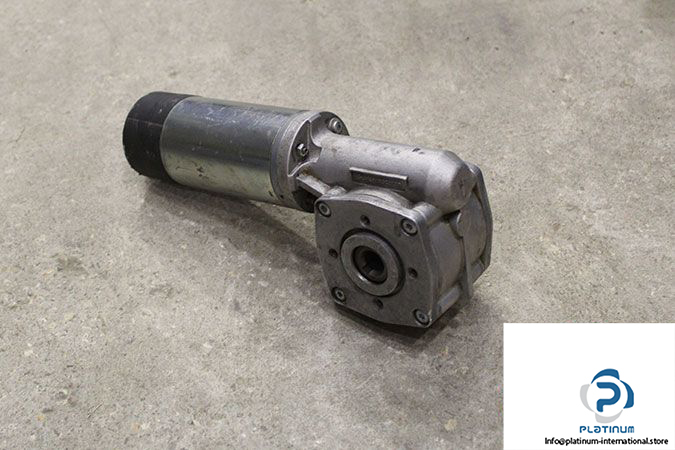

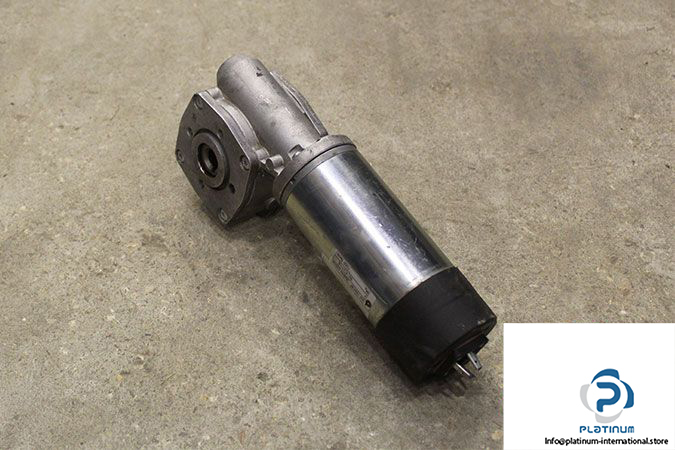

Dunkermotoren GR63X55 DC Motor
Manufacturer: Dunkermotoren
Type: DC Motor
Model: GR63 X 55
Series: GR 63 x 55
Nominal Voltage: 24 V
Nominal Speed: 3350 min-1
Nominal Torque: 27 Ncm
Nominal Current: 4.9 A
Demagnetization Current: 33 A
No Load Speed: 3650 min-1
No Load Current: 0.4 A
Starting Torque: 211 Ncm
Moment of Inertia: 750 gcm2
Efficiency: 80 %
Thermal Class: F

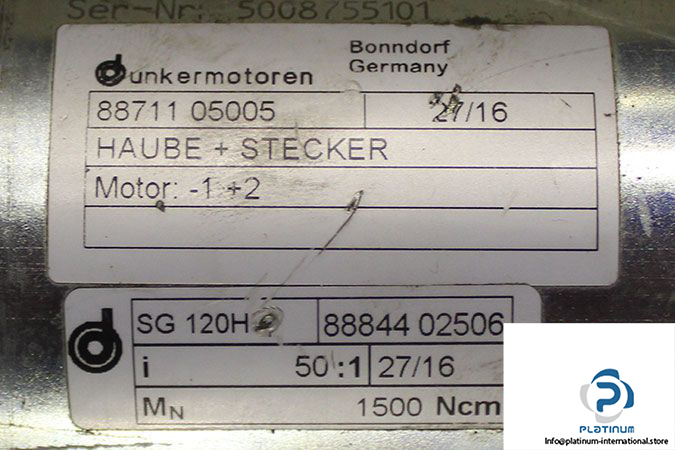

Dunkermotoren SG 120H Angular Gearboxes
Reduction Ratio: 50
Starting Torque: 1500 Ncm
Continuous Torque: 15 Nm
Max. Acceleration Torque: 30 Nm
Emergency Torque: 45 Nm
Axial Load: 300 N
Radial Load: 500 N
Hollow Diameter: 13 mm
Operating Mode: S8
Efficiency: 35 %

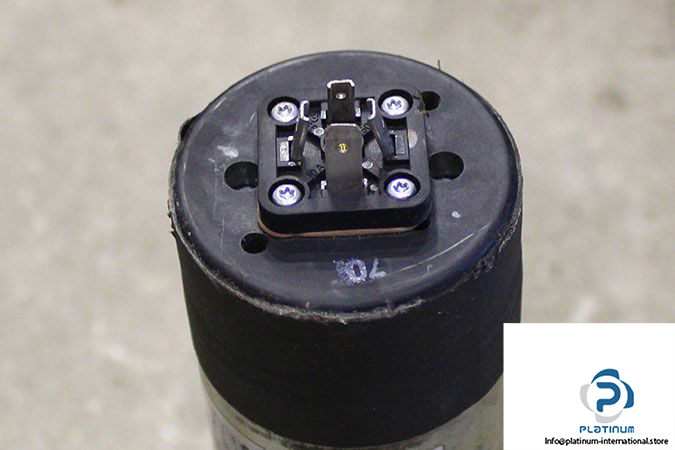

With Plug + Hood
Gross Weight: 3.42 kg
