Heidenhain ROD 426-2500-02S12-03 Incremental Encoder

Name: HEIDENHAIN ROD 426-2500-02S12-03 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966114
Price: 270.00 USD
Availability: LimitedAvailability


eidenhain-rod-426-2500-02s12-03-incremental-encoder3_675x450

eidenhain-rod-426-2500-02s12-03-incremental-encoder4_675x450

eidenhain-rod-426-2500-02s12-03-incremental-encoder5_675x450




Kullanılmış

Talep üzerine mevcut

270,00$

ARTIMLI ENCODER HEIDENHAIN ROD 426-2500-02S12-03, 2500 PPR çözünürlük, TTL RS422 çıkış, 5 VDC giriş ve IP67/IP64 koruma ile. Hassas otomasyon ve yüksek hızlı döner uygulamalar için idealdir.

Üretici

HEIDENHAIN

SKU

966114

Kategori

Rotary Encoders

Koşul

Kullanılmış

2500 426-2500-02S12-03 5V Encoder Flange Heidenhain High-Speed Incremental Industrial Output PPR ROD Rotary RS422 Sensor shaft Solid Synchro TTL

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

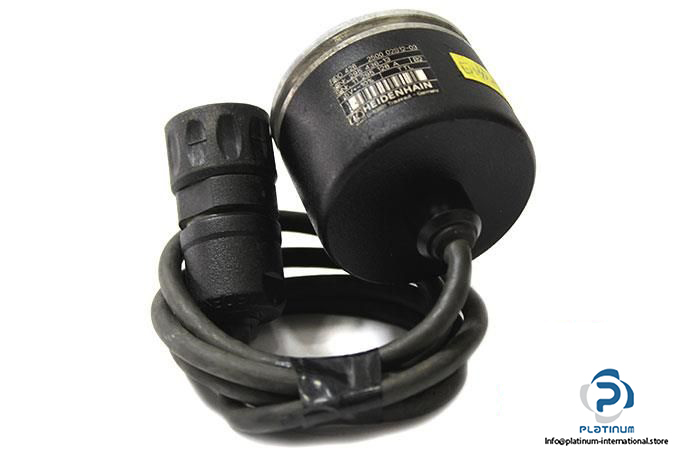

HEIDENHAIN ROD 426-2500-02S12-03 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426-2500-02S12-03 is a high-precision incremental encoder designed for demanding industrial environments. It delivers reliable TTL signal output with excellent resolution and mechanical robustness, making it ideal for applications in automation, robotics, and motion control.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

Model: ROD 426-2500-02S12-03

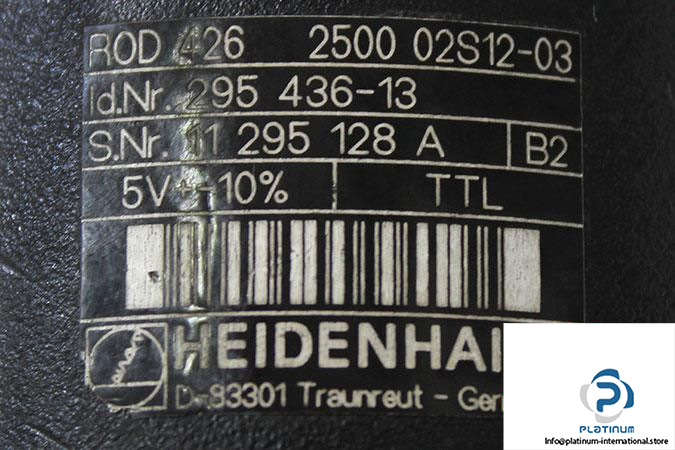

ID No.: 295 436-13

SN: 11 295 128 A

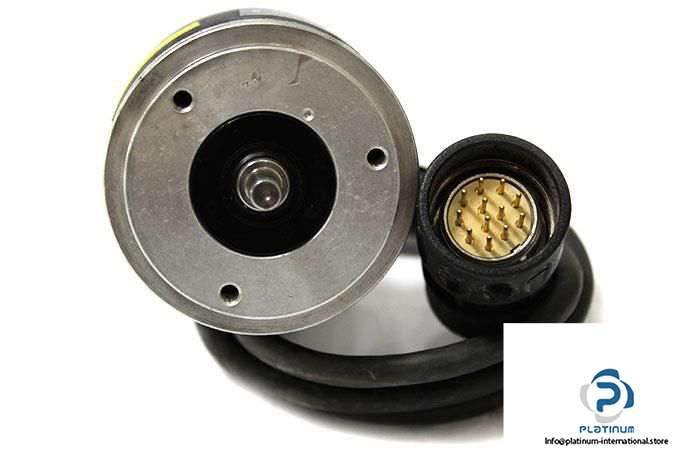

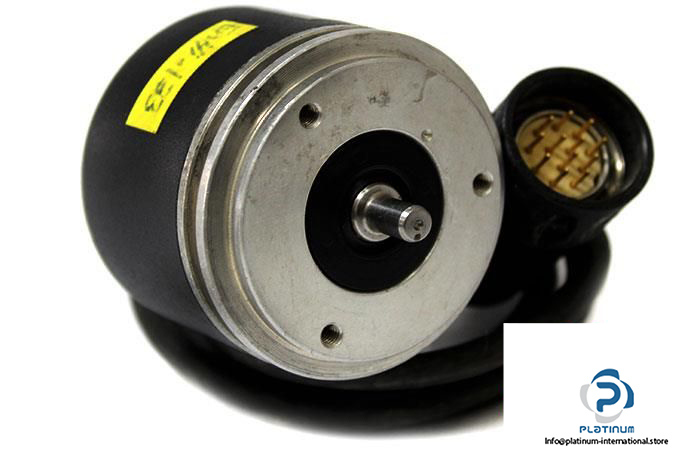

Flange Design	Synchro flange
Shaft Design	Solid Shaft
Shaft Diameter	6 mm
Voltage Supply	5 VDC
Resolution	2500 Pulse per revolution (PPR)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max Speed	16000 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at housing, IP64 at shaft inlet
Max Temperature	100 °C
