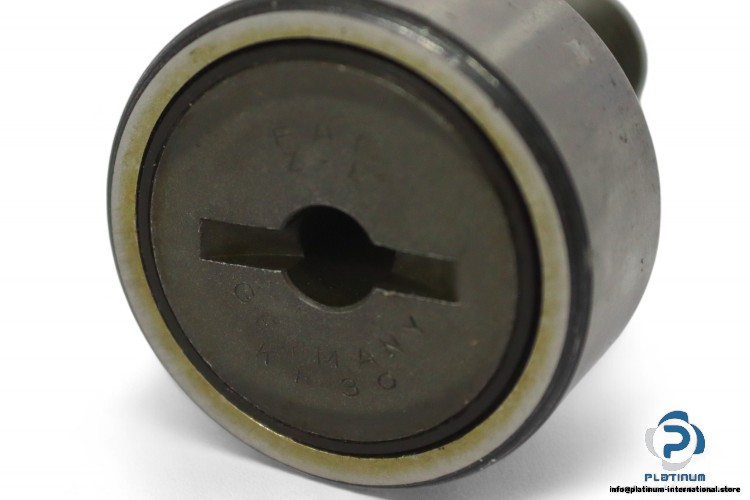

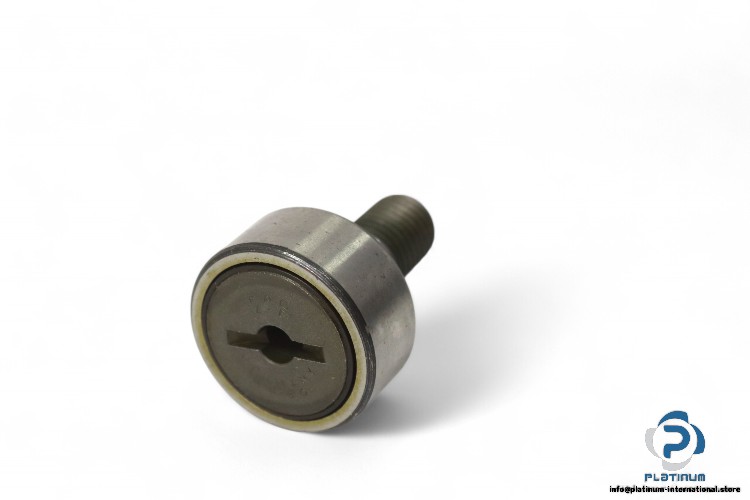

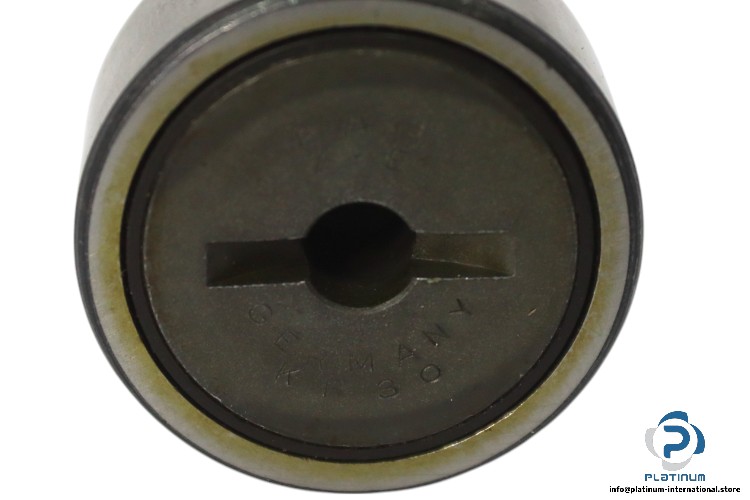

FAG KR 30 Stud Type Track Roller

Manufacturer:  FAG
Type: STUD TYPE TRACK ROLLER
Model: KR-30

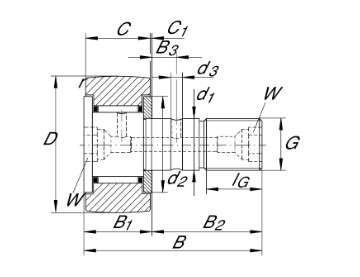

Dimensions:
Outside diameter D: 30 mm
Fit diameter of roller stud d₁: 12 mm
Width of the roller stud B: 40 mm
Basic dynamic load rating, radial: 6,800 N
Basic static load rating, radial: 8,700 N
Fatigue load limit, radial: 1,240 N
Speed on permanent grease lubrication: 5,500 1/min
Grease nipples: Drive-fit lubrication nipple unmounted 2x
Sealing: Gap seal on both sides
Mounting aid stud: 16, Hexagon socket
Thread: M12X1,5
