Festo 32785 Linear Unit

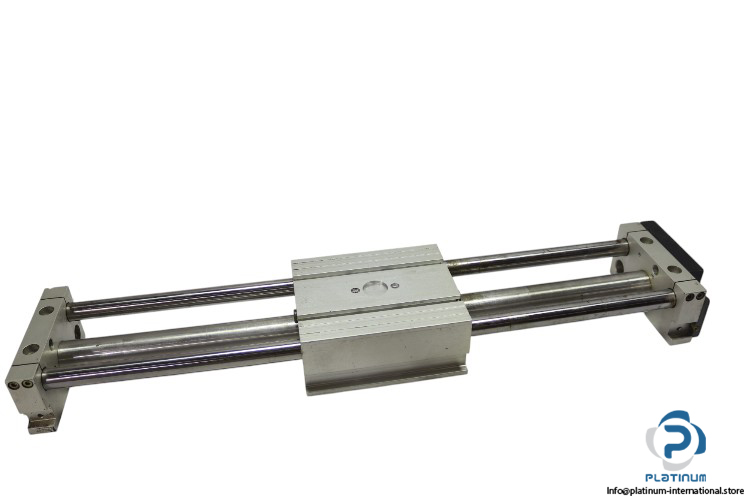

Festo SLM-32-420-KF-A Linear Unit

The Festo SLM-32-420-KF-A Linear Unit is designed for precise motion control in pneumatic applications. With a stroke length of 420 mm and a piston diameter of 32 mm, this unit offers efficient performance under a max operating pressure of 7 bar. It features a double-acting mode, elastic cushioning rings at both ends, and a recirculating ball bearing guide for smooth and reliable operation.

Manufacturer: FESTO

Type: Linear Unit

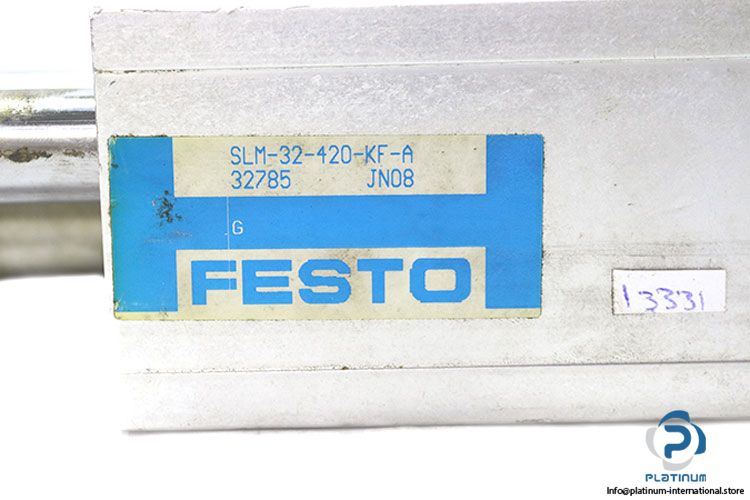

Model: SLM-32-420-KF-A

Part No.: 32785

Technical Data:

• Stroke Length: 420 mm
• Piston Diameter: 32 mm
• Max. Operating Pressure: 7 bar
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Guide: Recirculating ball bearing guide
• Position Sensing: For proximity sensing
• Variant: Standard design, Hollow guide rod
• Housing Material: Aluminum
• Pneumatic Connection: G1/8
• Ambient Temperature: -20 … 60 °C
