FMS Lmgz 310 Tension Control
Yeni
Stokta1 birimSevkiyata hazır
Tension Control
FMS LMGZ 310 Tension Control offers precise measurement with a 6000 N nominal force rating, 1.8 mV/V sensitivity, and a wide temperature range of 10 to 60 °C. Built with stainless steel, it’s designed for accurate industrial applications.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
FMS LMGZ 310 Tension Control
The FMS LMGZ 310 Tension Control is a high-precision device designed for accurate measurement and control of tension in industrial applications. It features a nominal force rating of 6000 N, sensitivity of 1.8 mV/V, and robust stainless steel construction.
Manufacturer: FMS
Model: LMGZ 310
Type: Tension Control

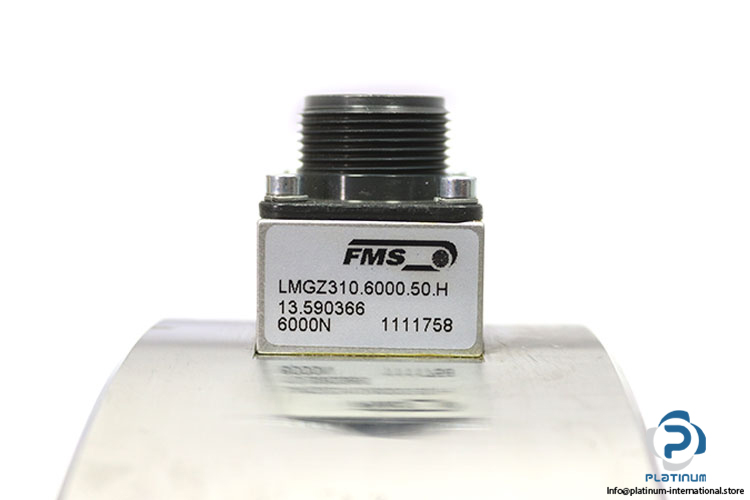

Part No.: LMGZ310.6000.50.H
Code: 13.590366 / 1111758
| Size | 310 |
| Shaft Diameter | 50 mm |
| Nominal Force Rating | 6000 N |
| Option | H |
| Sensitivity | 1.8 mV/V |
| Deflection | 0.54 mm |
| Tolerance of Sensitivity | less than 0.2 % |
| Accuracy Class | 0.3 % |
| Measuring Range | 100:1 |
| Temperature Coefficient | 0.1 % |
| Temperature Range | 10 to 60 °C |
| Input Resistance | 350 ohms |
| Power Supply | 1 to 10 V DC |
| Sensor Material | Stainless Steel |
| Dimensions | 225 x 75.9 x 258 mm |
| Protection Class | IP42 |
