Hager SR 250 Current Transformer
Akım Trafoları Hager SR250 Akım Trafosu, 250/5 A dönüşüm oranı, 0,72 ile 3 kV çalışma voltajı ve maksimum 300 A primer akımına sahiptir. Endüstriyel uygulamalarda hassas akım ölçümü için idealdir.

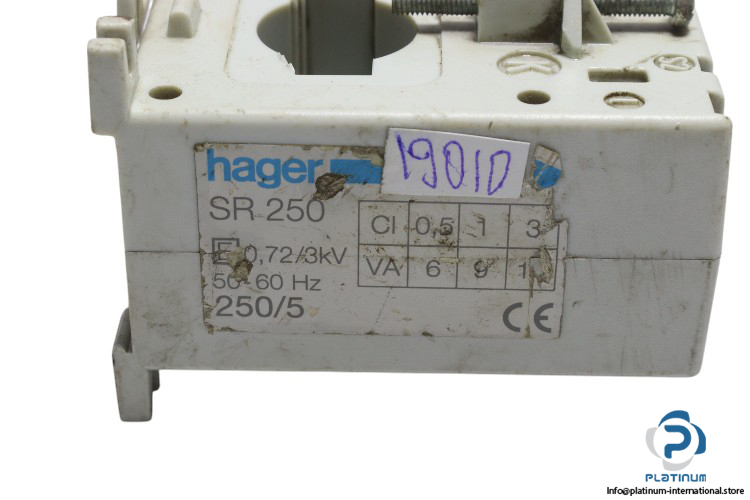

Hager SR250 Current Transformer
The Hager SR250 Current Transformer is designed for precise measurement and conversion of single-phase currents. With a transformation ratio of 250/5 A and an operating voltage range of 0.72 to 3 kV, this transformer provides reliable performance in both industrial and commercial settings. It is engineered to handle maximum primary currents of up to 300 A, while maintaining secondary currents of 5 A.
Manufacturer: Hager
Type: Current Transformer / Single-phase Current Converter
Model: SR250
This current transformer is ideal for applications requiring high-precision current measurement, offering versatility, reliability, and efficient performance in various industrial sectors.
| Operating Voltage | 0.72 to 3 kV |
| Frequency | 50/60 Hz |
| Transformation Ratio | 250/5 A |
| Maximum Current of Primary | 300 A |
| Maximum Current of Secondary | 5 A |
| Operating Temperature | -25 to 50 °C |
| Number of Modules | 3.5 |
| Dimensions of Installed Product | 60 x 50 x 56 mm |
| Width of Opening | 10 mm |
| Height of Opening | 30 mm |
| Bar Size | 30 x 10 mm |
