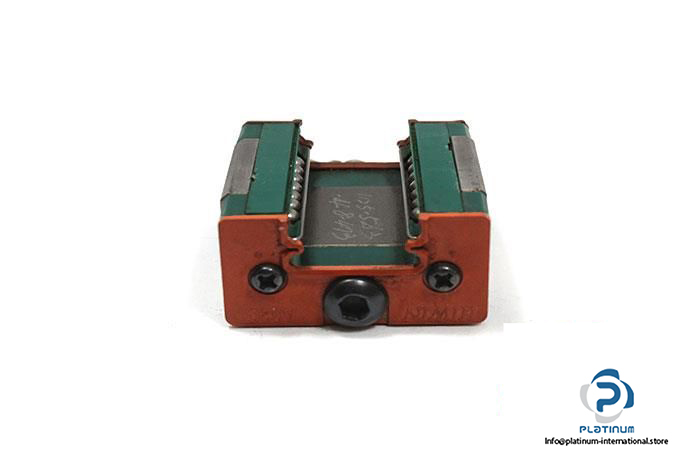

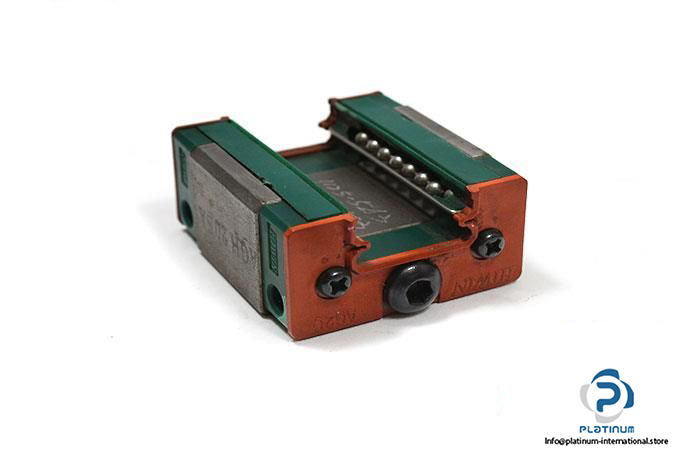

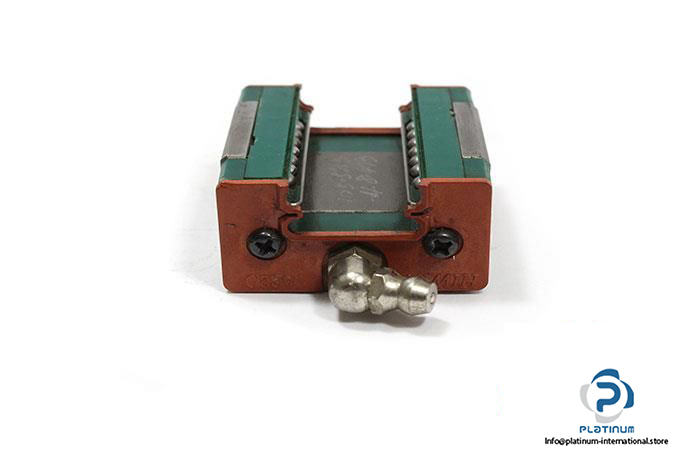

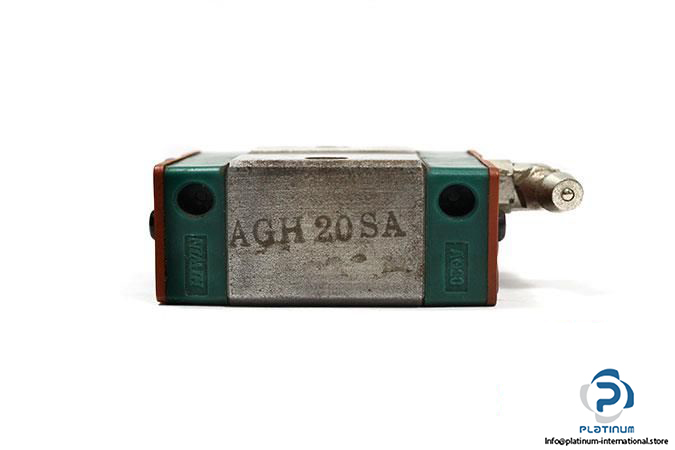

Hiwin AGH20SA Linear Guideway Block
Kullanılmış
Stokta2 ünitelerSevkiyata hazır
Lineer Rehber Bloğu Kare tip Hiwin AGH20SA 20 mm raylar için lineer blok, orta yük uygulamaları için yüksek rijitlik ve üst montaj ile tasarlanmıştır, kompakt otomasyon sistemleri için idealdir.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
HIWIN AGH20SA LINEAR GUIDEWAY BLOCK
The Hiwin AGH20SA is a square-type linear guideway block engineered for medium load applications, offering excellent rigidity and smooth linear motion. Designed for top mounting, it fits 20 mm rails and delivers high load capacity in compact spaces, ideal for automation and precision equipment.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: AGH20SA
| Size | 20 mm |
| Block Height | 22 mm |
| Block Width | 42 mm |
| Block Length | 48 mm |
| Total Height | 28 mm |
| Distances Between Holes | 32 mm |
| Thread Size | M5 x16 |
| Basic Dynamic Load Rating | 650 kgf |
| Basic Static Load Rating | 920 kgf |
| Rail Width | 20 mm |
| Rail Height | 15.5 mm |
| Block Type | Square |
| Load Type | Medium Load |
| Block Mounting Type | From Top |
