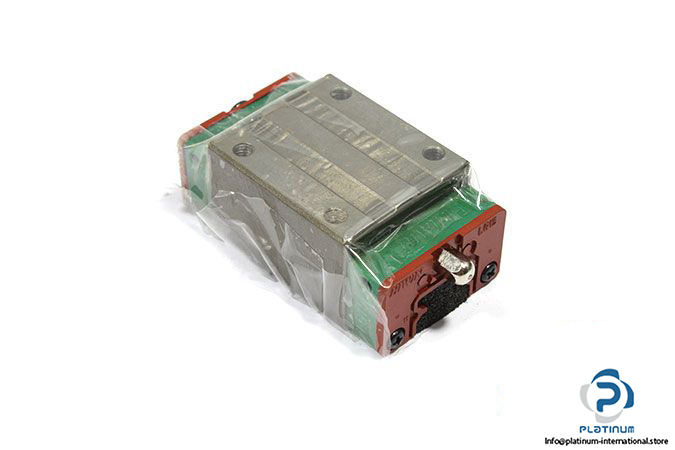

Hiwin LGH15CA Linear Guideway Block
Kullanılmış
Talep üzerine mevcut
76,50$
LINEER REHBER BLOĞU Hiwin'den ağır yük lineer blok, 15 mm boyut, kare tip, 1040 kgf dinamik ve 1680 kgf statik yük kapasitesine sahip, hassas, yüksek rijitlikte hareket kontrol sistemleri için mükemmel.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

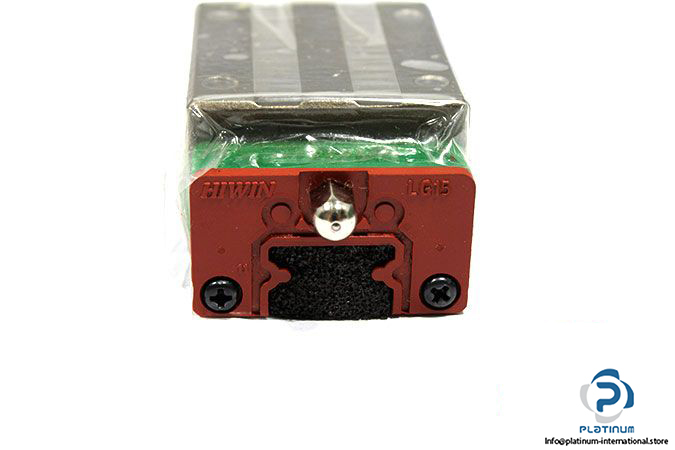

HIWIN LGH 15CAC LINEAR GUIDEWAY BLOCK
The Hiwin LGH 15CAC is a heavy-load square-type linear guideway block designed for high rigidity and precision in demanding motion systems. With a compact 15 mm size and robust load-bearing capacity, it is ideal for automation, machine tools, and high-performance linear motion applications.
Manufacturer: Hiwin
Type: Linear Guideway Block LGH

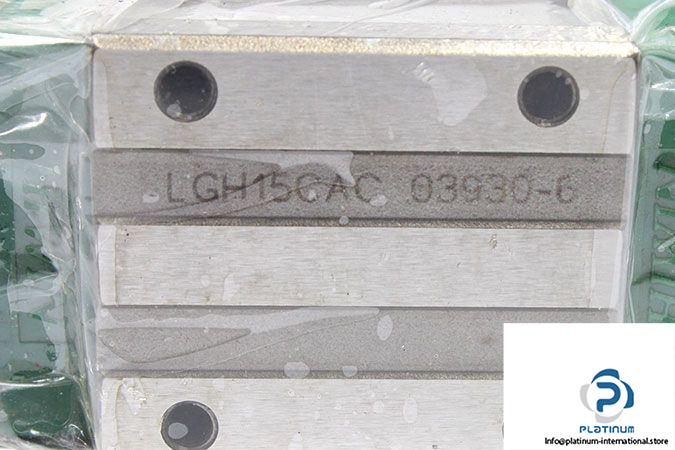

MNR: LGH 15CAC
Size: 15 mm

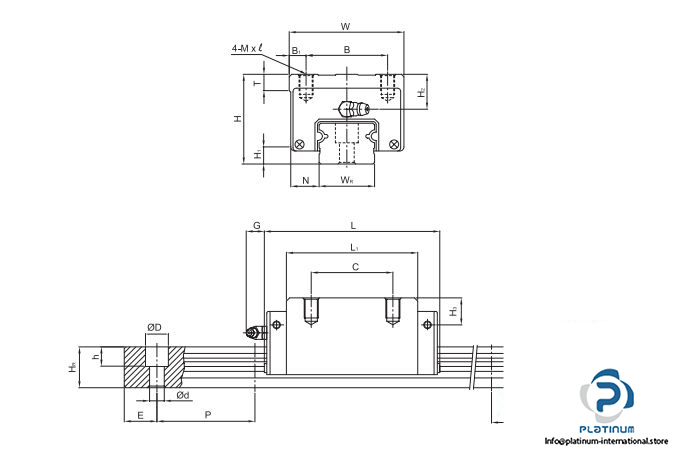

| Total Height H | 28 mm |
| Block Height | 23.5 mm |
| Block Width W | 34 mm |
| Block Length L | 60.6 mm |
| Distance Between Holes | 26, 26 mm |
| Block Type | H (Square Type) |
| Dynamic Load Rating (C) | 1040 kgf |
| Static Load Rating (C0) | 1680 kgf |
| Load Type | C (Heavy Load) |
