Hiwin MGW7C Linear Guideway Block
Yeni
Stokta24 ünitelerSevkiyata hazır
40,49$
Hiwin tarafından üretilen kompakt ve dayanıklı lineer kılavuz bloğu, 7 mm boyutunda yüksek hassasiyet ve düzgün hareket sunar ve dar alanlı endüstriyel uygulamalar için güçlü yük kapasitelerine sahiptir.
170JQP-202007BlockCompactComponentGuideGuidewayHighHiwinIndustrialLinearLoadM3MGW7CmmMotionrailSystemx6
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

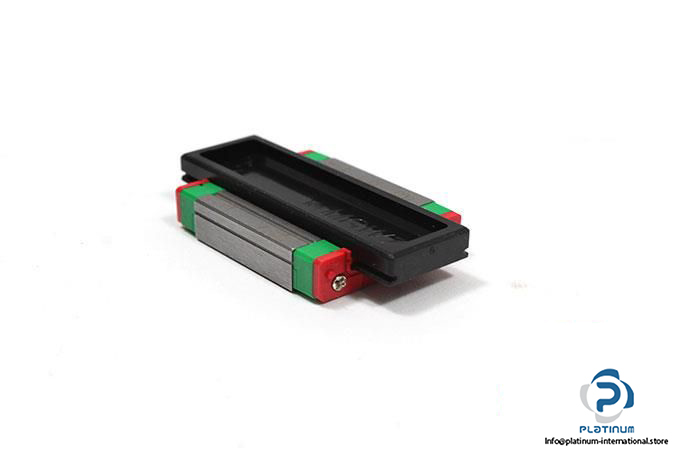

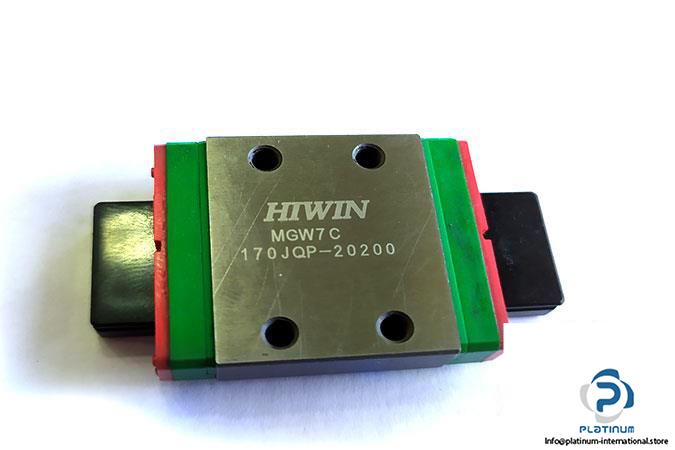

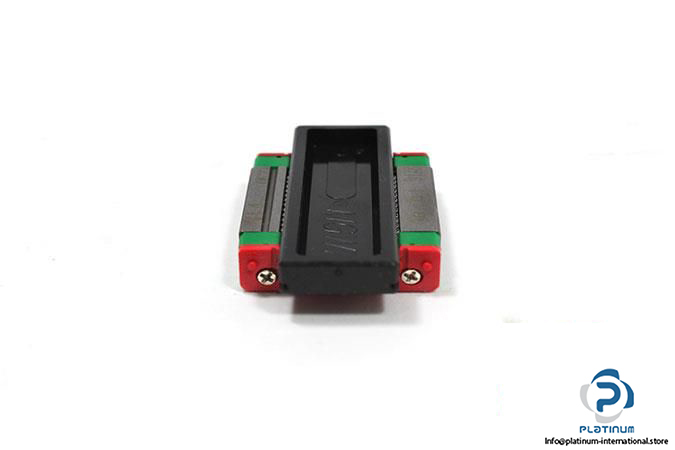

HIWIN MGW7C 170JQP-20200 LINEAR GUIDEWAY BLOCK
The Hiwin MGW7C 170JQP-20200 is a precision-engineered linear guideway block designed for compact linear motion systems. With high load ratings and a low-profile design, it is ideal for applications requiring smooth movement, accuracy, and durability in limited-space environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGW7C 170JQP-20200
| Size | 7 mm |
| Block Height | 7.1 mm |
| Block Width | 25 mm |
| Block Length | 31.2 mm |
| System Height | 9 mm |
| Distance Between Holes | 19, 10 mm |
| Rail Width | 14 mm |
| Rail Height | 5.2 mm |
| Block Type | Standard |
| Thread Size | M3 x6 |
| Basic Dynamic Load Rating | 1.37 kN |
| Basic Static Load Rating | 2.06 kN |
