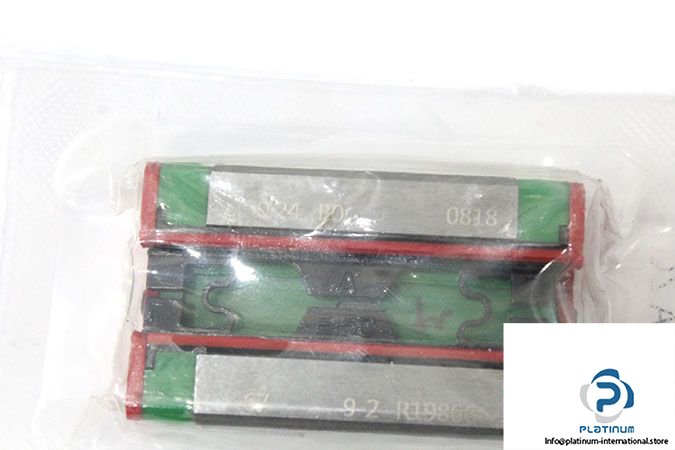

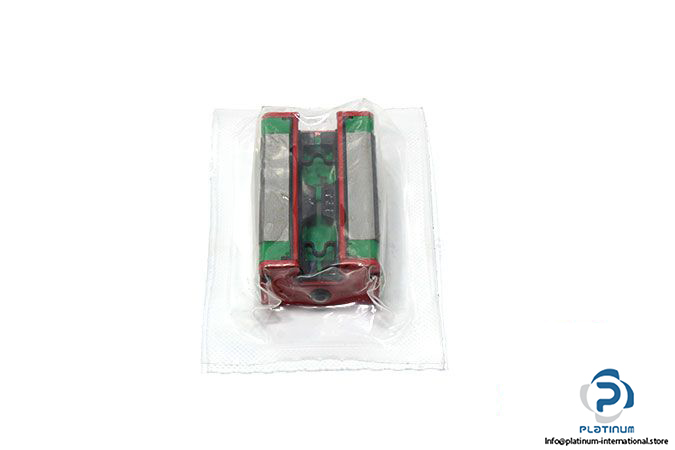

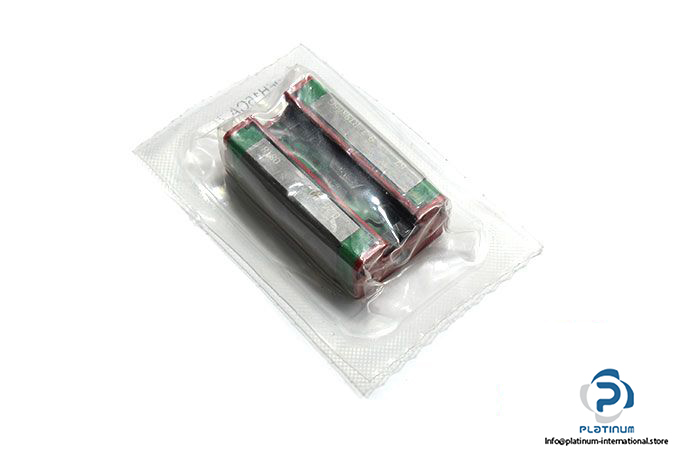

Hiwin QEH15CA Linear Guideway Block
Yeni
Stokta3 ünitelerSevkiyata hazır
LINEER KILİT BLOĞU Hiwin QEH15CA ağır yüklü lineer kılavuz bloğu QE Serisinden 15 mm boyut, SynchMotion Teknolojisi ve hassas otomasyon için kompakt düşük profilli kare tasarıma sahiptir.
15BlockGuideGuidewayHeavyHiwinIndustrialLinearLoadlowmmMotionProfileQEQEH15CASeriesSquareSynchMotion
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
HIWIN QEH15CA LINEAR GUIDEWAY BLOCK
This low-profile linear guideway block from Hiwin™s QE Series features SynchMotion„¢ Technology for smoother movement and reduced noise. Designed for heavy-load industrial applications, the QEH15CA offers high precision and compact dimensions ideal for limited-space systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QEH15CA

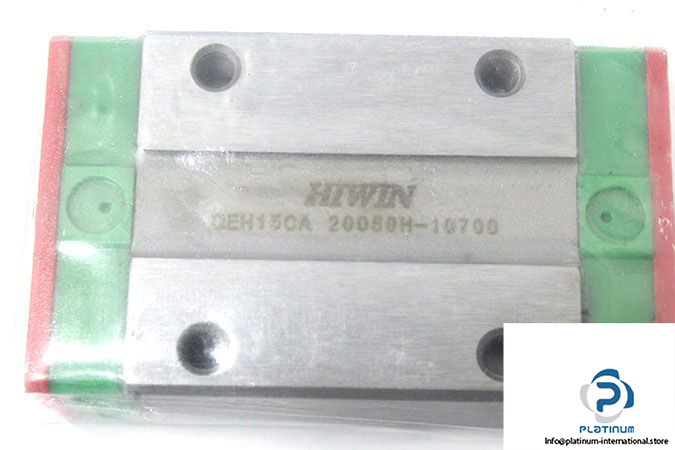

MRN: QEH15CA 20059H-10700
| Size | 15 mm |
| Total Height H | 24 mm |
| Block Width W | 34 mm |
| Block Length L | 56.8 mm |
| Block Height | 20 mm |
| Distance Between Holes | 26, 26 mm |
| Basic Load Rating “ Dynamic (Cr) | 12.5 kN |
| Basic Load Rating “ Static (C0r) | 15.2 kN |
| Mounting Bolts for Rail | M3x16 |
| Series | QE Series; Low Profile with SynchMotion Technology |
| Block Type | H (Square Type) |
| Load Type | C (Heavy Load) |
