Rexroth R044351201 Miniature Runner Block
Miniatür Koşucu Blok Rexroth R044351201 minyatür koşucu blok, boyut 15 mm, WNS formatı, yüksek dinamik ve statik yük taşıma kapasitesine sahip martensitik çelik yapım, hassas lineer hareket sistemleri için. CNC makineleri, otomasyon sistemleri ve kompakt endüstriyel ekipmanlar için ideal.
Rexroth R044351201 Miniature Runner Block
The Rexroth R044351201 miniature runner block is engineered for precision linear motion systems requiring compact dimensions, high rigidity, and reliable load performance.
Manufacturer: Rexroth
Type: Miniature Runner Block
MNR: R044351201
Recommended for precision linear guide systems, automation equipment, and compact motion control assemblies.
Please contact us via Ask for assistance with any inquiries.
| Size | 15 mm |
| Format | WNS “ Wide, Normal, Standard Height |
| Material | Martensitic Steel |
| Dynamic Load Capacity (C) | 5285 N |
| Static Load Capacity (C0) | 8610 N |
| Dynamic Torsional Moment Load Capacity (Mt) | 107 Nm |
| Static Torsional Moment Load Capacity (Mt0) | 174 Nm |
| Dynamic Longitudinal Moment Load Capacity (ML) | 30 Nm |
| Static Longitudinal Moment Load Capacity (ML0) | 49 Nm |
| Accuracy Class | N “ Normal |

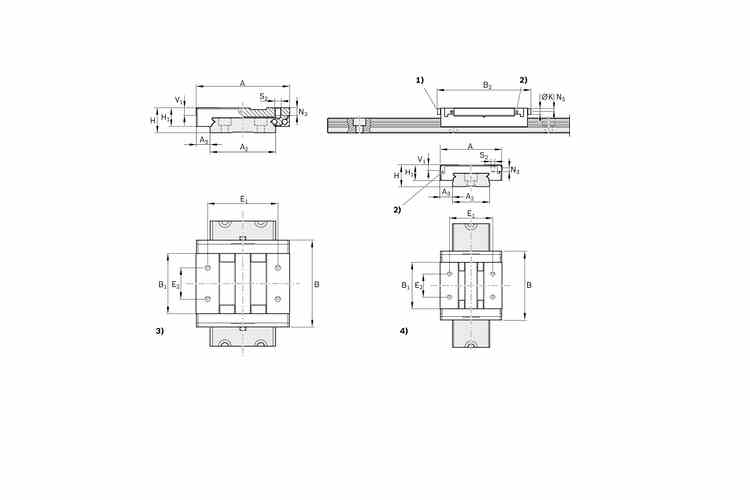

| Width (A) | 60 mm |
| Length (B) | 55.5 mm |
| Height (H) | 16 mm |
| Height (H1) | 12 mm |
| Admissible Operating Temperature | -10 °C to +80 °C |
