Hiwin QEW15CB Linear Guideway Block
Yeni
Stokta4 ünitelerSevkiyata hazır
DOĞRUSAL REHBER BLOĞU Hiwin tarafından ağır yük flanş tipi doğrusal blok, 15 mm ray boyutu, alt montaj, yüksek yük derecelendirmeleri ve otomasyon sistemlerinde düzgün ve sert hareket için optimize edilmiş boyutlar.
151801ZP-60200AutomationBlockBottomFlangeGuideGuidewayHeavyHiwinIndustrialLinearLoadM3x16mmmountQEW15CBrailType
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

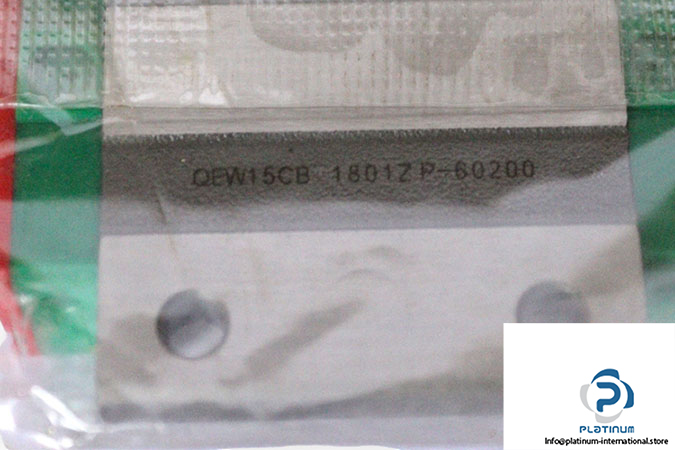

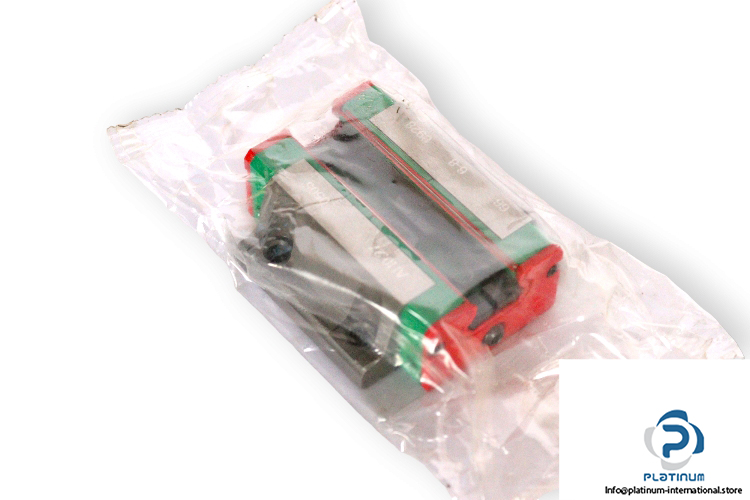

HIWIN QEW15CB 1801ZP-60200 LINEAR GUIDEWAY BLOCK
This heavy-load linear guideway block from Hiwin is engineered for high rigidity and smooth linear motion in demanding industrial applications. With a flange-type design, bottom mounting configuration, and precise dimensions, it ensures optimal load capacity and system stability in compact automation assemblies.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: QEW15CB 1801ZP-60200

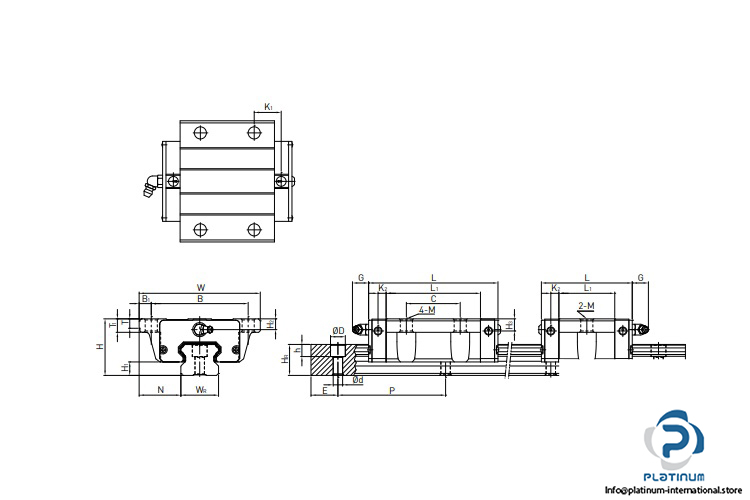

| Size | 15 mm |
| Block Height | 20 mm |
| System Height | 24 mm |
| Block Width (W) | 52 mm |
| Block Length (L) | 56.8 mm |
| Thread Size | M3X16 |
| Rail Width | 15 mm |
| Rail Height | 12.5 mm |
| Distance Between Holes | 41 mm, 26 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting | Bottom |
| Basic Dynamic Load Rating | 12.53 kN |
| Basic Static Load Rating | 15.28 kN |
