Hiwin QHW20CC Linear Guideway Block
Yeni
Stokta4 ünitelerSevkiyata hazır
Hiwin tarafından SynchMotion Teknolojili ağır yük lineer kılavuz blok, model QHW20CC, 20 mm boyutunda ve hassas ve sessiz hareket uygulamaları için 23 kN dinamik yük kapasitesine sahip.
2023BlockFlangeGuideGuidewayHeavyHiwinIndustrialkNLinearLoadmmMotionmountQHQHW20CCrailSeriesSynchMotionTop
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
HIWIN QHW20CC LINEAR GUIDEWAY BLOCK
The Hiwin QHW20CC is a heavy-load linear guideway block designed for precision motion control applications. Built with SynchMotion„¢ Technology, it provides smooth linear motion with reduced friction and noise, making it ideal for high-performance industrial automation systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHW20CC

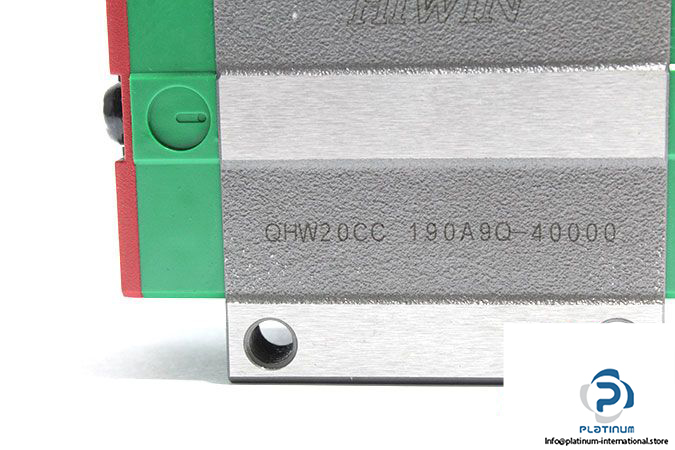

MRN: QHW20CC 190A9Q-40000
| Size | 20 mm |
| Total Height H | 30 mm |
| Block Width W | 63 mm |
| Block Length L | 76.7 mm |
| Block Height | 25.4 mm |
| Distance Between Holes | 53 mm, 40 mm |
| Basic Load Rating, Dynamic Cr | 23 kN |
| Basic Load Rating, Static C0r | 25.6 kN |
| Series | QH Series (Heavy Load Type with SynchMotion Technology) |
| Block Type | W (Flange Type) |
| Load Type | C (Heavy Load) |
| Block Mounting Type | C (Top or Bottom) |
Daha Fazlası HIWIN
Kullanılmış
HIWIN

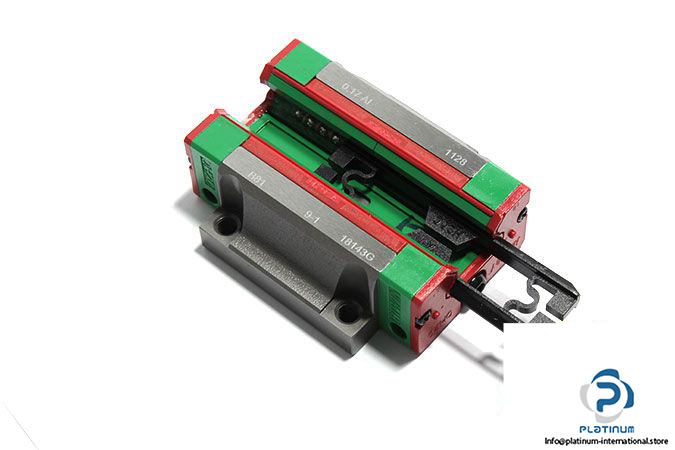

Hiwin HGH20CA Linear Guideway Block
SKU: 1097129
Adet: 4
Teklif üzerine temin edilebilir
Kullanılmış
HIWIN

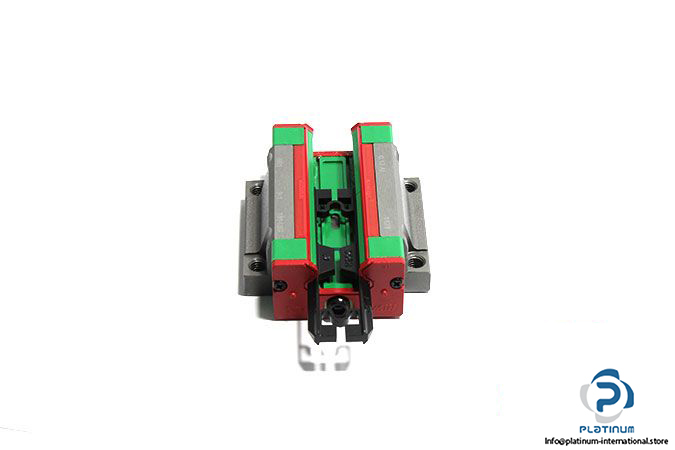

Hiwin LGW15CC Linear Guideway Block
