Motion Control Rotary Encoders

Hubner Berlin FOG 9 DN 1024 R Incremental Encoder

Name: HUBNER BERLIN FOG 9 DN 1024 R INCREMENTAL ENCODER
SKU: 968804
Price: 199.99 USD
Availability: InStock

hubnerbaumer-FOG-9-DN-1024-R-incremental-encoder

hubnerbaumer-fog-9-dn-1024-r-incremental-encoder-1

hubnerbaumer-fog-9-dn-1024-r-incremental-encoder-2

hubnerbaumer-fog-9-dn-1024-r-incremental-encoder-3

hubnerbaumer-fog-9-dn-1024-r-incremental-encoder-4

Kullanılmış

Stokta1 birimSevkiyata hazır

199,99$

INCREMENTAL ENCODER HUBNER BAUMER FOG 9 DN 1024 R, 1024 PPR çözünürlüğe, TTL çıkışa ve sağlam şaft tasarımına sahip dayanıklı bir artımlı enkoderdir. Endüstriyel otomasyonda hassas hareket geri bildirimi için idealdir.

Üretici

HUBNER BAUMER

SKU

968804

Kategori

Rotary Encoders

Koşul

Kullanılmış

1024 9 Baumer Connector DN Encoder fog High-Speed Hubner Incremental Industrial IP66 M23 PPR R RS422 shaft Solid TTL

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

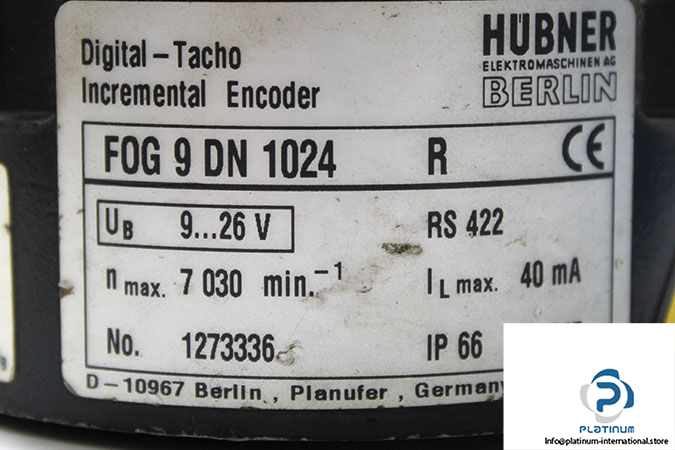

HUBNER BAUMER FOG 9 DN 1024 R INCREMENTAL ENCODER

The HUBNER BAUMER FOG 9 DN 1024 R is a high-precision incremental encoder built for reliable and accurate position detection in demanding industrial environments. Designed with a robust aluminium die-cast housing and featuring EURO flange B10, it ensures consistent performance even under harsh conditions.

Manufacturer: HUBNER BAUMER

Type: Incremental Encoder

Model: FOG 9 DN 1024 R

Part No.: 1273336

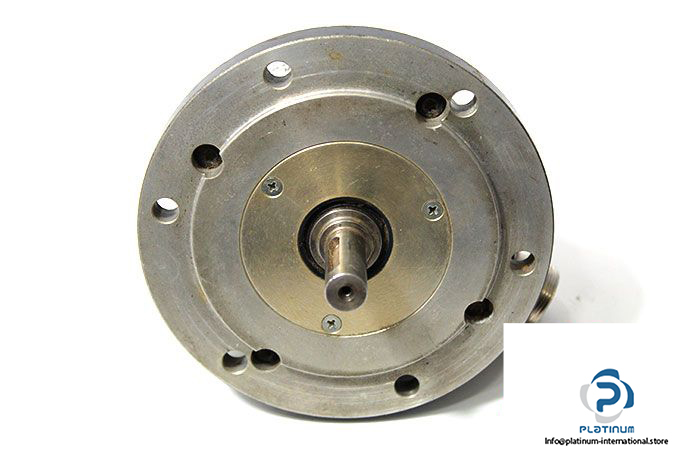

Flange Design	EURO flange B10

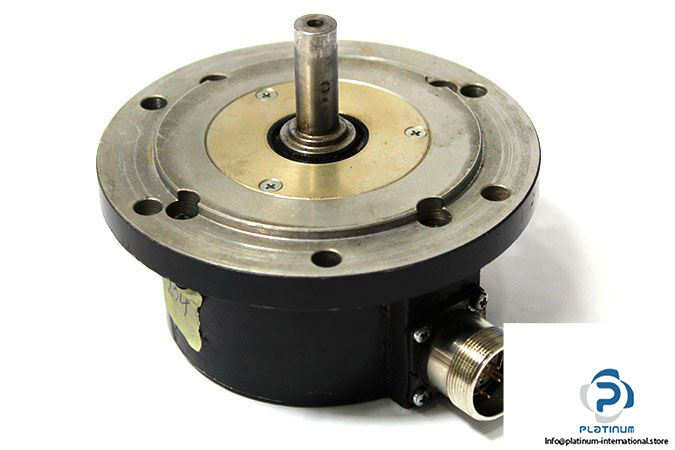

Shaft Design	Solid Shaft
Shaft Diameter	11 mm
Resolution	1024 Pulse Per Revolution (PPR)
Power Supply	9 / 26 VDC
Max Current	40 mA
Output Frequency	120 KHz
Max Speed	7030 RPM
Output Stages	TTL (RS422)

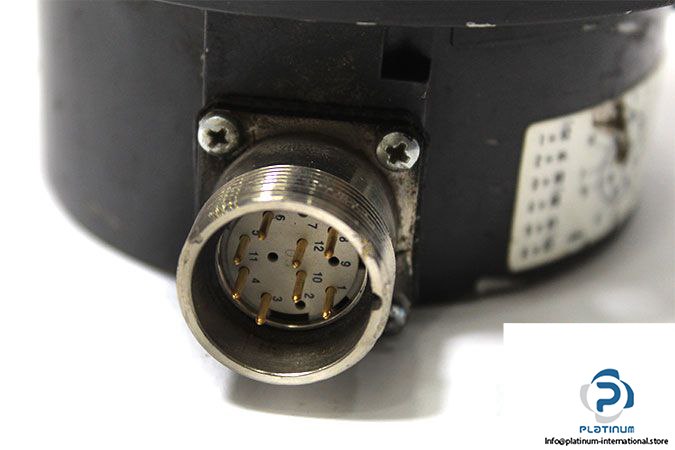

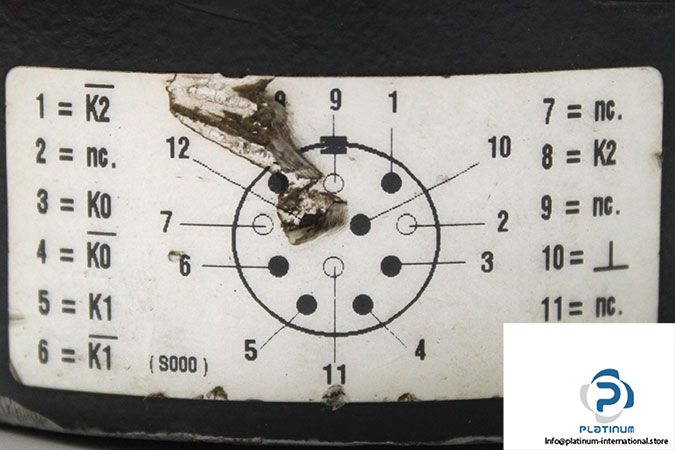

Type of Connection	Connector M23, 12-Pin
Material	Housing: Aluminium die-cast
Protection Class	IP 66
Operating Temperature	-25 / 100 °C
