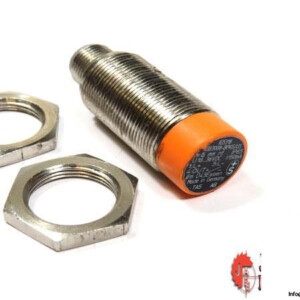

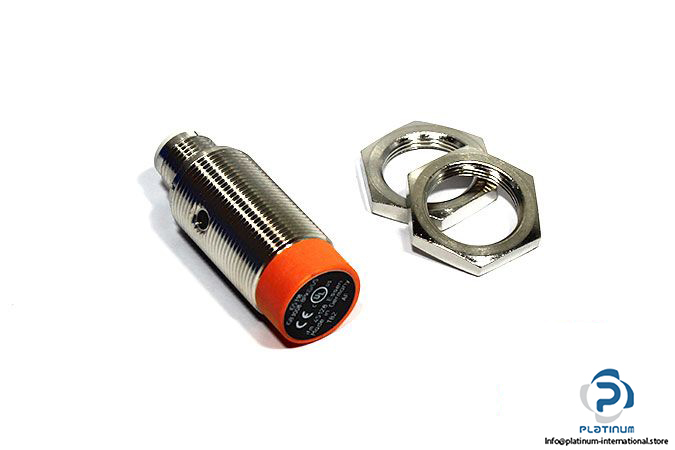

IFM IG5318 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Part No.: IG5318

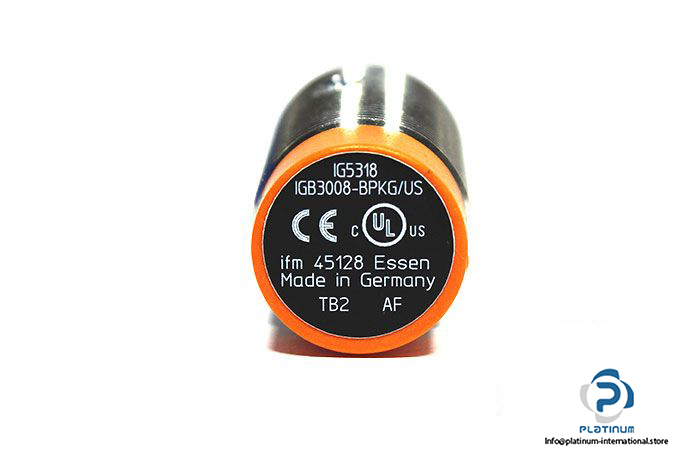

MRN: IGB3008-BPKG/US

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10 % mm

Operating Distance: 0 … 6.48 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop: 2.5 V DC

Switching Output Current: 100 mA DC

Current Consumption: 10 mA

Switching Frequency: 200 Hz DC

Electrical Design: PNP

Output: Normally Open

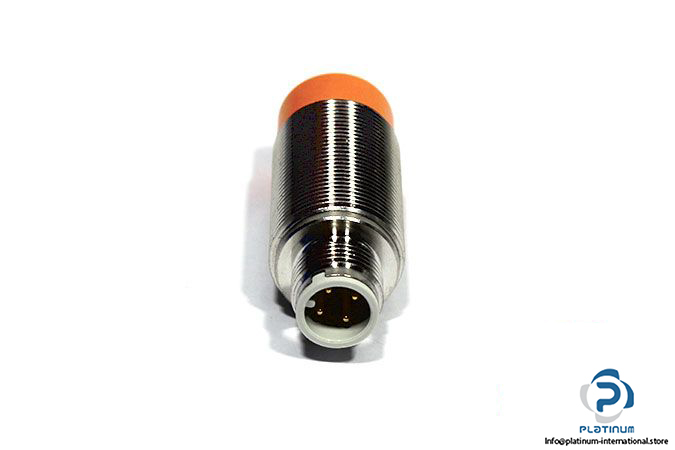

Connector Type: M12 Connector, (Gold-Plated Contacts)

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80 °C

Diameter, Housing Length: 18, 50 mm

Material: Brass White Bronze Coated; Sensing Face: PBT Orange

Mounting: Non-Flush Mountable

Weight: 50 g
