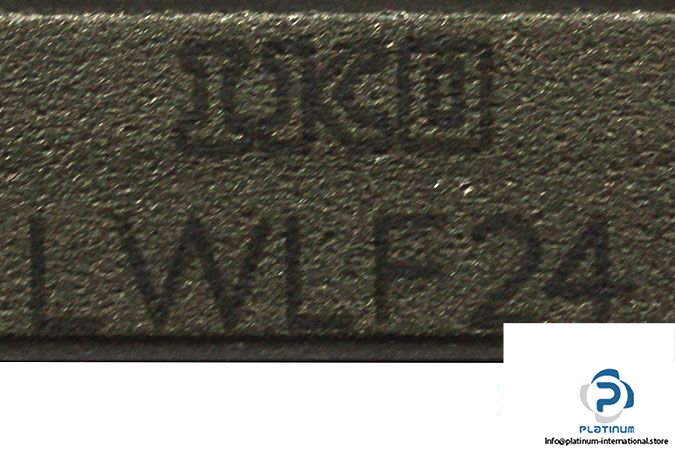

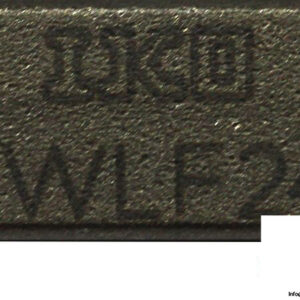

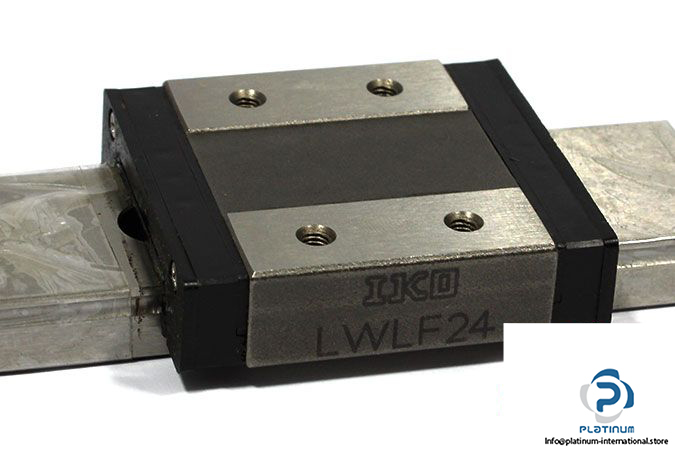

IKO LWLF24 Linear Guideway Block

Manufacturer: IKO

Type: Linear Guideway Block

Model: LWLF 24

Size: 24

Basic Load Ratings:

Dynamic C: 4310 N

Static C₀: 6200 N

Block Type: Square Type

Structure: Ball Non-Retained Type

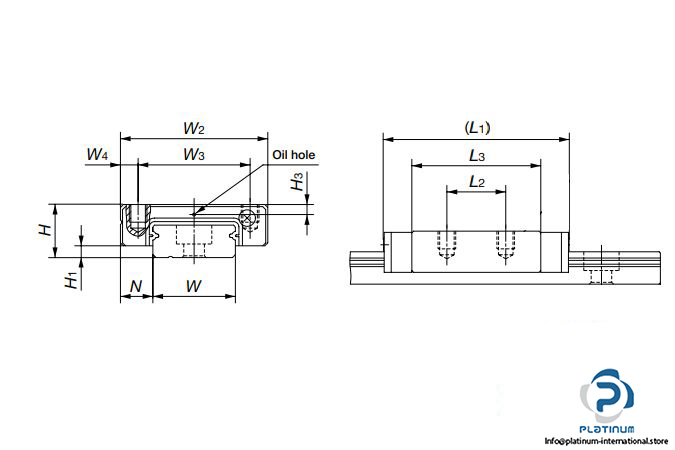

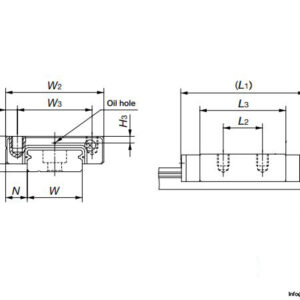

Dimensions

Total Height H: 14 mm

Block Width W₂: 40 mm

Block Length L₁: 44 mm

W₃: 28 mm

L₂: 15 mm

Block Weight: 0.08 kg

Track rail Weight (per 100 mm): 0.15 kg

Rail available on request from 60 mm to 600 mm
