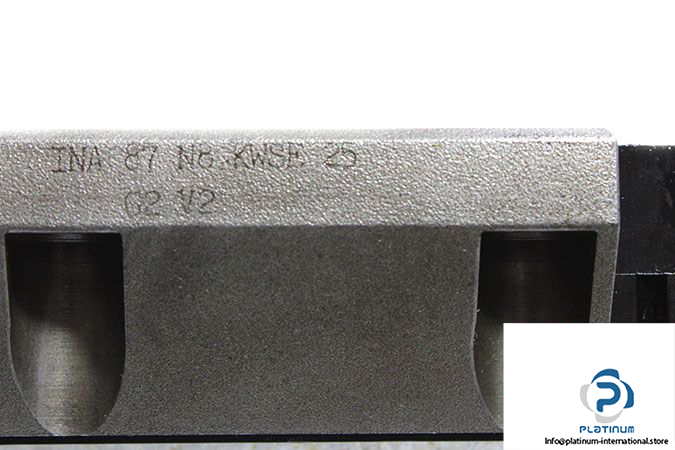

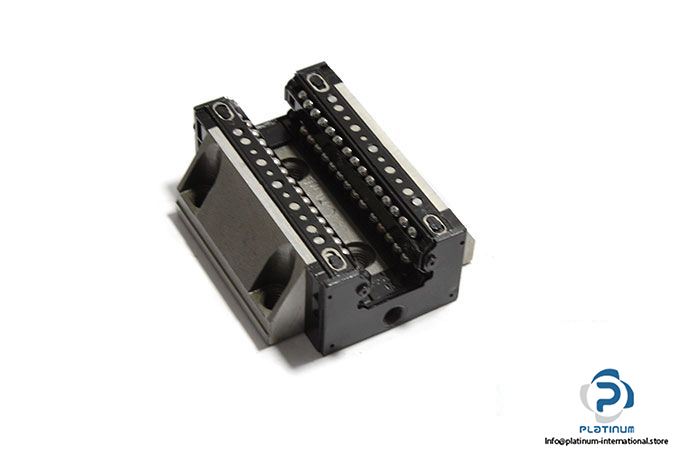

INA KWSE25 G2 V2 Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type: Six-Row Linear Recirculating Ball Bearing Carriage

Model: KWSE25-G2-V2

Size: 25 mm

Basic Load Ratings (Compressive Load):

Dynamic C: 28000 N

Static C₀: 67000 N

Basic Load Ratings (Tensile Load):

Dynamic C: 26000 N

Static C₀: 45000 N

Basic Load Ratings (Lateral Load):

Dynamic C: 28000 N

Static C₀: 47000 N

Static Moment Rating About:

X axis M_0x: 840 Nm

Y axis M_0Y: 510 Nm

Z axis M_0Z: 450 Nm

Preload: V2

Accuracy Class: G2

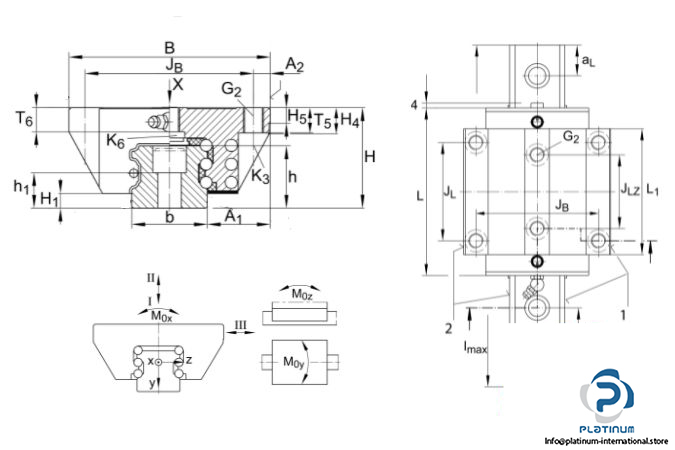

Dimensions:

Height system H: 36 mm

Width carriage B: 70 mm

Overall length carriage L: 81.8 mm

Weight: 0.63 kg
