INA NUKRE62 Stud Type Track Roller
Yeni
Stokta2 ünitelerSevkiyata hazır
Civata Tipi Yürüyüş Makarası Yüksek performanslı INA / Schaeffler NUKRE62 yürüyüş makarası, 24 mm delik çapı, 62 mm dış çap ve 80 mm genişlik. Endüstriyel hareket sistemlerinde yüksek radyal yük kapasitesi ve düzgün dönüş için tasarlanmıştır.
bearingCamComponentDutyFollowerHeavyInaIndustrialMechanicalMotionNUKRE62RollerSchaefflerStudSystemtrackType
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

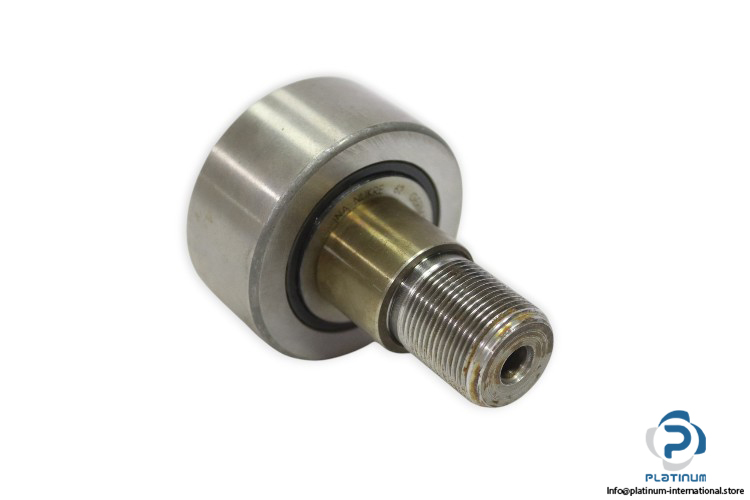

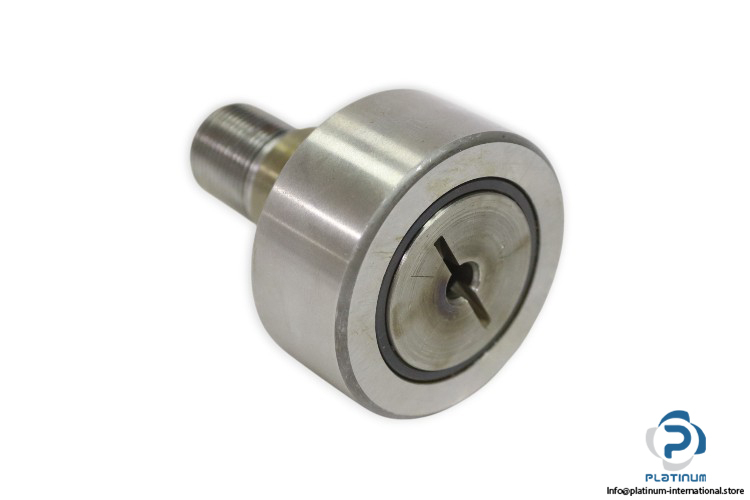

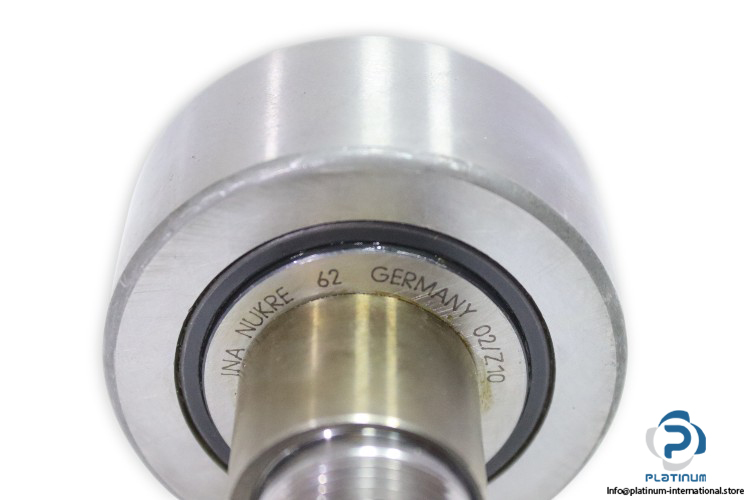

INA / Schaeffler NUKRE62 Stud Type Track Roller
The INA / Schaeffler NUKRE62 is a precision-engineered stud type track roller designed to handle high radial loads and deliver reliable performance in demanding motion systems.
Manufacturer: INA / Schaeffler
Type: Stud Type Track Roller
Model: NUKRE62
Code: 02/Z10
| Bore Diameter (d) | 24 mm |
| Outer Diameter (D) | 62 mm |
| Bearing Width (B) | 80 mm |
| Basic Dynamic Load Rating, Radial | 41,000 N |
| Basic Static Load Rating, Radial | 54,000 N |
| Fatigue Load Limit, Radial | 7,400 N |
| Speed on Permanent Grease Lubrication | 2,600 1/min |
| Permissible Static Load, Radial | 46,000 N |
| Permissible Dynamic Load Outer Ring, Radial | 23,300 N |
