INA PCFT50 Flanged Housing Unit

Name: INA PCFT50 FLANGED HOUSING UNIT
SKU: 1030825
Availability: LimitedAvailability

ina-PCFT50-flanged-housing-unit-(new)-(carton)

ina-PCFT50-flanged-housing-unit-(new)-(carton)-1

ina-PCFT50-flanged-housing-unit-(new)-(carton)-2

ina-PCFT50-flanged-housing-unit-(new)-(carton)-3

ina-PCFT50-flanged-housing-unit-(new)-(carton)-4

ina-PCFT35-XL-flanged-housing-unit-(new)-(carton)-5

Yeni

Stokta2 ünitelerSevkiyata hazır

Üretici: INA Tip: iki cıvatalı flanşlı gövde üniteleri Model: PCFT 50 Değiştirir: PCFT50-XL Gövde: GG. CFT10 Rulman numarası: GRAE50-NPP-B

Üretici

INA?

SKU

1030825

Kategori

Plummer Block Housing Units

Koşul

Yeni

50 bearing bearings Cast Collar Eccentric flanged Housing Iron locking mm p Pcft Seals Two-Bolt Units

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

Manufacturer: INA
Type: two-bolt flanged housing units
Model: PCFT 50
Replaces: PCFT50-XL
Housing: GG. CFT10

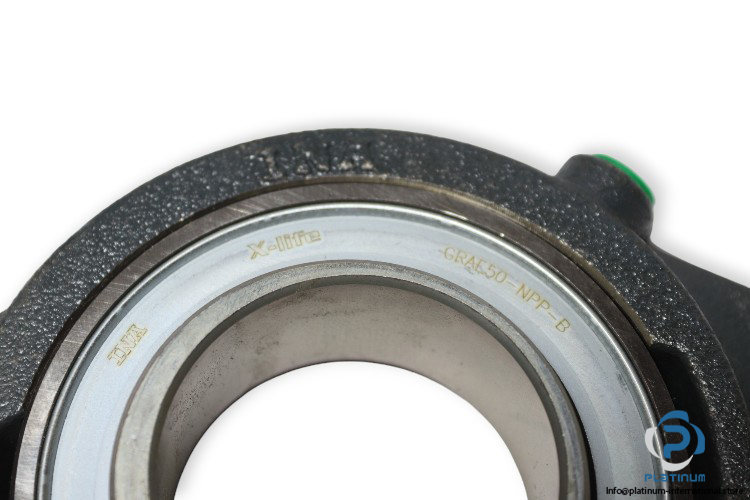

Bearing designation: GRAE50-NPP-B

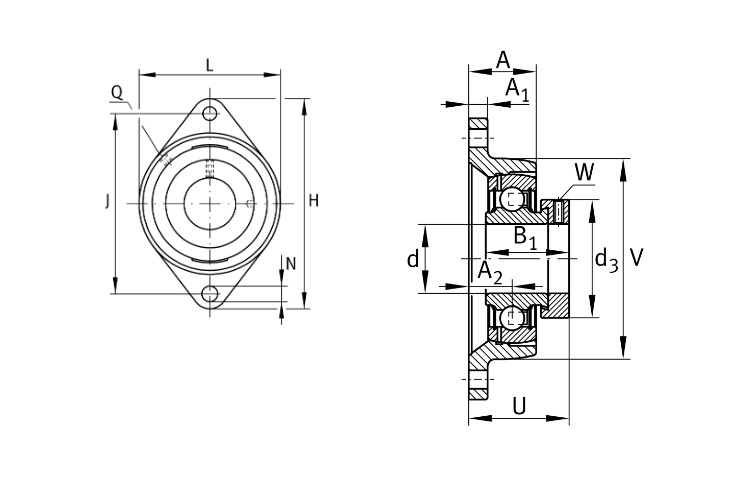

Bore Diameter d: 50 mm
Flange width L: 116 mm
Height flange H: 190 mm
Total height unit U: 51.9 mm
Distance fixing bore J: 157 mm
Fixing bore N: 14 mm
Basic dynamic load rating: 37500 N
Basic static load rating: 23200 N
Fatigue load limit: 1090 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron
