Johnson Pump CL 50-125 Circulation Pump
Yeni
Stokta1 birimSevkiyata hazır
1 499,99$
Sirkülasyon Pompası JOHNSON PUMP CL50-125, 0,25 kW gücünde, dökme demir gövdesine sahip ve 400 m³/h'ye kadar yüksek akış kapasitesi olan sağlam bir endüstriyel sirkülasyon pompasıdır; güvenilir çalışma için LAFERT JOHNSON ST 71C4 motor ile donatılmıştır.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

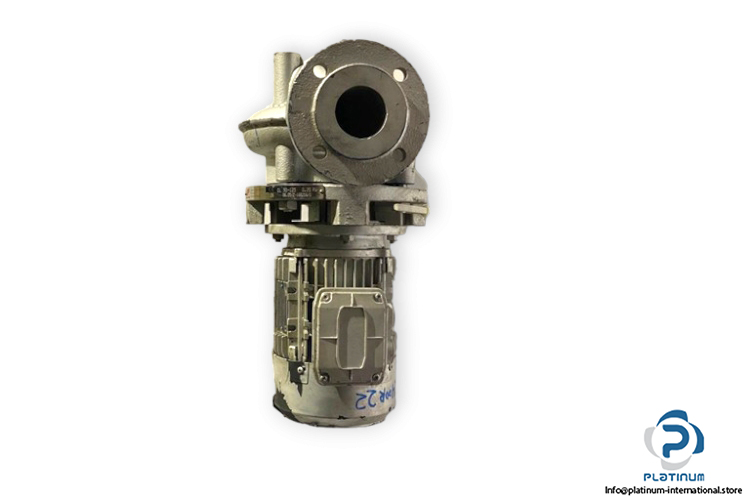

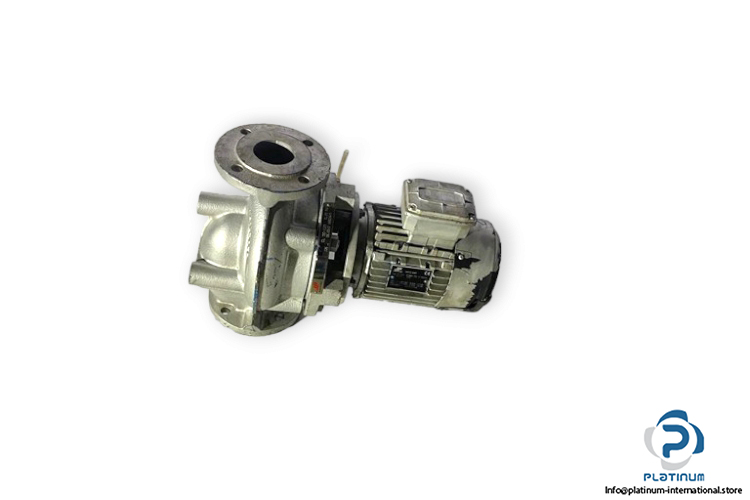

JOHNSON PUMP CL50-125 Circulation Pump
The JOHNSON PUMP CL50-125 is a durable circulation pump designed for efficient fluid movement in industrial systems. With its robust cast-iron construction and reliable performance at high temperatures and pressures, it ensures dependable operation in demanding applications.
Manufacturer: JOHNSON PUMP
Type: Circulation Pump

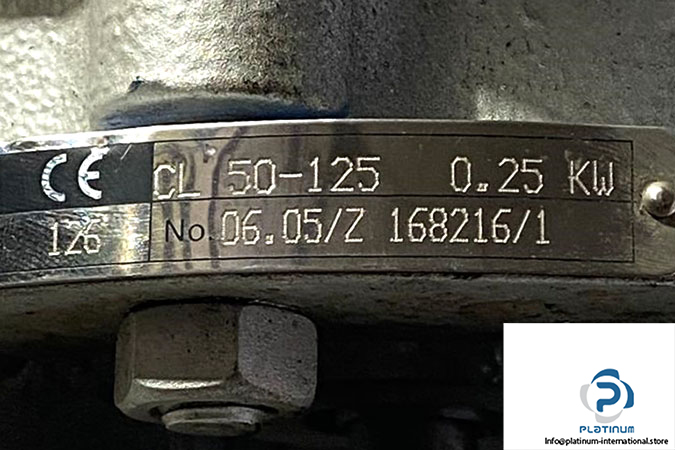

Model: CL50-125
Part No.: 06.05/Z 168216/1
Ref No.: 126
Attachment
| Rated Power | 0.25 kW |
| Pump Casing Material | Cast Iron |
| Maximum Capacity | 400 m³/h |
| Maximum Delivery Head | 28 m |
| Maximum Temperature | 140°C |
| Maximum Operating Pressure | 6“10 bar |
| Nominal Motor Speed | 1450 rpm |

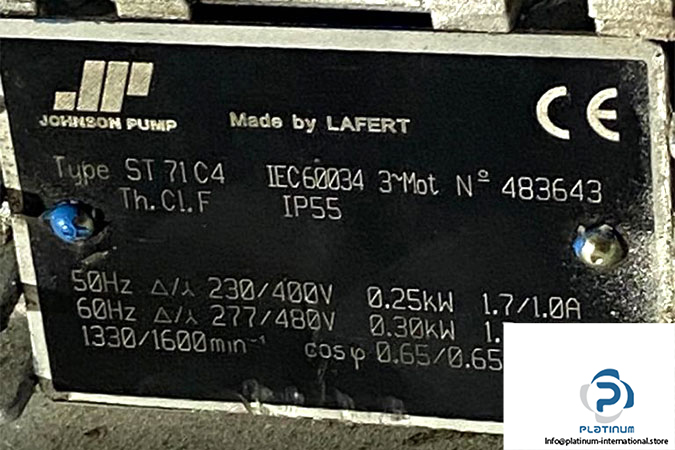

| Attachment | JOHNSON PUMP ST 71C4 Motor |
| Part No. | 483643 |
| Standard | IEC60034 |
| Voltage Rating @ 50 Hz | 230 / 400 V delta/star |
| Current | 1.7 / 1.0 A delta/star |
| Power Rating | 0.25 kW |
| Voltage Rating @ 60 Hz | 277 / 480 V delta/star |
| Current | 1.7 / 1.0 A delta/star |
| Power Rating | 0.3 kW |
| Protection Class | IP55 |
| Speed Rating | 1330 / 1600 r/min |
| Power Factor | 0.65 / 0.65 |
