Leuze KD U-M8-4A-V1-020 Connection Cable
Yeni
Stokta2 ünitelerSevkiyata hazır
M8 4 pin dişi bağlantı kablosu, 2 m uzunluk, 30 V AC/DC, 4A, IP65/IP67 koruma sınıflandırması, endüstriyel otomasyon sistemleri için kimyasal dayanımlı PVC kılıf.
30V4ACAutomationCablechemicalconnectionConnectordcIndustrialIP67KDLeuzeM8pinPVCResistantSensorSheathedU-M8-4A-V1-020
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
LEUZE KD U-M8-4A-V1-020 Connection Cable
The LEUZE KD U-M8-4A-V1-020 is a high-quality industrial connection cable designed for reliable signal and power transmission in automation systems. Featuring an M8 4-pin female connector with open wire end, this cable ensures secure connectivity and durable performance in demanding environments.
Manufacturer: LEUZE
Type: Connection Cable
Model: KD U-M8-4A-V1-020
Part No.: 50130848
Code: 27114 / 7295-08061-6110200
| Cable Length | 2 m |
| Operating Voltage | Max. 30 V AC/DC |
| Cable Rating | 30 VAC/DC / 4A, AWG 24 |
| Connector 1 | 4-Pins, Female, M8, Axial |
| Connector 2 | Open End, 4 Wires, Male |
| Type of Connection | Connector / Open End |
| Thread Size | M8 |
| No. of Pins | 4-Pin |
| Connector LED | No |
| Lock | Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking |
| Width Across Flats | 9 mm |
| Number of Conductors | 4 Piece(s) |
| Sheathing Color | Black |
| Shielded | No |
| Silicone-Free | Yes |
| Sheathing Material | PVC |
| Wire Insulation | PVC |
| Suitability for Drag Chains | No |
| Outer Sheathing Properties | Free of CFC, cadmium, silicone and lead, easily machine-processable |
| Outer Sheathing Resistance | Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1 |
| Bending Radius (Flexible Laying, Min.) | Min. 10 x cable diameter |
| Bending Radius (Stationary Laying, Min.) | Min. 5 x cable diameter |
| Ambient Temperature (Flexible Use) | -5 ... 80 °C |
| Ambient Temperature (Stationary Use) | -30 ... 80 °C |
| Degree of Protection | IP65 / IP67 |
| Approvals | c UL US |
| Application | Chemical Resistant |
Daha Fazlası LEUZE
Yeni
LEUZE
Leuze KD U-M12-5A-V1-300 Connection Cable
SKU: 1095602
Adet: 12
Teklif üzerine temin edilebilir
Yeni
LEUZE

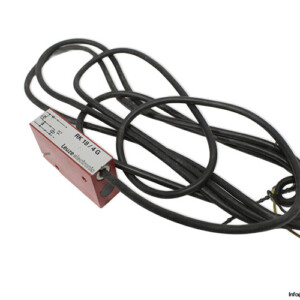

Leuze RK 18/4 G Retro-Reflective Photoelectric Sensor
