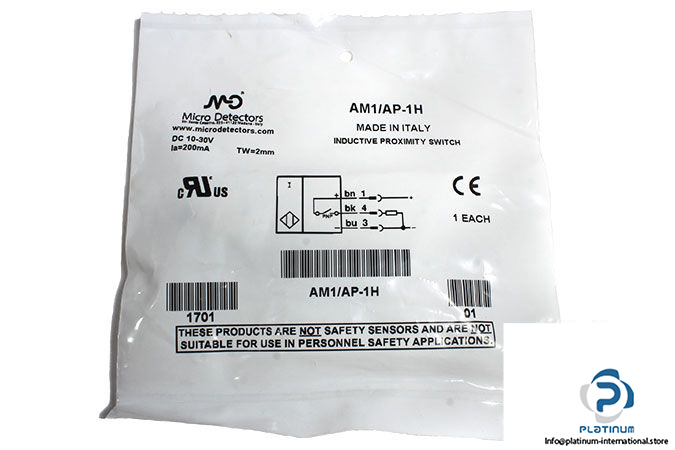

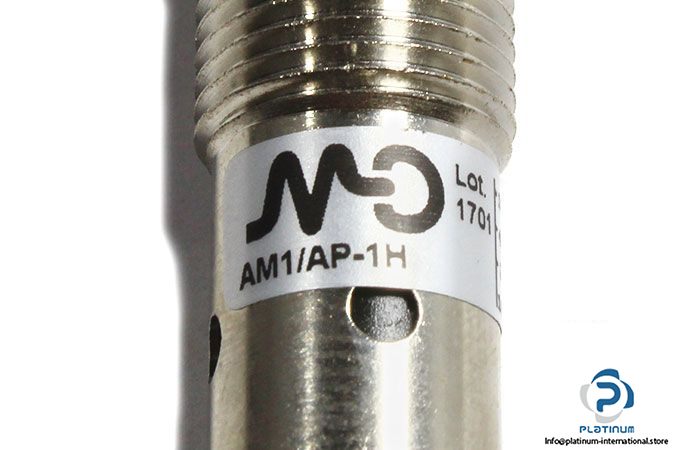

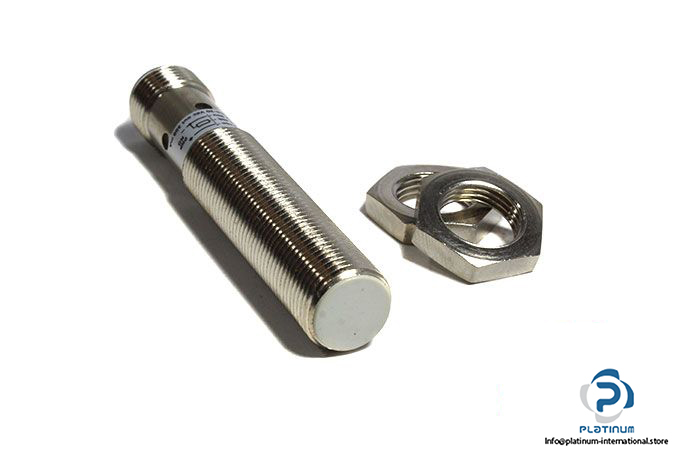

Micro Detectors AM1-AP-1H Inductive Proximity Sensor

Manufacturer: M.D. Micro Detectors

Type: Inductive Proximity Sensor

Series: MA

Model: AM1/AP-1H

Sensing Range: 2 mm

Mounting: Flush

Operating Voltage: 10 … 30 V DC

Load Current: 200 mA

No-Load Supply Current: 20 mA

Output Type: PNP

Output State: NO

Ambient Temperature: -25 … 70 °C

Degree of Protection: IP67

Connection: M12 Connector, 4-Pins

Housing Material: Nickel-Plated Brass

Diameter, Housing Length: 12, 65 mm

Weight: 0.03 kg
