Moeller DIL M 32-10 Contactor

Name: MOELLER DIL M 32-10 CONTACTOR
SKU: 1086993
Price: 49.99 USD
Availability: InStock

Yeni

Stokta1 birimSevkiyata hazır

49,99$

CONTACTOR

Moeller DILM32-10 contactor from xStart series with 3 poles, 230/240 V coil, 40 A thermal current, 15 kW @ 400 V rating, 1 NO auxiliary contact, and compact 97 Ã— 85 Ã— 45 mm size.

Üretici

MOELLER

SKU

1086993

Kategori

Contactors & Accessories

Koşul

Yeni

15kW 230v 277260 400V 40A AC-3 AC-4 coil Contactor DIL DILM32-10 Duty Industrial M(C)32 Moeller motor xStart

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

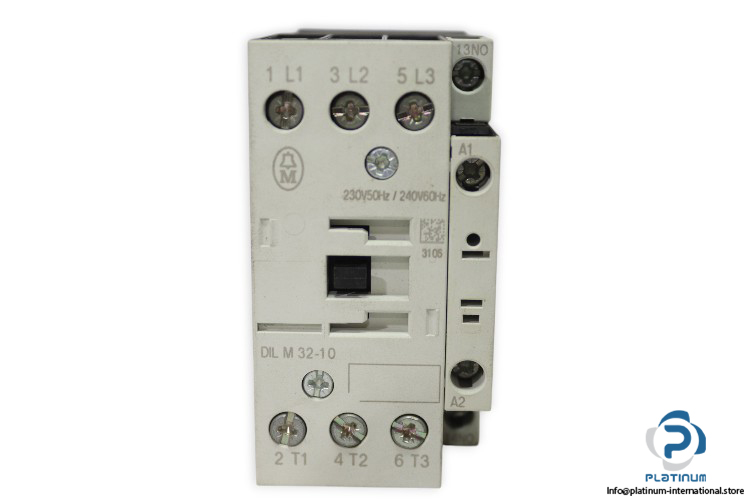

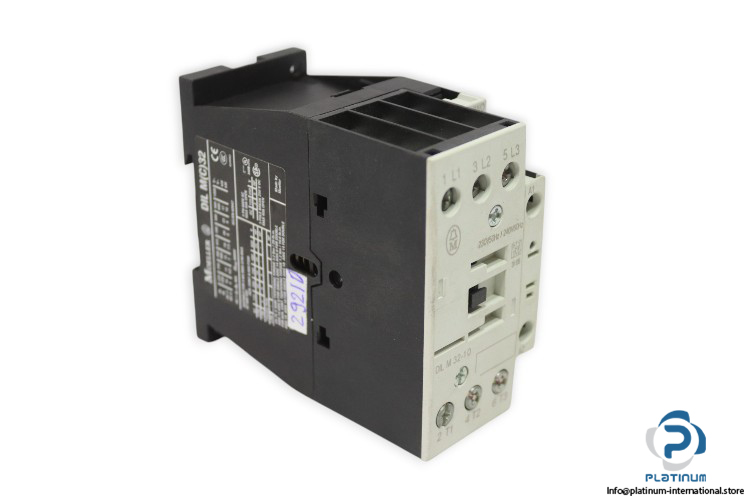

Moeller DILM32-10 Contactor (xStart Series)

The Moeller DILM32-10 is a robust contactor from the xStart series, engineered for reliable motor control and switching applications. With a 230/240 V coil, 40 A thermal current, and power ratings up to 17 kW, it delivers dependable performance for both AC-3 and AC-4 duty categories.

Manufacturer: Moeller

Type: Contactor

Model: DILM32-10 (DIL M(C)32)

Part No.: 277260

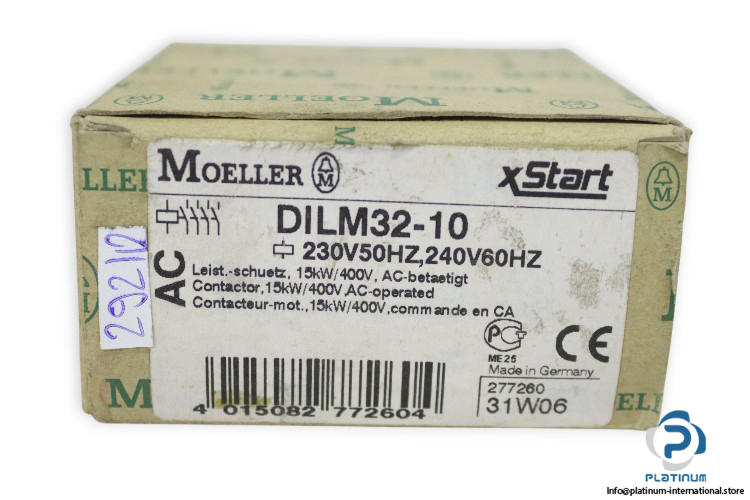

Code: 3106/31W06/ME 25

Serial No.: 4015082 772604

Series: xStart

Power Ratings

Main Circuit Wiring

Auxiliary Contact Wiring

Dimensions

No. of Poles	3
Coil Voltage	230 V 50 Hz / 240 V 60 Hz
Power Rating	15 kW @ 400 V (AC-3 duty)
Thermal Current (Ie)	40 A
Utilization Category	AC-3 / AC-1
Rated Insulation Voltage (Ui)	690 V
Impulse Withstand Voltage (Uimp)	8 kV
Breaking Capacity	Suitable for 5 kA RMS symmetric max at 600 V AC
Auxiliary Contacts	1 NO (10 designation)

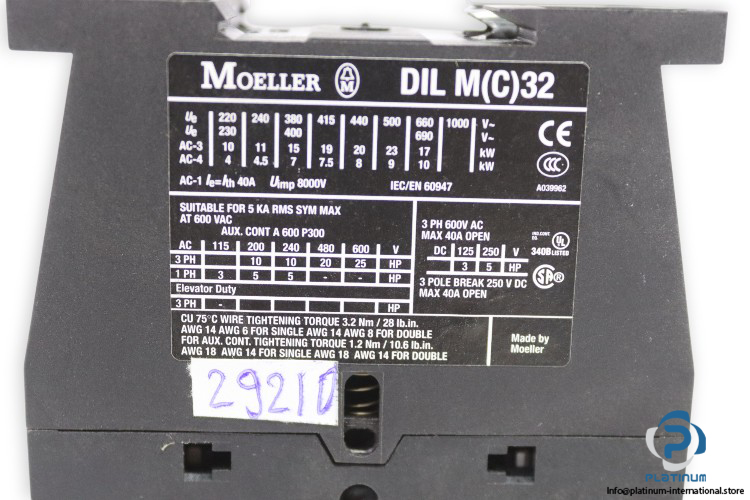

AC-3	10 kW @ 220/230 V, 15 kW @ 380/400 V, 17 kW @ 660/690 V
AC-4	4 kW @ 220/230 V, 7 kW @ 380/400 V, 10 kW @ 660/690 V
Horse Power @ 200/240 V	5 HP (3 PH / 1 PH)
Conductor Type	Copper conductors (Cu 75 °C)
Tightening Torque	3.2 Nm / 28 lb·in
Wire Size (Single)	AWG 14 / AWG 6
Wire Size (Double)	AWG 14 / AWG 8
Tightening Torque	1.2 Nm / 10.6 lb·in
Wire Size (Single)	AWG 18 / AWG 14
Wire Size (Double)	AWG 18 / AWG 14
Size	97 x 85 x 45 mm
