Motor Power T85.SR.4.2.E.L.12.003.A.02.18.101 Servo Motor
Kullanılmış
Talep üzerine mevcut
400,00$
SERVO MOTOR
Motor Power T85.SR.4.2.E.L.12.003.A.02.18.101 is a compact Tetra Servo Motor delivering 4.2 Nm torque, 4500 rpm speed, and encoder-based feedback with IP65 protection”ideal for industrial automation systems.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

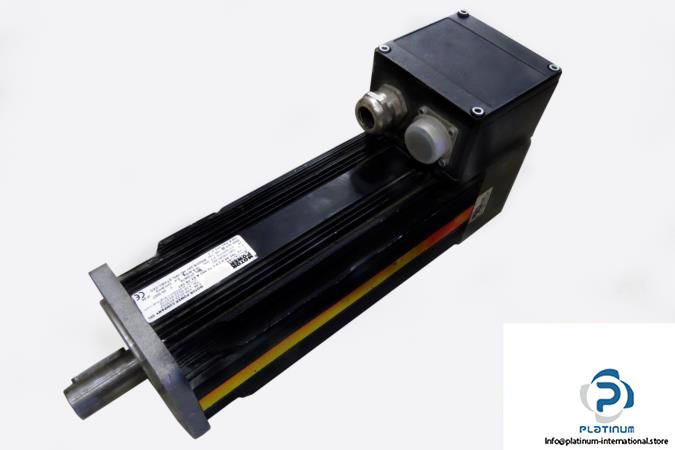

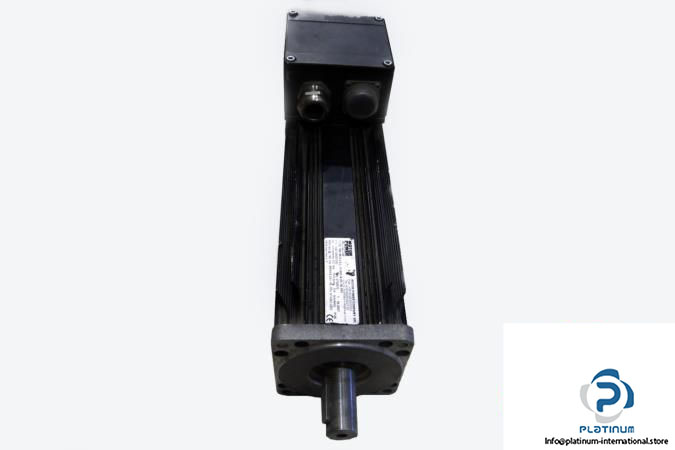

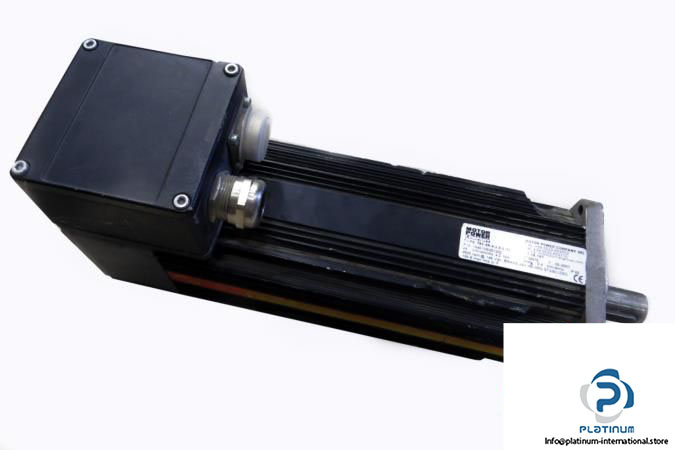

MOTOR POWER T85.SR.4.2.E.L.12.003.A.02.18.101 TETRA SERVO MOTOR
This precision-engineered servo motor from Motor Power is ideal for industrial automation, offering smooth sinewave motion control, high speed, and a robust low-inertia design. Engineered with IP65 protection and encoder feedback, it supports accurate positioning and reliable operation in demanding environments.

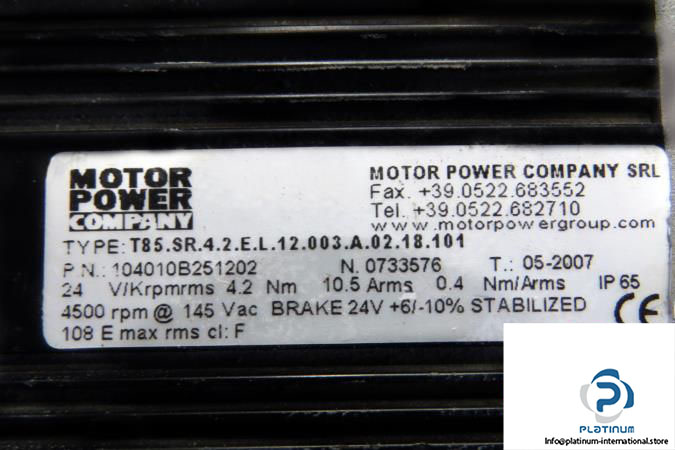

Manufacturer: Motor Power
Type: Tetra Servo Motor
Model: T85.SR.4.2.E.L.12.003.A.02.18.101
MRN: 104010B251202
Ref no: 0733576
| Waveform | Sinewave |
| Transducer Type | Encoder |
| Moment of Inertia | Low |
| Transducer Model | Encoder dia 48, 4p, 2000 ppr |
| Nominal Torque | 4.2 Nm |
| Speed | 4500 rpm |
| Voltage | 145 Vac |
| Voltage Constant | 24 V/KRPMRMS |
| Rated Current | 2.5 A |
| Poles Number | 4 |
| Operating Temperature | 0 / +40 °C |
| Protection Degree | IP65 |
| Brake Rated Voltage | 24 V |
