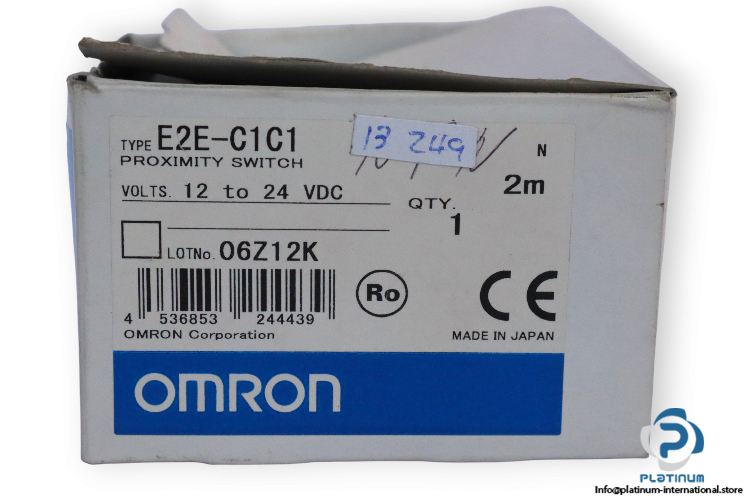

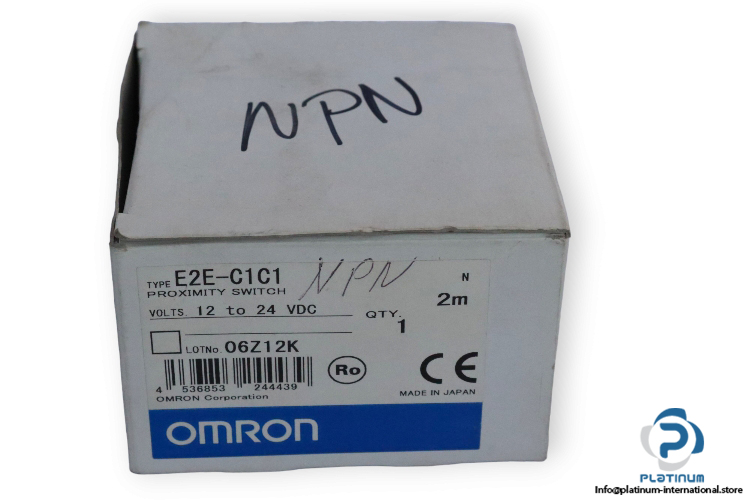

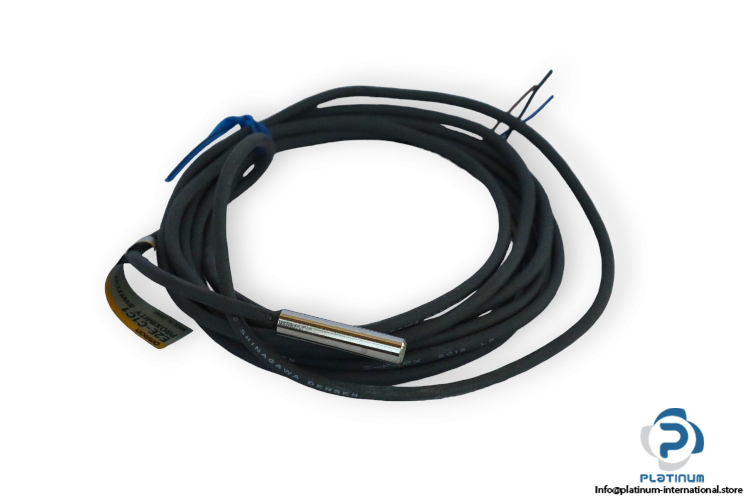

Omron E2E-C1C1 Miniature Cylindrical Proximity Sensor

Manufacture: Omron
Type: Miniature Cylindrical Proximity Sensor
Model: E2EC1C1
Part No.: 06Z12K

Sensing Range: 1 mm
Operating Voltage: 12 … 24 V DC
Current consumption: max. 17 mA
Output type: NPN
Contact: Normally open
Sensing object: Magnetic metals
Standard object: 8 x 8 x 1 mm
Indicators: Operation indicator (red LED)
Housing Material: Nickel-plated brass
Degree of protection (IP): IP67
Operating Temperature: -25 … 70°C
Dimensions: 5.4 x 25 x 5.4 mm
