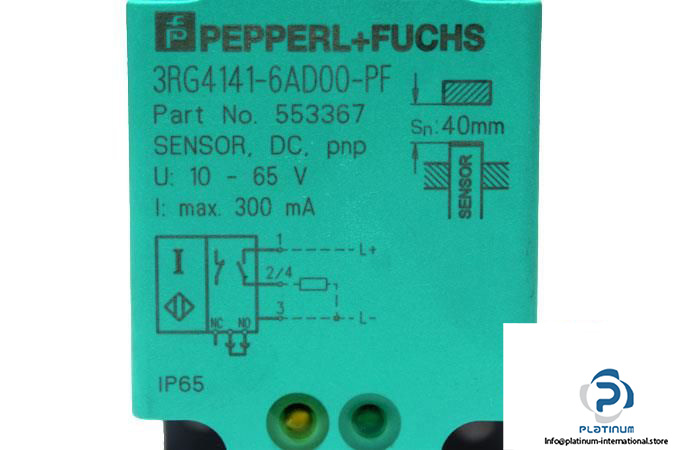

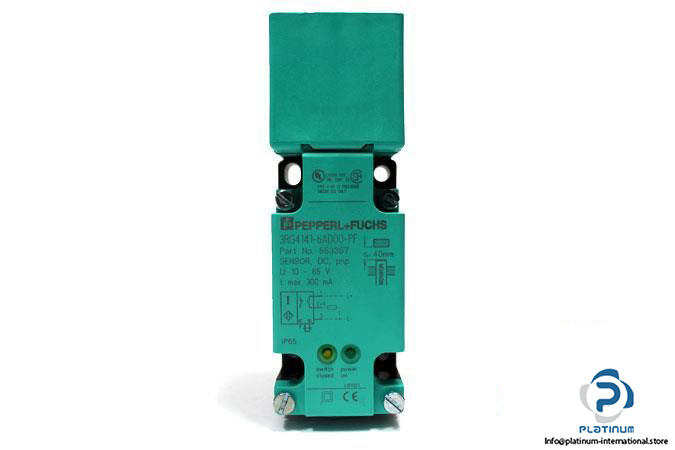

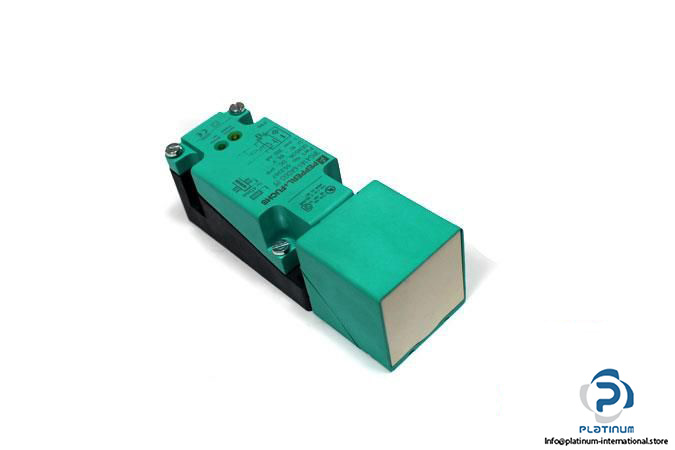

Pepperl+Fuchs 3RG4141-6AD00-PF Inductive Proximity Switch

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: INDUCTIVE PROXIMITY SWITCH

Model No.: 3RG41416AD00PF

Part No.: 553367

Rated operating distance: 40 mm

Assured operating distance: 36 … 44 mm

Time delay before availability: 100 ms

Operating Voltage: 10 … 65 V DC

Operating Current: 300 mA

Switching frequency: 20 Hz

Electrical design: PNP

Switching output: Normally open or normally closed

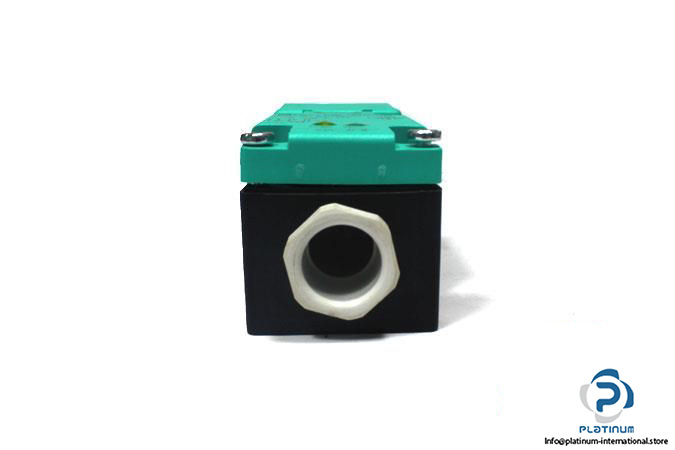

Connector type: Terminal Compartment

Protection class: II

Enclosure rating: IP65

Ambient Operating temperature:-25 …. 70°C

Dimensions: 40 x 40 x 120 mm

Housing material: PBT

Mounting: Non-flush mountable

Weight: 0.32 Kg

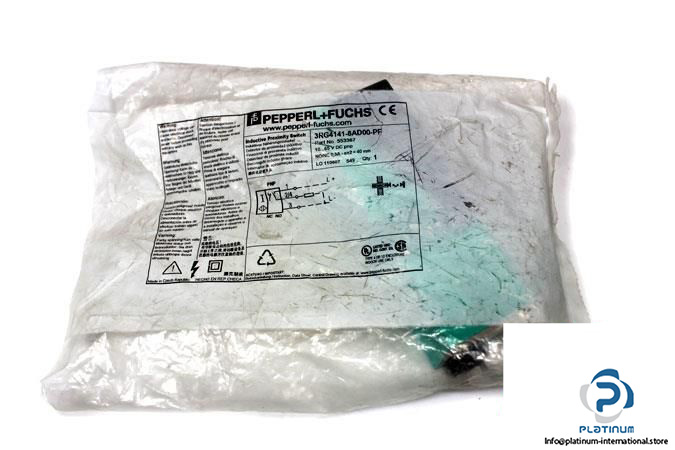

Condition: New
