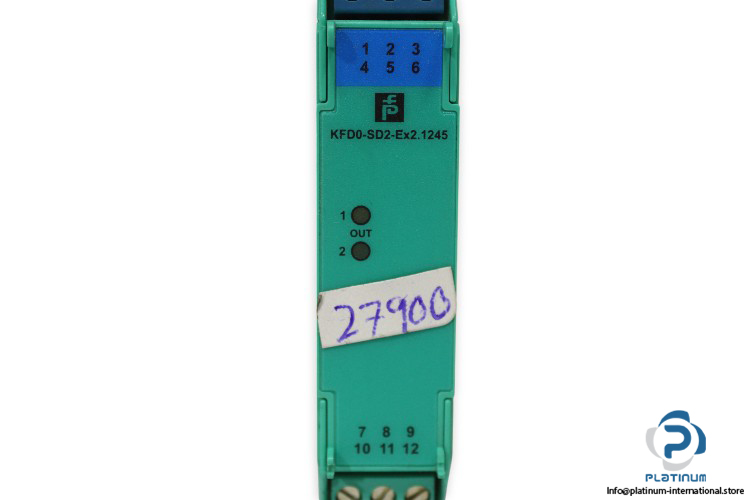

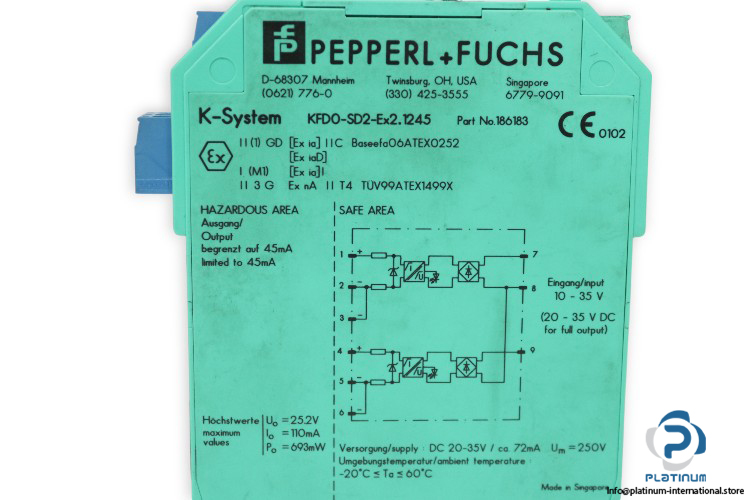

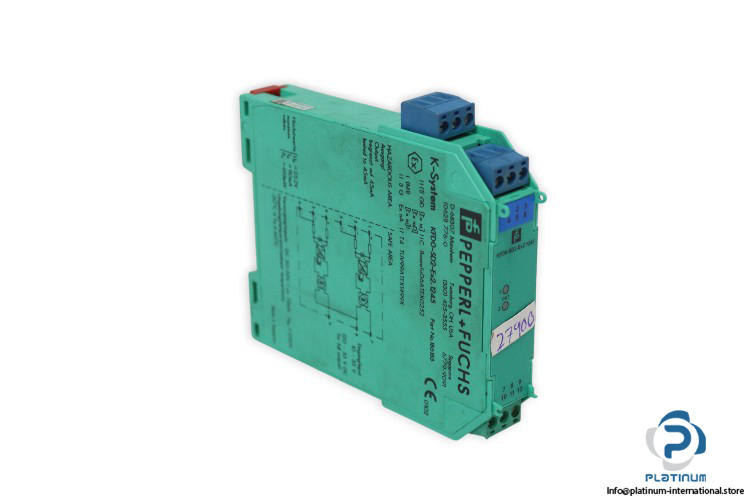

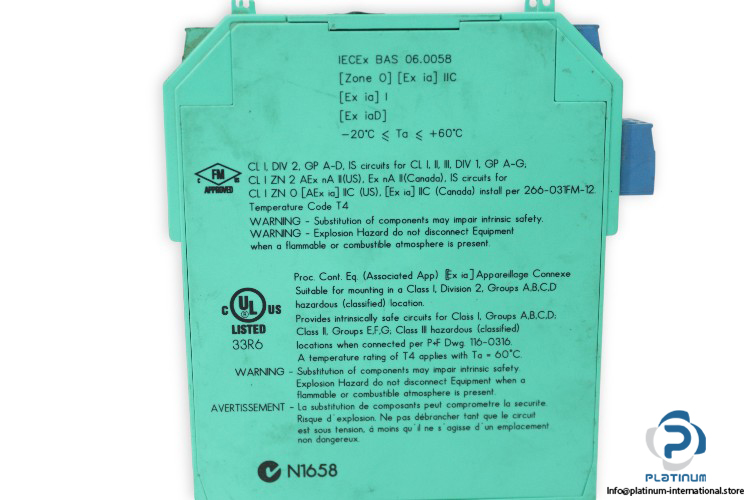

Pepperl+Fuchs KFD0-SD2-EX2.1245 Solenoid Driver
for digital output control. Compact, IP20-rated device with reliable signal interface for industrial automation systems.
Manufacturer: PEPPERL+FUCHS
Type: Solenoid Driver
Model: KFD0-SD2-EX2.1245
Part No.: 186183
MNR: 6779-9091
The PEPPERL+FUCHS solenoid driver KFD0-SD2-EX2.1245 is a high-quality interface device designed for digital output applications in hazardous and industrial environments. It delivers precise and reliable signal transmission from control systems to field devices.
Technical Specifications:
- Signal Type: Digital Output
- Input (Control Side):
- Rated Voltage Ur: 18 … 30 V DC
- Inrush Current: 200 mA
- Output (Field Side):
- Internal Resistor Ri: 236 Ω
- Current Ie: 45 mA
- Voltage Ue: 12 V
- Degree of Protection: IP20
- Connection Type: Screw Terminals
- Ambient Temperature Range: -40 … 60 °C
- Dimensions (W x H x D): 20 x 119 x 115 mm
Ideal for integration into process automation systems where reliability and safety are paramount.
