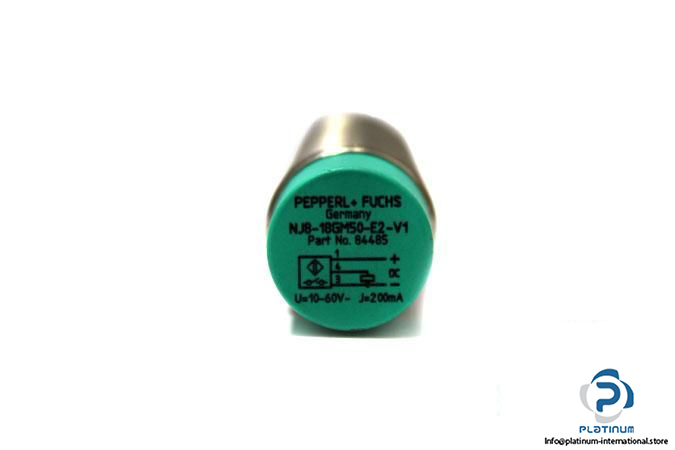

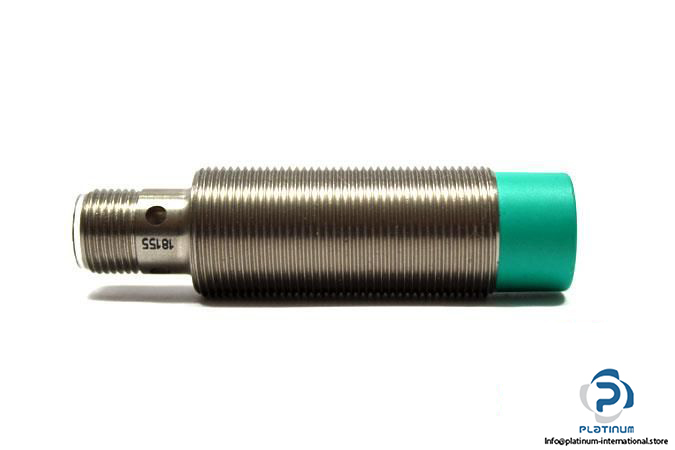

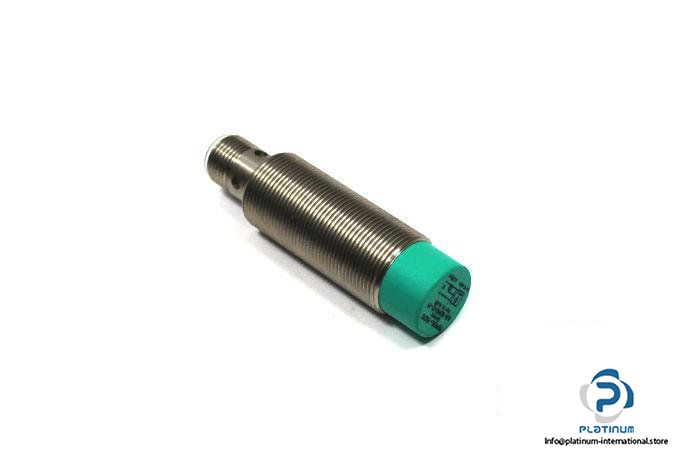

Pepperl+Fuchs NJ8-10GM50-E2-V1 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ818GM50E2V1

Part No.: 84485

Rated operating distance: 8 mm

Assured operating distance: 0 … 6.48 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching frequency: 0 … 1000 Hz

Electrical design: PNP

Switching output: Normally open

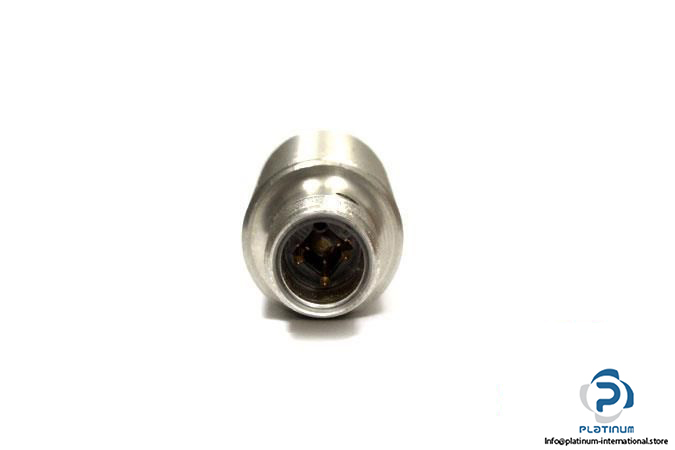

Connector type: M12, 3-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 18, 50 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Non-flush mountable

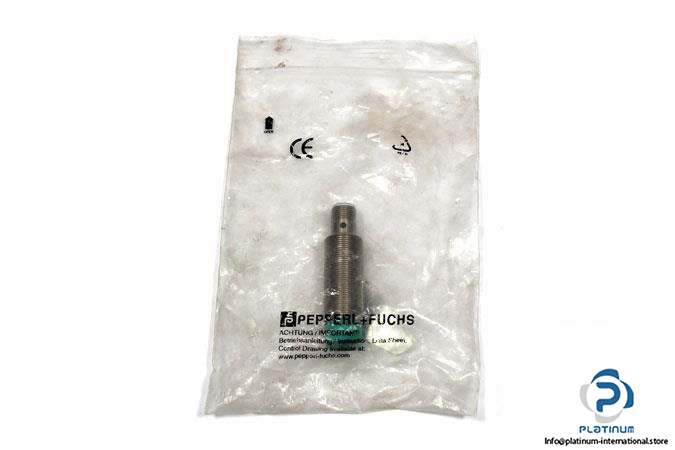

Condition: New
