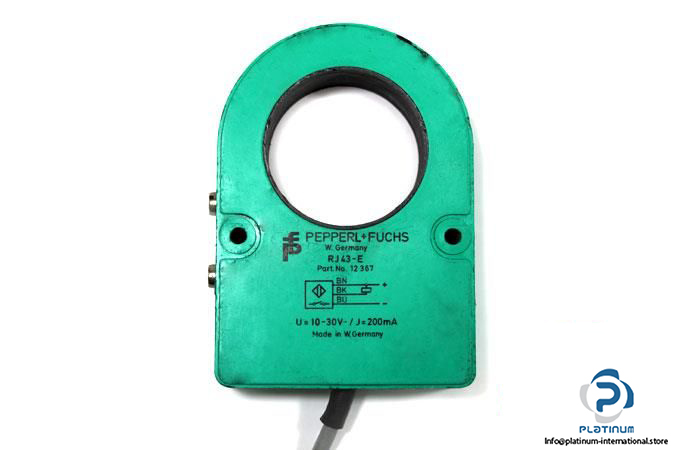

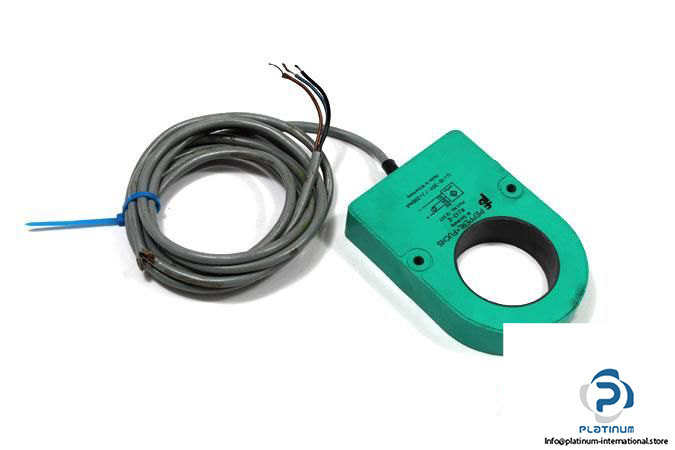

Pepperl+Fuchs RJ43-E Inductive Ring Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE RING SENSOR

Model No.: RJ43E

Inside diameter: 43 mm

Measuring cylinder Diameter: 9 mm

Measuring cylinder length: 18 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 0 … 500 Hz

Electrical design: NPN

Switching output: Normally open

Connector type: PVC Cable, 2 m

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Housing material: PBT

Condition: Used
