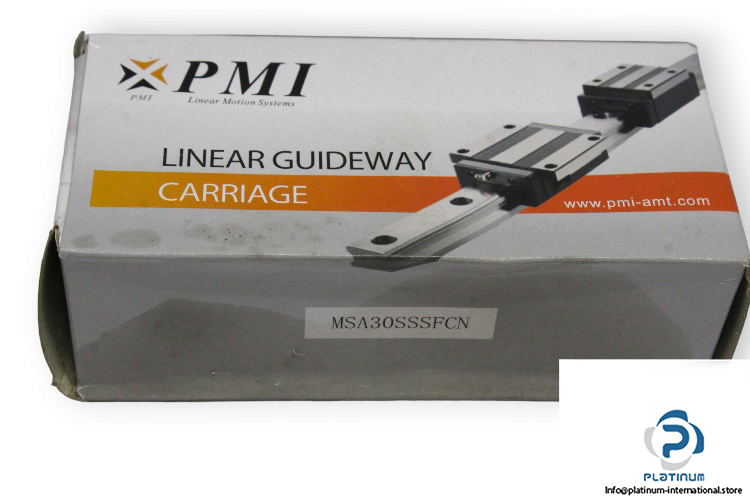

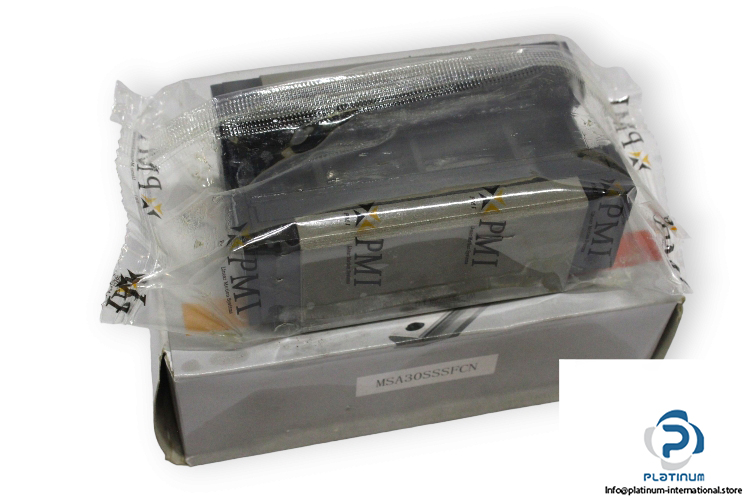

PMI MSA30SSSFCN Linear Guideway Block

Manufacturer: PMI
Type: Linear Guideway Block
Model: MSA 30 SSSFCN

Size: 30 mm
Carriage type: Heavy load, S: Square type
Preload grade: FC; Light preload
Basic Load Ratings:
Dynamic C: 39.2 kN
Static C₀: 57.8 kN
Accuracy Grade: N, Normal
Dimensions:
Height system H: 45 mm
Width carriage W: 60 mm
Overall length carriage L: 111.2 mm
L₁: 71.4 mm
B: 40 mm
C: 40 mm
Contamination Protection: SS; Bidirectional end seal+Bottom seal
