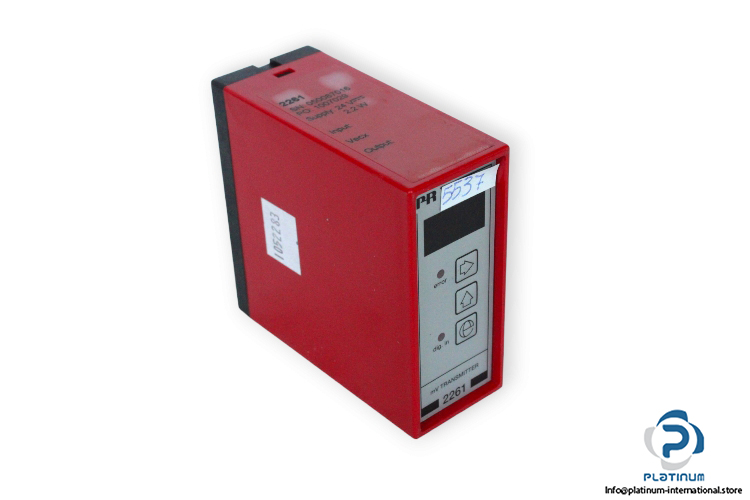

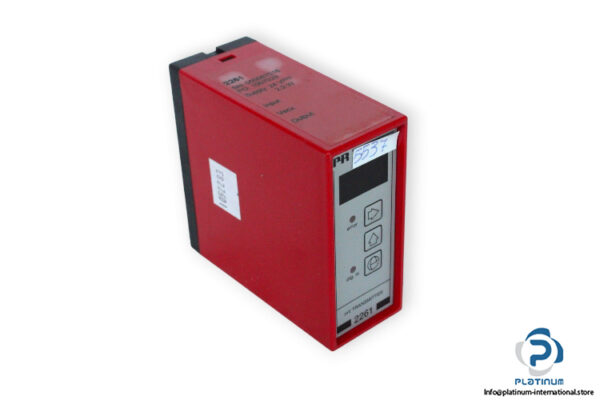

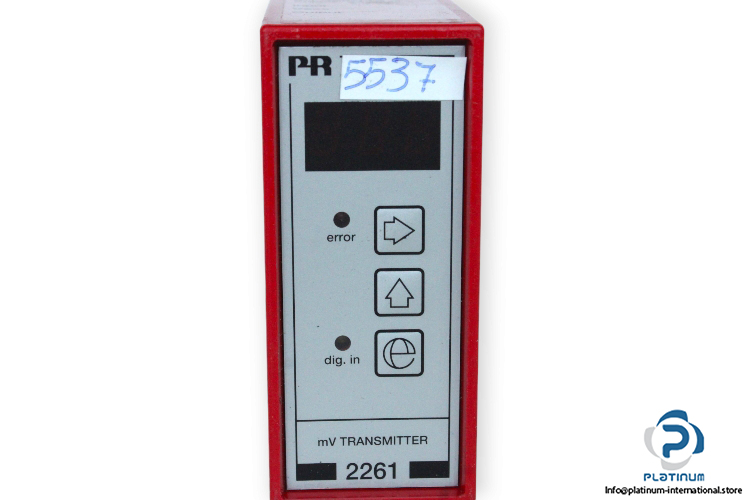

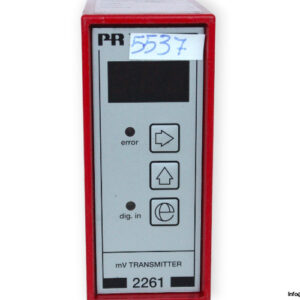

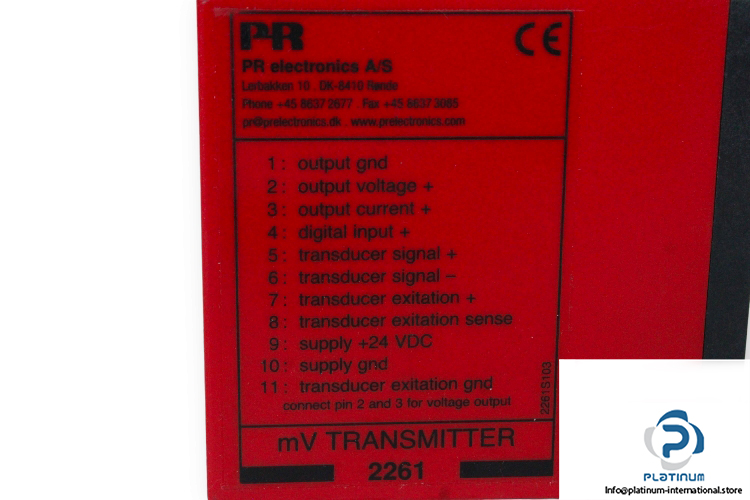

PR 2261 MV Transmitter

Manufacturer: PR
Type: mV Transmitter

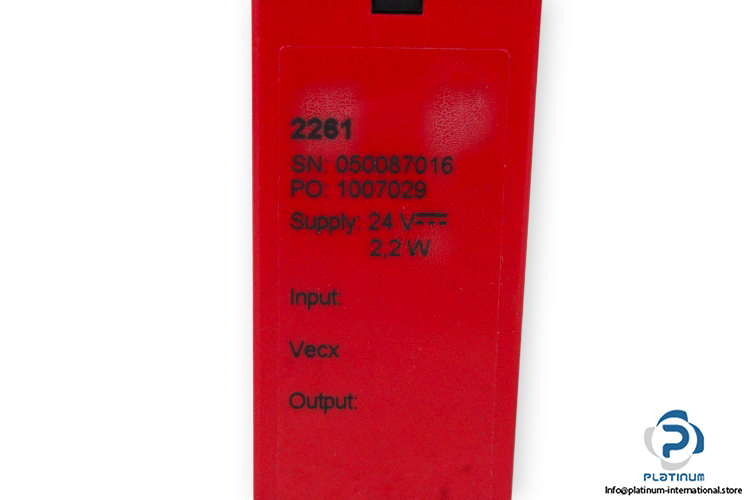

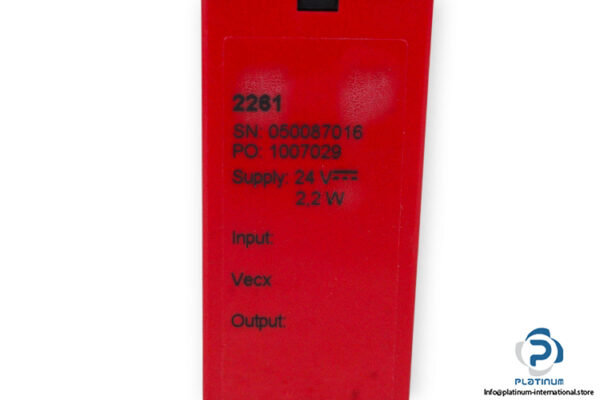

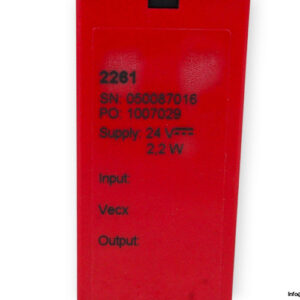

PO No.: 1007029
Part No.: 2261

Supply voltage: 19.2…28.8 VDC
Max. required power: 7.2 W
Internal power dissipation: 2.2 W
Response time
Response time (programmable): 0.06…999 s
Signal / noise ratio: Min. 60 dB
Updating time: 20 ms
Signal dynamics, input: 17 bit
Signal dynamics, output : 16 bit
Effect of supply voltage change: ±0.002% of span / %V
Temperature coefficient: ±0.01% of span / °C
Auxiliary voltage: Transducer supply: 5…13 VDC
Load (max.): 230 mA
Operating temperature: -20°C to +60°C
Protection Class: IP50
Dimensions (HxWxD): 80.5 x 35.5 x 84.5 mm
