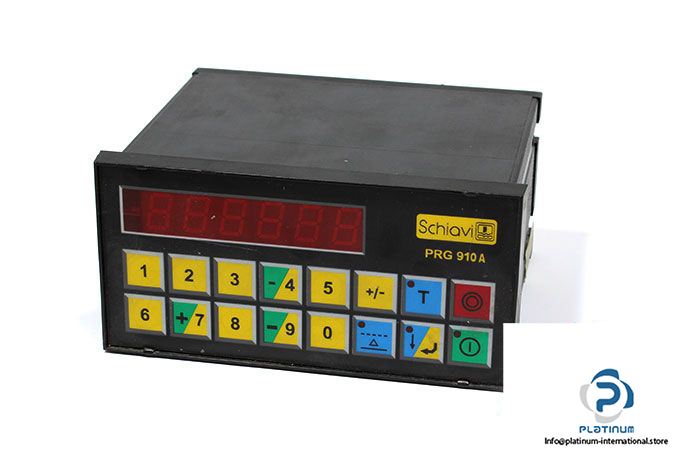

SCHIAVI PRG 910A MONO-AXIS PROGRAMMABLE POSITIONER
The Schiavi PRG 910A is a reliable mono-axis programmable positioner built for precision control in industrial applications. Engineered with advanced CMOS and RISC microcontroller technologies, it ensures efficient and secure operation for automation systems.
Manufacturer: SCHIAVI
Type: Mono-Axis Programmable Positioner
Model: PRG 910A
| Feeding | 24 V c.a. +20% “10% |
| Absorbed Power | 8W |
| Encoder/Optical Line Exit | Stabilized 12 V CC, 100 mA |
| Max. Counting Frequency | 10 KHz with multiplier x4 |
| Relay Control | INCREASE/DECREASE, SLOW/FAST |
| Relay Outputs | O.K. POSITION, QUALIFICATION |
| Input Isolation | Electrical decoupling via photocouplers |
| Display | High-luminosity LED, 6 digits + negative sign |
| Keyboard | Tactile polycarbonate, water/abrasion-proof |
| Electronics | CMOS and RISC Microcontroller Technology |
| Memory | EEPROM for machine constants and totalizer, no battery |
| Power Safety | Power/down supervisor for secure data retention |

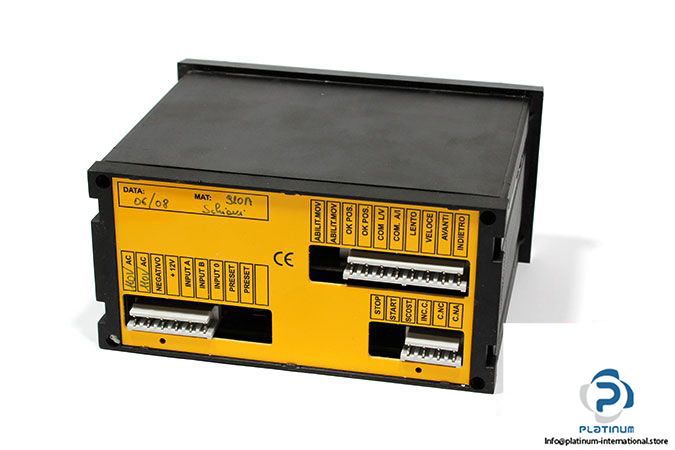

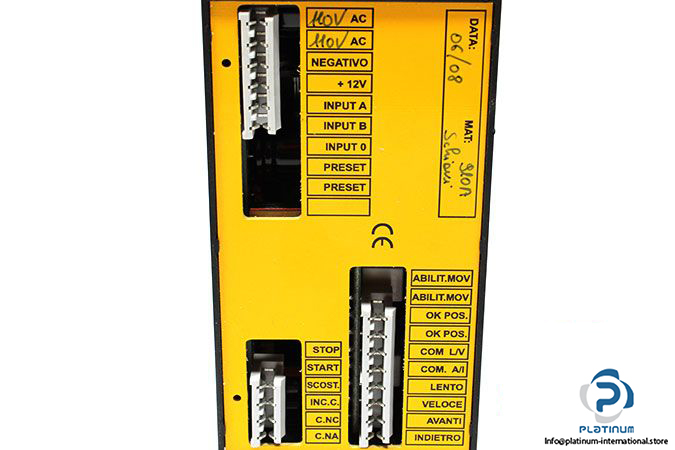

| Terminals | Extractable connections to external circuits |
| Housing | Self-extinguishing VO NORLY 43700 plastic |
| Size | 144×72×125 mm (DIN standard) |
| Panel Drilling Measures | 138×68 mm |
