Schneider Electric ATV340U22N4 Variable Speed Drive
Kullanılmış
Stokta1 birimSevkiyata hazır
Variable Speed Drive
SCHNEIDER ELECTRIC Altivar ATV340 variable speed drive for three-phase motors, offering advanced I/O control, flexible configuration, and reliable performance for industrial automation systems.(VSD)AltivarATV340ATV340U22N4AutomationDriveElectricIndustrialInvertermotorPhaseSchneiderSpeedthreeVariable
Yeni
Stokta 499,99$
Bu ürün ayrıca yeni olarak da mevcuttur
Yeni Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

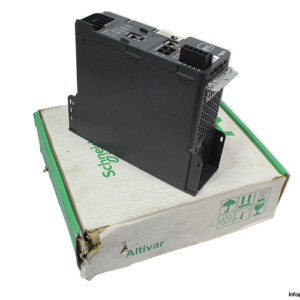

SCHNEIDER ELECTRIC ATV340U22N4 Variable Speed Drive
The SCHNEIDER ELECTRIC ATV340U22N4 variable speed drive from the Altivar Machine ATV340 range is designed for advanced machine control applications. It delivers precise motor control, flexible I/O configuration, and reliable performance for both normal and heavy-duty industrial operations.
Manufacturer: SCHNEIDER ELECTRIC
Type: Variable Speed Drive
Model: ATV340U22N4
Part No.: 096689
Range: Altivar Machine ATV340
Series: ATV71
| Rated Supply Voltage | 3 Phase 380 / 480 V AC |
| Nominal Output Current | 5.6 A |
| Motor Power | 3 kW (Normal Duty) |
| Motor Power | 2.2 kW (Heavy Duty) |
| Horse Power Rating | 3 hp (Normal Duty) |
| Horse Power Rating | 3 hp (Heavy Duty) |
| Discrete Input Number | 5 |
| Discrete Input Type | PTI programmable as pulse input 0 / 30 kHz, 24 V DC / 30 V |
| Discrete Input Type | DI1 / DI5 Safe Torque Off, 24 V DC / 30 V, 3.5 kOhm programmable |
| Number of Preset Speeds | 16 |
| Discrete Output Number | 2 |
| Discrete Output Type | Programmable outputs DQ1, DQ2, 30 V DC, 100 mA |
| Analogue Input Number | 2 |
| Analogue Input Type | AI1 configurable current 0 / 20 mA, 250 Ohm, 12 bits |
| Analogue Input Type | AI1 configurable temperature probe or water level sensor |
| Analogue Input Type | AI1 configurable voltage 0 / 10 V DC, 31.5 kOhm, 12 bits |
| Analogue Input Type | AI2 configurable voltage -10 / 10 V DC, 31.5 kOhm, 12 bits |
| Analogue Output Number | 1 |
| Analogue Output Type | Configurable voltage AQ1 0 / 10 V DC, 470 Ohm, 10 bits |
| Analogue Output Type | Configurable current AQ1 0 / 20 mA, 500 Ohm, 10 bits |
| Relay Output Number | 2 |
| Relay Output Type | R1A / R1C, 100000 cycles |
| Relay Output Type | R2A / R2C, 100000 cycles |
| Connector Type | 1 x RJ45 |
| Number of Addresses | 1 / 247 |
| Protection Class | IP20 |
| Ambient Temperature | -40 / 70 °C |
| Dimensions | 260 x 155 x 187 mm |
